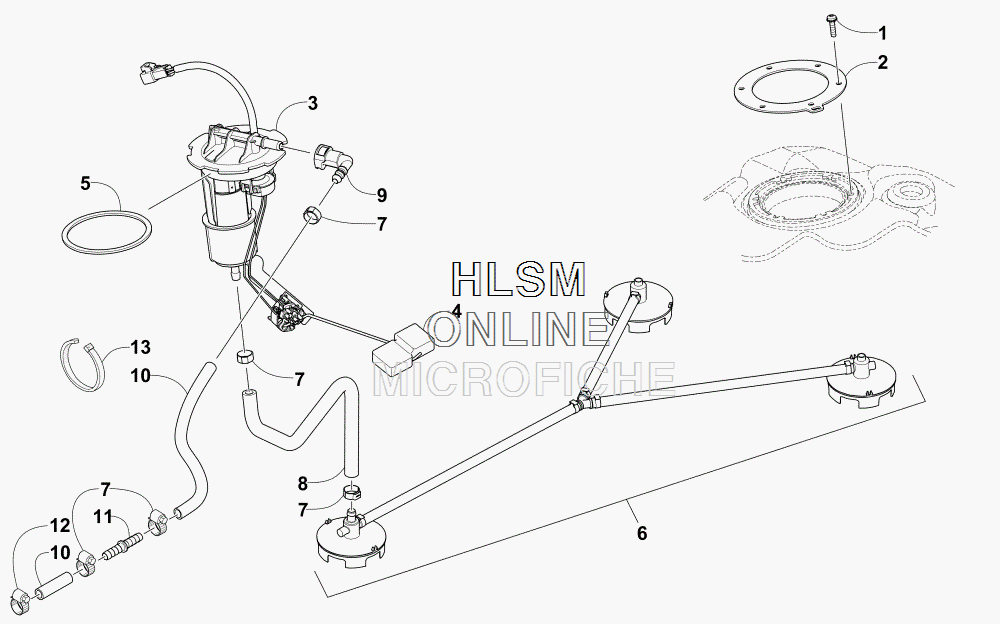

FUEL PUMP ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-898 SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS
    SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS
  • 2
    2670-042 MOUNT,FUEL PUMP
    MOUNT,FUEL PUMP
  • 3
    2670-472 PUMP, FUEL - ASSEMBLY (INC. 4)
    PUMP, FUEL - ASSEMBLY (INC. 4)
  • 4
    2670-235 ...FLOAT,FUEL PUMP-WALBRO 75-22
    ...FLOAT,FUEL PUMP-WALBRO 75-22
  • 5
    0470-838 SEAL,FUEL-PUMP
    SEAL,FUEL-PUMP
  • 6
    2670-377 PICKUP, FUEL - ASSEMBLY
    PICKUP, FUEL - ASSEMBLY
  • 7
    0610-563 CLAMP, HOSE-13.2MM-15.7MM
    CLAMP, HOSE-13.2MM-15.7MM
  • 8
    2670-442 HOSE, FUEL PUMP/PICKUP
    HOSE, FUEL PUMP/PICKUP
  • 9
    1670-878 FITTING,QUICK CONNECTOR-3/8X5/16X90 DEG
    FITTING,QUICK CONNECTOR-3/8X5/16X90 DEG
  • 10
    0610-691 HOSE, GASLINE - 10 FT
    HOSE, GASLINE - 10 FT
  • 11
    2623-129 FITTING,BRASS-SPLICER-5/16"X5/16"
    FITTING,BRASS-SPLICER-5/16"X5/16"
  • 12
    0623-373 CLAMP,HOSE #4 {6202}
    CLAMP,HOSE #4 {6202}
  • 13
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 13
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
