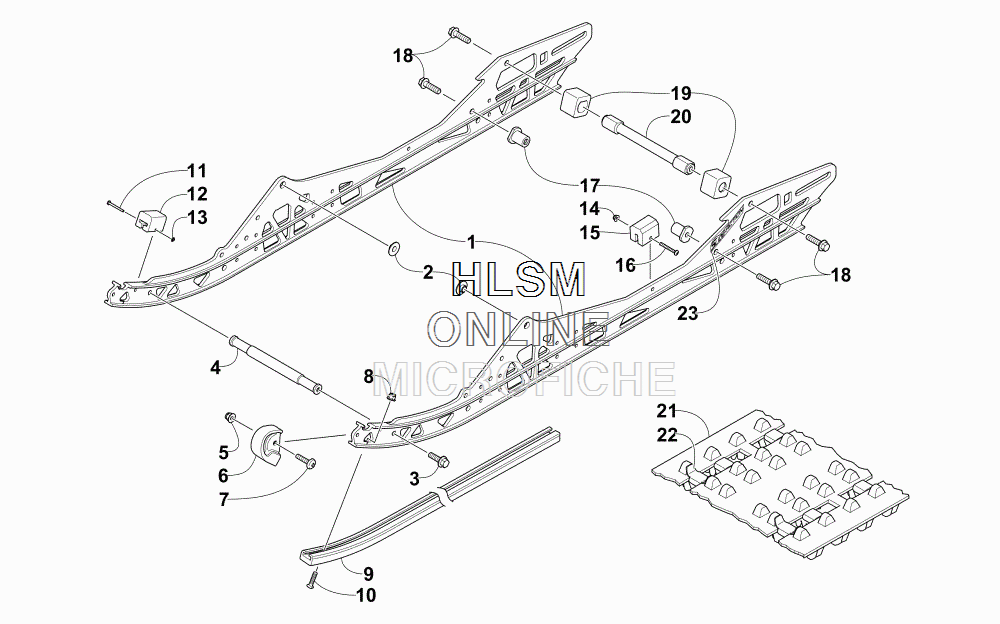

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-625 COMPLETE SKID FRAME ASSEMBLY
    COMPLETE SKID FRAME ASSEMBLY
  • 1
    3604-992 RAIL,SUSPENSION-129"-FORMED/MACH
    RAIL,SUSPENSION-129"-FORMED/MACH
  • 2
    3604-266 INSERT,RAIL-M10 X 25
    INSERT,RAIL-M10 X 25
  • 3
    8408-826 SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
    SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
  • 4
    3604-679 AXLE,XBRC/LMTR-19.94X222.25(M8X1.25) HP
    AXLE,XBRC/LMTR-19.94X222.25(M8X1.25) HP
  • 5
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 6
    3604-003 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 7
    8476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & Y
    SCREW,MACH-TSTRH M6X1.0X25 Z & Y
  • 8
    8047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
    NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
  • 9
    3604-944 WEARSTRIP,SLIDE RAIL-45.12" (BLACK)
    WEARSTRIP,SLIDE RAIL-45.12" (BLACK)
  • 10
    0123-859 SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y
    SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y
  • 11
    0123-767 RIVET,SOLID-1/8 X 1.50
    RIVET,SOLID-1/8 X 1.50
  • 12
    0104-631 PAD,SHOCK-RUBBER
    PAD,SHOCK-RUBBER
  • 13
    0123-766 NUT,PUSH-.125 STUD
    NUT,PUSH-.125 STUD
  • 14
    8427-502 NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
  • 15
    1604-429 PAD,SHOCK-RUBBER
    PAD,SHOCK-RUBBER
  • 16
    8470-540 SCREW,MACH-TSPNH M5X.8X40 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X40 CL8.8 Z & Y
  • 17
    3604-979 BUSHING, STOP - REAR ARM
    BUSHING, STOP - REAR ARM
  • 18
    8413-031 SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
    SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
  • 19
    2604-545 BLOCK, REAR ARM COUPLER
    BLOCK, REAR ARM COUPLER
  • 20
    3604-668 AXLE, XBRC-COUPLER-222.25 (M10X1.25)
    AXLE, XBRC-COUPLER-222.25 (M10X1.25)
  • 21
    2602-575 TRACK ASSEMBLY Q-15X129X1-2.86P (INC. 22)
    TRACK ASSEMBLY Q-15X129X1-2.86P (INC. 22)
  • 22
    2602-383 ...CLIP, GUIDE
    ...CLIP, GUIDE
  • 23
    0621-907 DECAL, "SLIDE ACTION"
    DECAL, "SLIDE ACTION"
