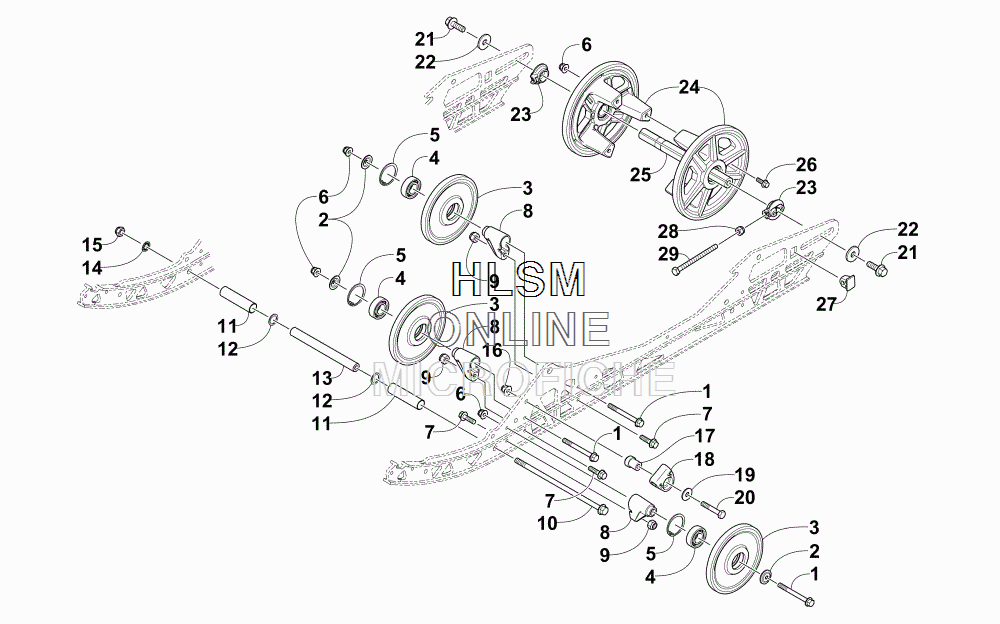

IDLER WHEEL ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8413-675 SCREW,CAP-HFH M6X1.0X75 CL10.9 (SILVER)
    SCREW,CAP-HFH M6X1.0X75 CL10.9 (SILVER)
  • 2
    2623-025 WASHER,STEPPED-6MM ID X 26MM OD-MZ & B
    WASHER,STEPPED-6MM ID X 26MM OD-MZ & B
  • 3
    3604-039 WHEEL, IDLER-5.63 W.787"ID (BLACK) (NO SPOKE) (INC. 4-5)
    WHEEL, IDLER-5.63 W.787"ID (BLACK) (NO SPOKE) (INC. 4-5)
  • 4
    3604-033 ...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE
    ...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE
  • 5
    0623-946 ...RING,INTERNAL RETAINING-#165
    ...RING,INTERNAL RETAINING-#165
  • 6
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 7
    8413-620 SCREW,CAP-HFH M6X1.0X20 CL10.9 (SILVER)
    SCREW,CAP-HFH M6X1.0X20 CL10.9 (SILVER)
  • 8
    3604-899 BLOCK, MOUNTING - IDLER WHEEL
    BLOCK, MOUNTING - IDLER WHEEL
  • 9
    8422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
    NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
  • 10
    1423-064 BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)
    BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)
  • 11
    3604-083 SPACER,FRONT ARM SHOCK
    SPACER,FRONT ARM SHOCK
  • 12
    0623-912 WASHER,FLAT-.890 X 1.19 X .060 Z & Y
    WASHER,FLAT-.890 X 1.19 X .060 Z & Y
  • 13
    3604-269 AXLE,ALUM-22.2 X 222.2
    AXLE,ALUM-22.2 X 222.2
  • 14
    1623-992 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 15
    8422-002 NUT,HEX-THK NYL M10X1.25 CL8 Z & Y
    NUT,HEX-THK NYL M10X1.25 CL8 Z & Y
  • 16
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 17
    3604-204 BLOCK,SLIDE-SPRING-PM-1.20"
    BLOCK,SLIDE-SPRING-PM-1.20"
  • 18
    2604-515 SLIDE, SPRING-SHORT
    SLIDE, SPRING-SHORT
  • 19
    8450-133 WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z & Y
    WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z & Y
  • 20
    8408-855 SCREW,CAP-HFH M8X1.25X55 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X55 CL8.8 Z & Y
  • 21
    8413-031 SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
    SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
  • 22
    1623-931 WASHER,FLAT-ALUM-M10X29
    WASHER,FLAT-ALUM-M10X29
  • 23
    3604-641 BUSHING,ADJUSTER-REAR WHEEL
    BUSHING,ADJUSTER-REAR WHEEL
  • 24
    3604-643 WHEEL, IDLER-TRI HUB-7.12 W/.787 ID
    WHEEL, IDLER-TRI HUB-7.12 W/.787 ID
  • 25
    3604-640 AXLE,XBRC-REAR WHEEL-215.9MM
    AXLE,XBRC-REAR WHEEL-215.9MM
  • 26
    8408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
  • 27
    3604-647 ADJUSTER,TRACK-8MM-CAST
    ADJUSTER,TRACK-8MM-CAST
  • 28
    8422-802 NUT,HEX-THK NYL M8X1.25 CL8 Z & Y
    NUT,HEX-THK NYL M8X1.25 CL8 Z & Y
  • 29
    1623-682 SCREW,CAP-HH-M8 X 1.25 X 100 Z & Y
    SCREW,CAP-HH-M8 X 1.25 X 100 Z & Y
