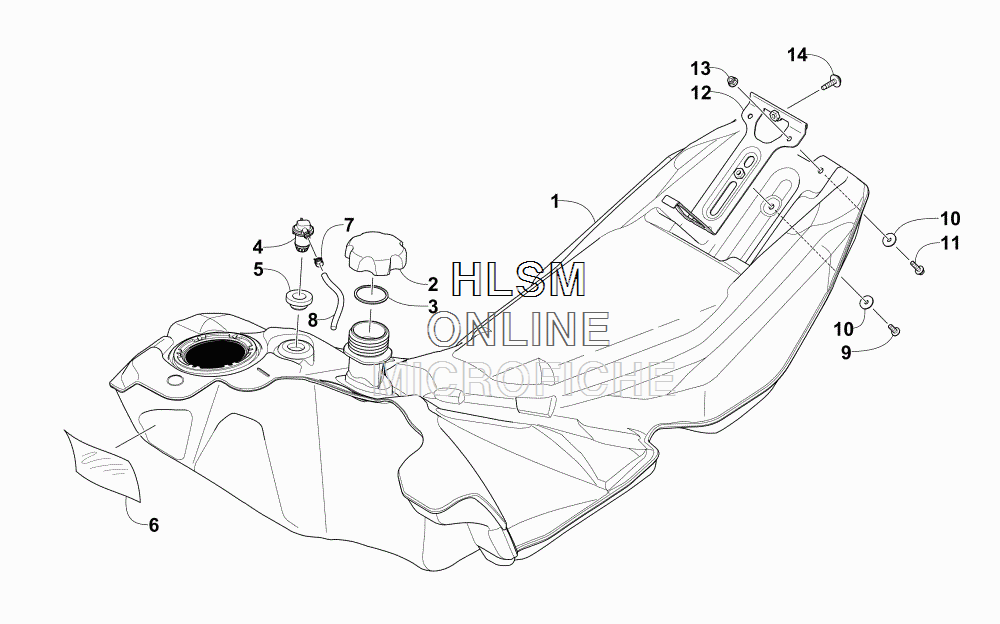

GAS TANK ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • XFUPOSG
    0770-961 TANK, GAS - ASSEMBLY (INC. 2-5)
    TANK, GAS - ASSEMBLY (INC. 2-5)
  • 2
    0470-438 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ......SEAL, TANK CAP
    ......SEAL, TANK CAP
  • 4
    1670-787 ...VALVE, CHECK
    ...VALVE, CHECK
  • 5
    1670-822 ...GROMMET,3/4"-FUEL TANK
    ...GROMMET,3/4"-FUEL TANK
  • 6
    0619-206 FOIL, PROTECTIVE - 30 FT
    FOIL, PROTECTIVE - 30 FT
  • 7
    1623-233 CLAMP, HOSE-10.41MM ID
    CLAMP, HOSE-10.41MM ID
  • 8
    6101-009 HOSE, GASLINE - 50 FT
    HOSE, GASLINE - 50 FT
  • 8
    6101-001 HOSE, GASLINE - 100 FT
    HOSE, GASLINE - 100 FT
  • 9
    8410-616 SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)
    SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)
  • 10
    8050-223 WASHER,FLAT (STD) 1/4 DIA (BLACK)
    WASHER,FLAT (STD) 1/4 DIA (BLACK)
  • 11
    8410-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 RIE (BLACK)
    SCREW,CAP-HFH M6X1.0X20 CL8.8 RIE (BLACK)
  • 12
    5706-098 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
  • 13
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 14
    0423-609 SCREW,FUEL TANK MOUNT (M6X18 DP)
    SCREW,FUEL TANK MOUNT (M6X18 DP)
