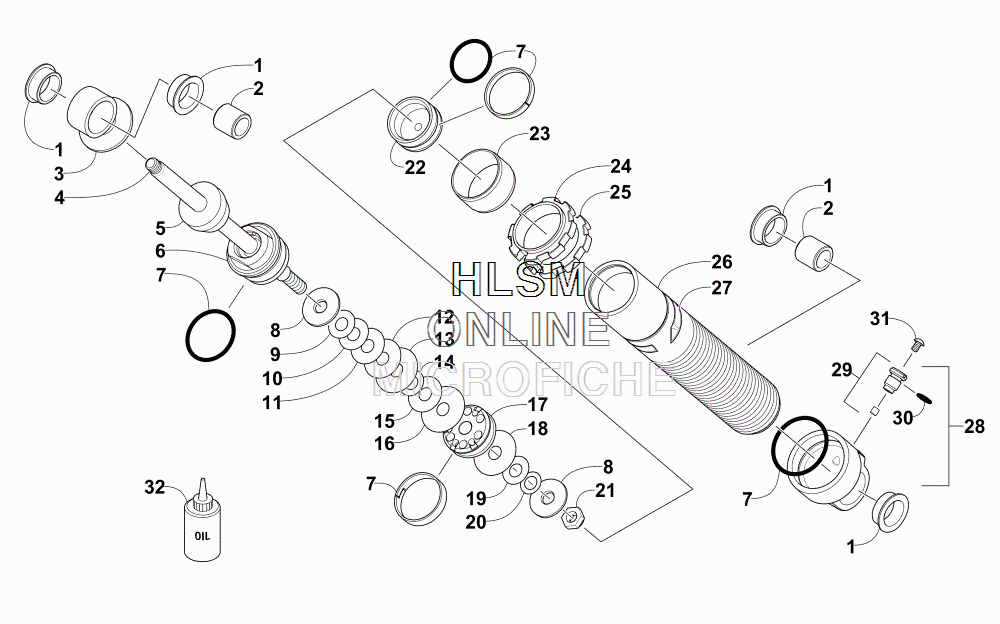

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    3703-112 SHOCK ABSORBER
    SHOCK ABSORBER
  • 1
    3604-738 BUSHING,REAR SHOCK
    BUSHING,REAR SHOCK
  • 2
    3604-737 SLEEVE - 20.65 OD X 14.5 ID X 24.2
    SLEEVE - 20.65 OD X 14.5 ID X 24.2
  • 3
    2603-020 EYELET,SHOCK-SKI-FORGED
    EYELET,SHOCK-SKI-FORGED
  • 4
    3604-762 SHAFT,CHROME-12.66MM X 220.7MM
    SHAFT,CHROME-12.66MM X 220.7MM
  • 5
    3604-740 BUMPER, SHOCK - NBR70
    BUMPER, SHOCK - NBR70
  • 6
    3604-770 BEARING, END CAP - ASSEMBLY
    BEARING, END CAP - ASSEMBLY
  • 7
    2703-980 KIT, SEAL/REBUILD
    KIT, SEAL/REBUILD
  • 8
    3604-789 WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK
    WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK
  • 9
    3603-105 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 10
    3603-115 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 11
    3603-125 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 12
    3603-145 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 13
    3603-175 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 14
    3603-094 VALVE, 0.700 X 0.008 IN.
    VALVE, 0.700 X 0.008 IN.
  • 15
    3603-124 VALVE, 1.000 X 0.008 IN.
    VALVE, 1.000 X 0.008 IN.
  • 16
    3603-182 VALVE, 1.300 X 0.006 IN.
    VALVE, 1.300 X 0.006 IN.
  • 17
    3604-840 PISTON, 0.181 IN. - ORIFICE
    PISTON, 0.181 IN. - ORIFICE
  • 18
    3603-174 VALVE, 1.250 X 0.008 IN.
    VALVE, 1.250 X 0.008 IN.
  • 19
    3603-106 VALVE, 0.800 X 0.012 IN.
    VALVE, 0.800 X 0.012 IN.
  • 20
    2603-015 VALVE, 0.550 X 0.020 IN.
    VALVE, 0.550 X 0.020 IN.
  • 21
    3604-739 NUT, HEX - 3/8"-24UNF
    NUT, HEX - 3/8"-24UNF
  • 22
    3604-772 PISTON, FLOATING ASSEMBLY
    PISTON, FLOATING ASSEMBLY
  • 23
    3604-773 GUIDE,SPRING-ALUM BODY
    GUIDE,SPRING-ALUM BODY
  • 24
    2603-014 RING,PRELOAD LOCK-SHOULDERED
    RING,PRELOAD LOCK-SHOULDERED
  • 25
    3604-779 COLLAR, LOCKING - ADJUSTER NUT
    COLLAR, LOCKING - ADJUSTER NUT
  • 26
    3604-757 BODY,SHOCK-ALUM-37.20 BORE- 252.3MM
    BODY,SHOCK-ALUM-37.20 BORE- 252.3MM
  • 27
    1621-728 DECAL, WARNING - HIGH PRESSURE
    DECAL, WARNING - HIGH PRESSURE
  • 28
    2704-257 END CAP, SHOCK - ASSEMBLY (INC. 29-30)
    END CAP, SHOCK - ASSEMBLY (INC. 29-30)
  • 29
    3604-751 ...VALVE, PRESSURE - ASSEMBLY (INC. 30)
    ...VALVE, PRESSURE - ASSEMBLY (INC. 30)
  • 30
    3604-733 ......O-RING, BLEED SCREW- 7.65 X 1.78
    ......O-RING, BLEED SCREW- 7.65 X 1.78
  • 31
    3604-750 SCREW.MACH-#8-32 X 5MM-SS
    SCREW.MACH-#8-32 X 5MM-SS
  • 32
    5639-530 SEMI-SYN SHOCK OIL-1 QUART
    SEMI-SYN SHOCK OIL-1 QUART
