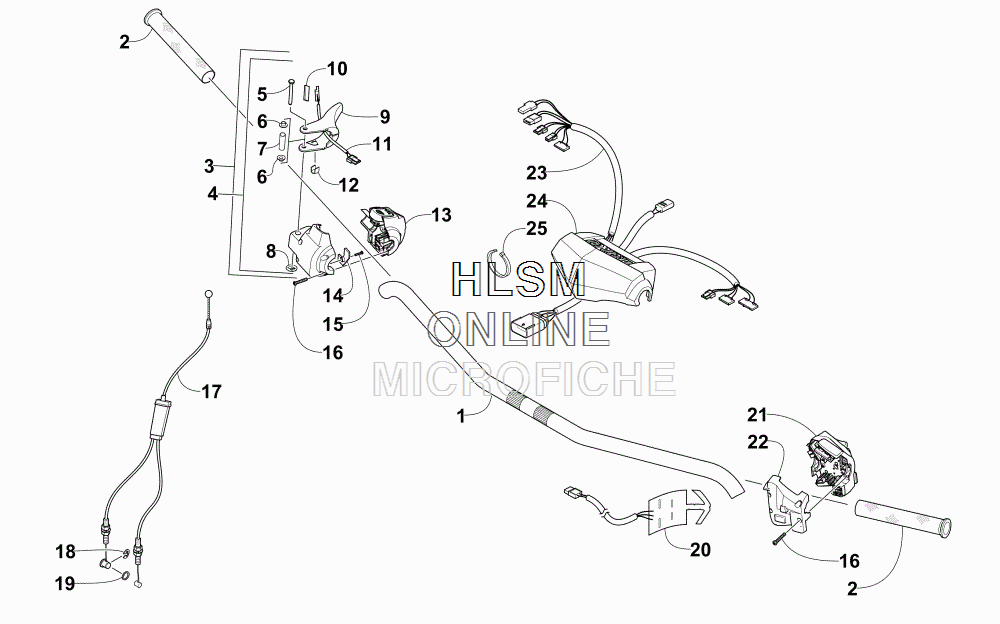

HANDLEBAR AND CONTROLS для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1705-092 HANDLEBAR - (BLACK)
    HANDLEBAR - (BLACK)
  • 2
    4606-945 GRIP,HANDLEBAR-6.25"
    GRIP,HANDLEBAR-6.25"
  • 3
    0609-882 CONTROL, THROTTLE - REAR (INC. 4-9)
    CONTROL, THROTTLE - REAR (INC. 4-9)
  • 4
    0609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 5-8)
    ...KIT, THROTTLE LEVER MOUNTING (INC. 5-8)
  • 8
    0123-766 ......NUT, PUSH INCLUDED IN KIT
    ......NUT, PUSH INCLUDED IN KIT
  • 9
    0609-795 ...LEVER, THROTTLE-34MM
    ...LEVER, THROTTLE-34MM
  • 10
    0617-248 PAD, INSULATOR-THUMB WARMER
    PAD, INSULATOR-THUMB WARMER
  • 11
    0609-827 ELEMENT,THUMB WARMER-H/L (15V)
    ELEMENT,THUMB WARMER-H/L (15V)
  • 12
    0609-595 CLIP, RETAINING
    CLIP, RETAINING
  • 13
    0609-880 CONTROL, THROTTLE - FRONT
    CONTROL, THROTTLE - FRONT
  • 14
    0609-792 COVER, CONNECTOR
    COVER, CONNECTOR
  • 15
    0609-793 SCREW, #4-24 HI-LO X .50"
    SCREW, #4-24 HI-LO X .50"
  • 16
    0609-791 SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO
    SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO
  • 17
    0687-240 CABLE,THROTTLE
    CABLE,THROTTLE
  • 18
    0124-057 E-RING
    E-RING
  • 19
    0124-056 WASHER
    WASHER
  • 20
    0609-938 ELEMENT, HAND WARMER - RIGHT
    ELEMENT, HAND WARMER - RIGHT
  • 20
    0609-939 ELEMENT, HAND WARMER - LEFT
    ELEMENT, HAND WARMER - LEFT
  • 21
    0609-929 CONTROL, DIMMER - FRONT
    CONTROL, DIMMER - FRONT
  • 22
    0609-883 CONTROL, DIMMER - REAR
    CONTROL, DIMMER - REAR
  • 23
    1686-636 HARNESS, HANDLEBAR
    HARNESS, HANDLEBAR
  • 24
    6606-129 PAD, HANDLEBAR
    PAD, HANDLEBAR
  • 25
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 25
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
