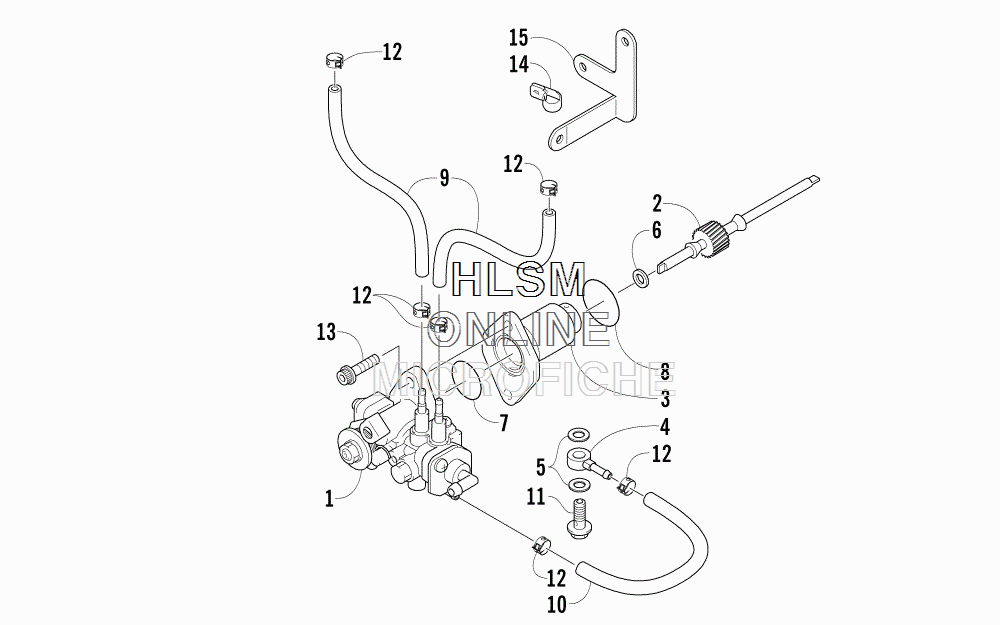

OIL PUMP для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-694 PUMP, OIL W/90° FITTING
    PUMP, OIL W/90° FITTING
  • 2
    3006-354 GEAR, DRIVEN OIL PUMP
    GEAR, DRIVEN OIL PUMP
  • 3
    3004-804 RETAINER, INPUT SHAFT
    RETAINER, INPUT SHAFT
  • 4
    3004-805 VALVE, CHECK
    VALVE, CHECK
  • 5
    3402-009 WASHER, DRIVEN, M6.2X11X1.2
    WASHER, DRIVEN, M6.2X11X1.2
  • 6
    3005-049 SHIM, OIL PUMP SHAFT
    SHIM, OIL PUMP SHAFT
  • 7
    3008-030 O RING O:1.5 ID:19.5
    O RING O:1.5 ID:19.5
  • 8
    3005-126 O-RING
    O-RING
  • 9
    3008-035 HOSE, OIL PUMP
    HOSE, OIL PUMP
  • 10
    3005-357 HOSE, OIL
    HOSE, OIL
  • 11
    3004-346 BOLT, UNION
    BOLT, UNION
  • 12
    3008-037 CLAMP,HOSE,M6
    CLAMP,HOSE,M6
  • 13
    3007-471 BOLT
    BOLT
  • 14
    3005-696 CLAMP
    CLAMP
  • 15
    3007-472 BRACKET,OIL PUMP
    BRACKET,OIL PUMP
