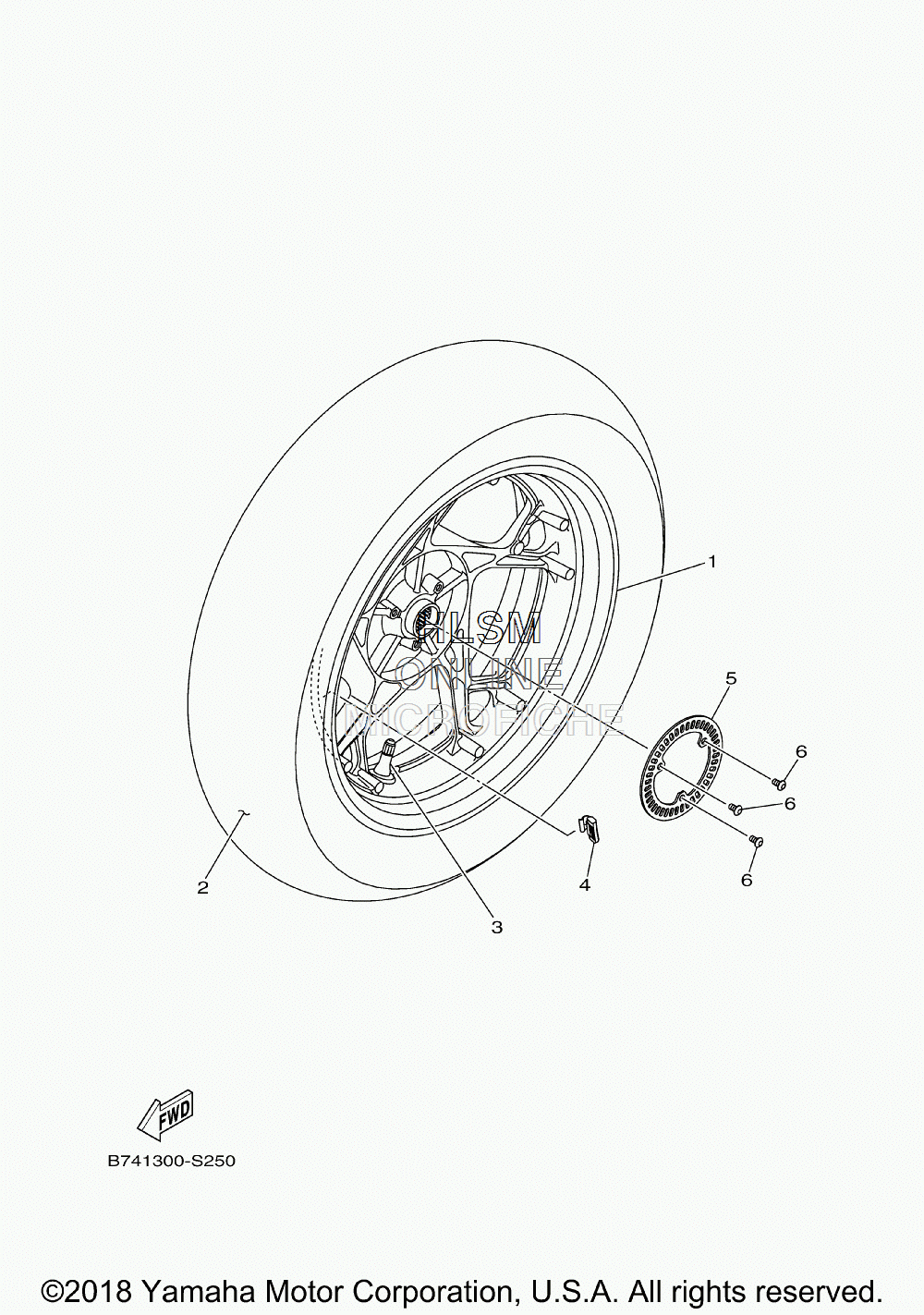

WHEEL - REAR для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-F5338-00-33 CAST WHEEL, REAR (YB - YAMAHA BLACK FOR WM6 - WHITE)CAST WHEEL, REAR (YB - YAMAHA BLACK FOR WM6 - WHITE)
-
294114-14803-00 TIRE (140/70-14 M/C 62P)TIRE (140/70-14 M/C 62P)
-
393900-00828-00 VALVE, RIMVALVE, RIM
-
45MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
45MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
45MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
52DP-F517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
690149-05029-00 SCREWSCREW
