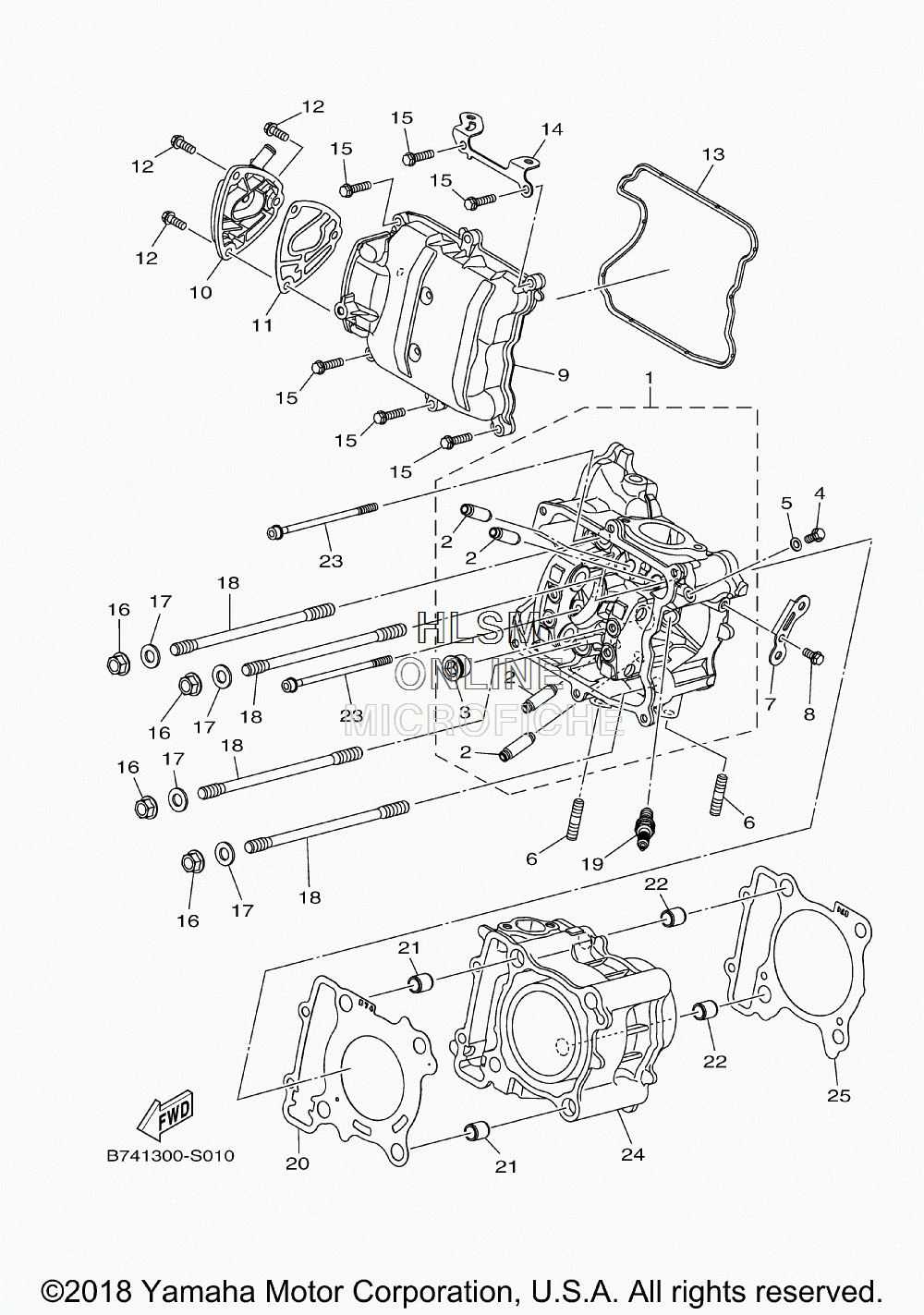

CYLINDER W/ HEAD ASSY. для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-E1102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
2B74-E1133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
390340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
495022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
590430-06014-00 GASKETGASKET
-
695612-08620-00 BOLT, STUDBOLT, STUD
-
7B74-E1998-00-00 BRACKET 1BRACKET 1
-
895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
9B74-E1191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
10B74-E1185-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
11B74-E1169-00-00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
1295022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
13B74-E1193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
14B74-E1999-00-00 BRACKET 2BRACKET 2
-
1595022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1690179-10818-00 NUTNUT
-
1790201-10849-00 WASHER, PLATEWASHER, PLATE
-
18B74-11391-00-00 BOLT, STUD 1BOLT, STUD 1
-
1994700-00436-00 PLUG, SPARK (NGK LMAR8A-9)PLUG, SPARK (NGK LMAR8A-9)
-
20B74-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2199530-14016-00 PIN, DOWELPIN, DOWEL
-
2299530-14016-00 PIN, DOWELPIN, DOWEL
-
2390110-06868-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
24B74-E1311-00-00 CYLINDER 1CYLINDER 1
-
25B74-E1351-00-00 GASKET, CYLINDERGASKET, CYLINDER
