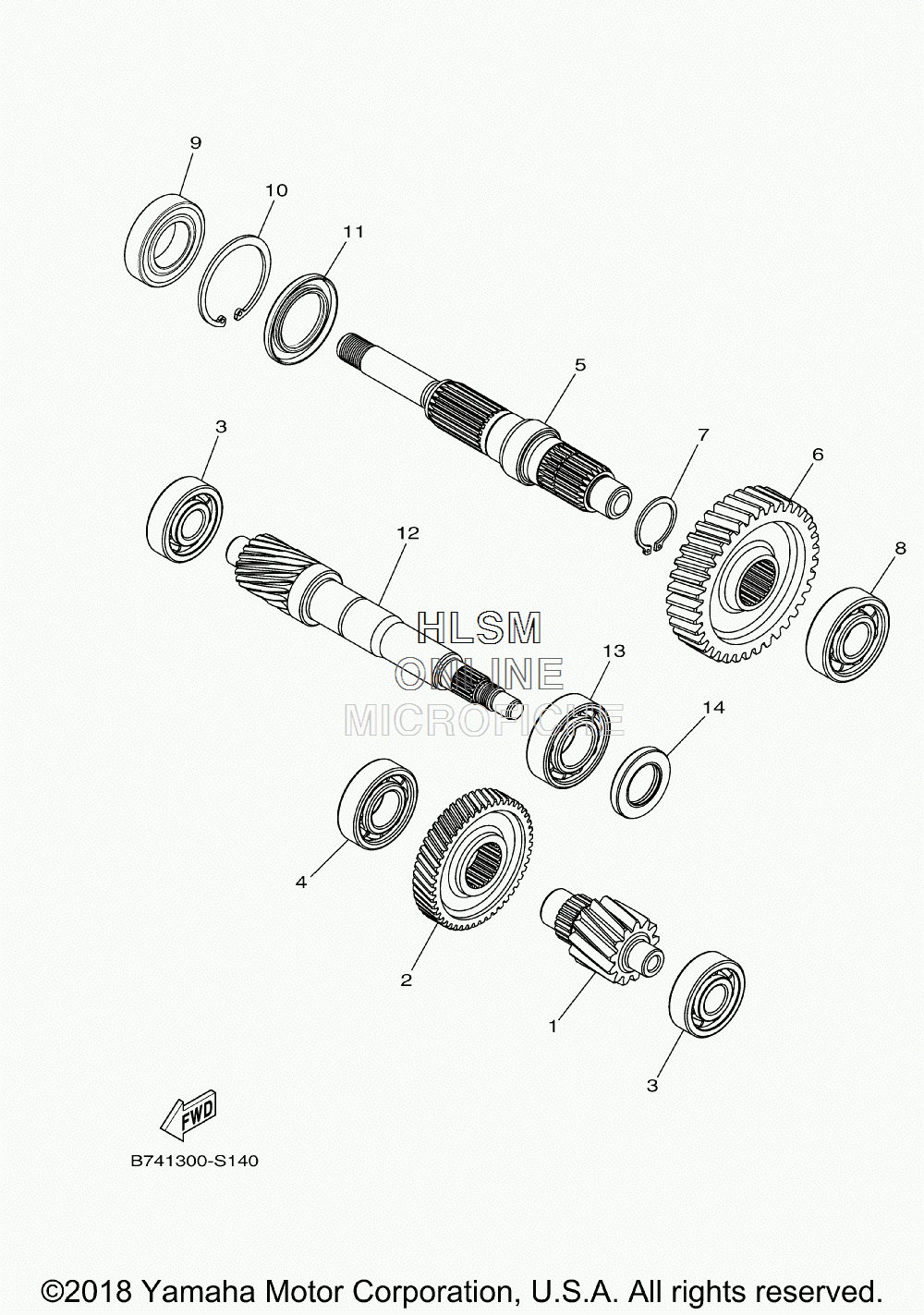

TRANSMISSION для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-17411-00-00 AXLE, MAINAXLE, MAIN
-
2B74-E6151-00-00 GEAR, PRIMARY DRIVEN (48T)GEAR, PRIMARY DRIVEN (48T)
-
393306-303YT-00 BEARINGBEARING
-
493306-272YC-00 BEARINGBEARING
-
5B74-E7421-00-00 AXLE, DRIVEAXLE, DRIVE
-
6B74-E7211-00-00 GEAR, 1ST WHEEL (37T)GEAR, 1ST WHEEL (37T)
-
799009-28400-00 CIRCLIPCIRCLIP
-
893306-304YW-00 BEARINGBEARING
-
993306-078Y1-00 BEARINGBEARING
-
1099009-52500-00 CIRCLIPCIRCLIP
-
1193102-35806-00 OIL SEALOIL SEAL
-
12B74-E6111-00-00 GEAR, PRIMARY DRIVE (18D)GEAR, PRIMARY DRIVE (18D)
-
1393300-205Y0-00 BEARINGBEARING
-
1493102-25826-00 OIL SEALOIL SEAL
