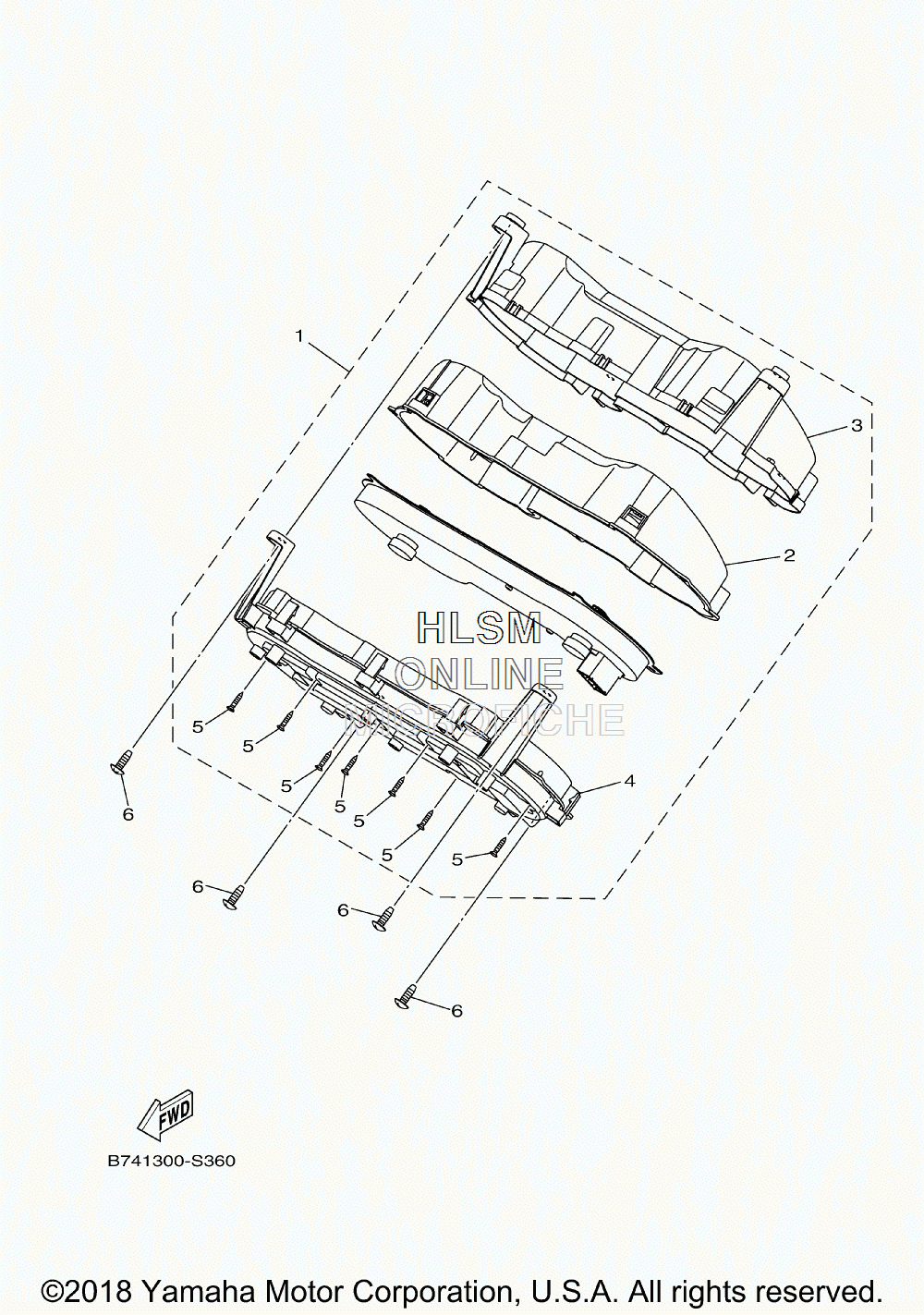

INSTRUMENT PANEL для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-H3500-20-00 METER ASSYMETER ASSY
-
2B74-H353L-00-00 ...REFLECTOR...REFLECTOR
-
3B74-H3511-00-00 ...LENS, SPEEDOMETER...LENS, SPEEDOMETER
-
4B74-H3572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
597702-30016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
