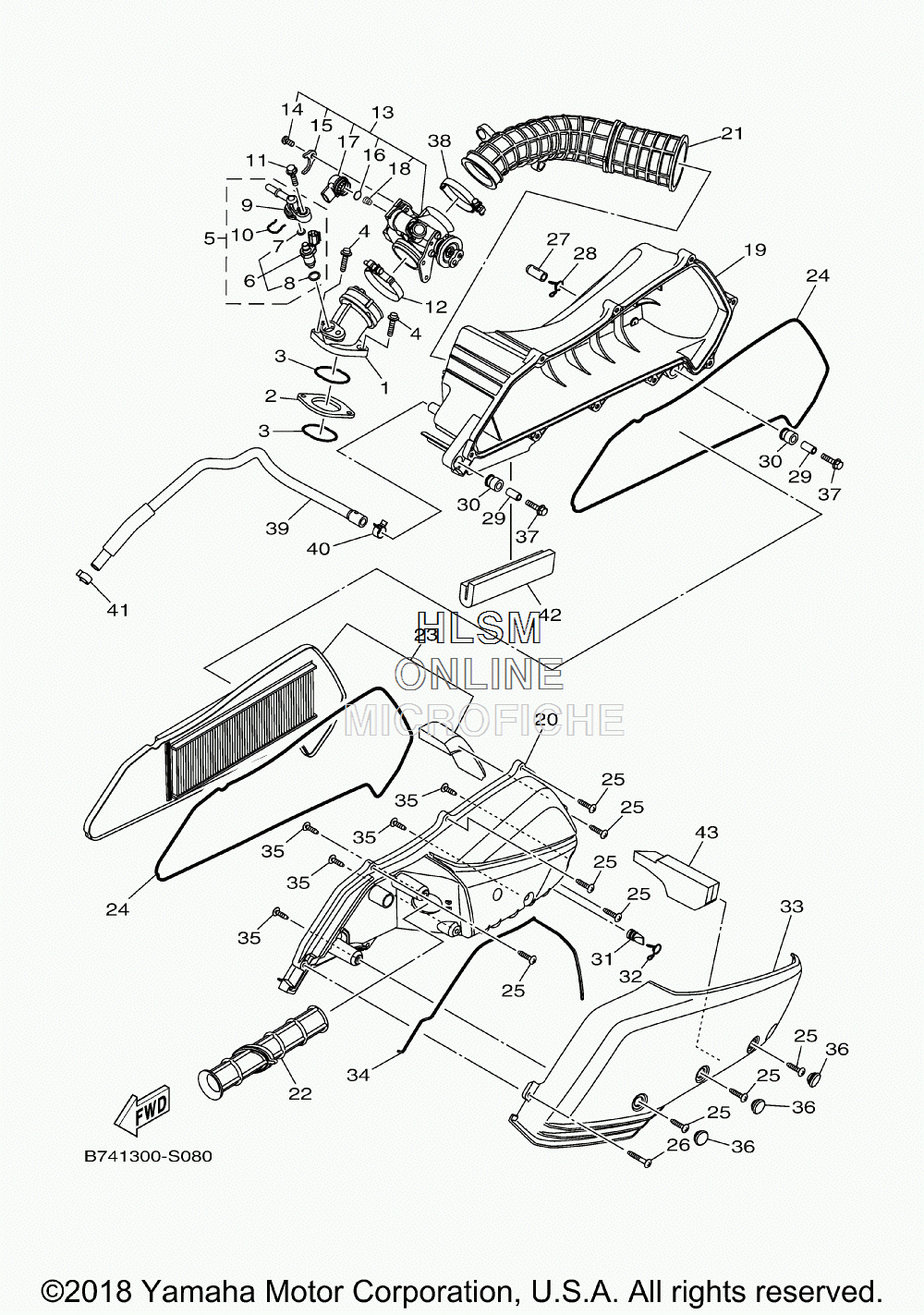

AIR CLEANER ASSY. W/ INTAKE для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-E3585-00-00 MANIFOLDMANIFOLD
-
2B74-E3595-00-00 JOINTJOINT
-
393210-40659-00 O-RINGO-RING
-
490110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5B74-E3770-00-00 INJECTOR ASSYINJECTOR ASSY
-
6B74-E3761-00-00 ...INJECTOR...INJECTOR
-
754P-E4147-00-00 ......O-RING......O-RING
-
85CA-E4147-00-00 ......O-RING......O-RING
-
952S-13938-00-00 ...PIPE...PIPE
-
1054P-E4137-00-00 ...CLIP...CLIP
-
1195812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1290450-56009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
13B74-E3750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
1498502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1554P-E4243-00-00 ...PLATE...PLATE
-
1654P-E416A-00-00 ...O-RING...O-RING
-
17B74-H5801-00-00 ...STEPPING MOTOR...STEPPING MOTOR
-
18B74-E4335-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
19B74-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
20B74-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
21B74-E4469-00-00 FUNNEL, AIRFUNNEL, AIR
-
22B74-E4437-00-00 DUCTDUCT
-
23B74-WE445-00-00 AIR CLEANER ELEMENT ASSYAIR CLEANER ELEMENT ASSY
-
24B74-E4452-00-00 SEALSEAL
-
2597707-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
2697707-50035-00 SCREW, TAPPINGSCREW, TAPPING
-
2752B-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2890467-12809-00 CLIPCLIP
-
29B74-E4449-00-00 COLLARCOLLAR
-
30B74-E4435-00-00 GROMMETGROMMET
-
315TP-E443G-10-00 PIPE, DRAIN 2PIPE, DRAIN 2
-
3290467-12809-00 CLIPCLIP
-
33B74-E4417-00-00 COVER 1COVER 1
-
34B74-E4462-00-00 SEALSEAL
-
3597702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
3690338-14802-00 PLUGPLUG
-
3795812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3890450-52008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
39B74-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
4090467-13808-00 CLIPCLIP
-
4190467-14807-00 CLIPCLIP
-
4290520-10836-00 DAMPER, PLATEDAMPER, PLATE
-
43B74-E447F-00-00 ELEMENT 3ELEMENT 3
