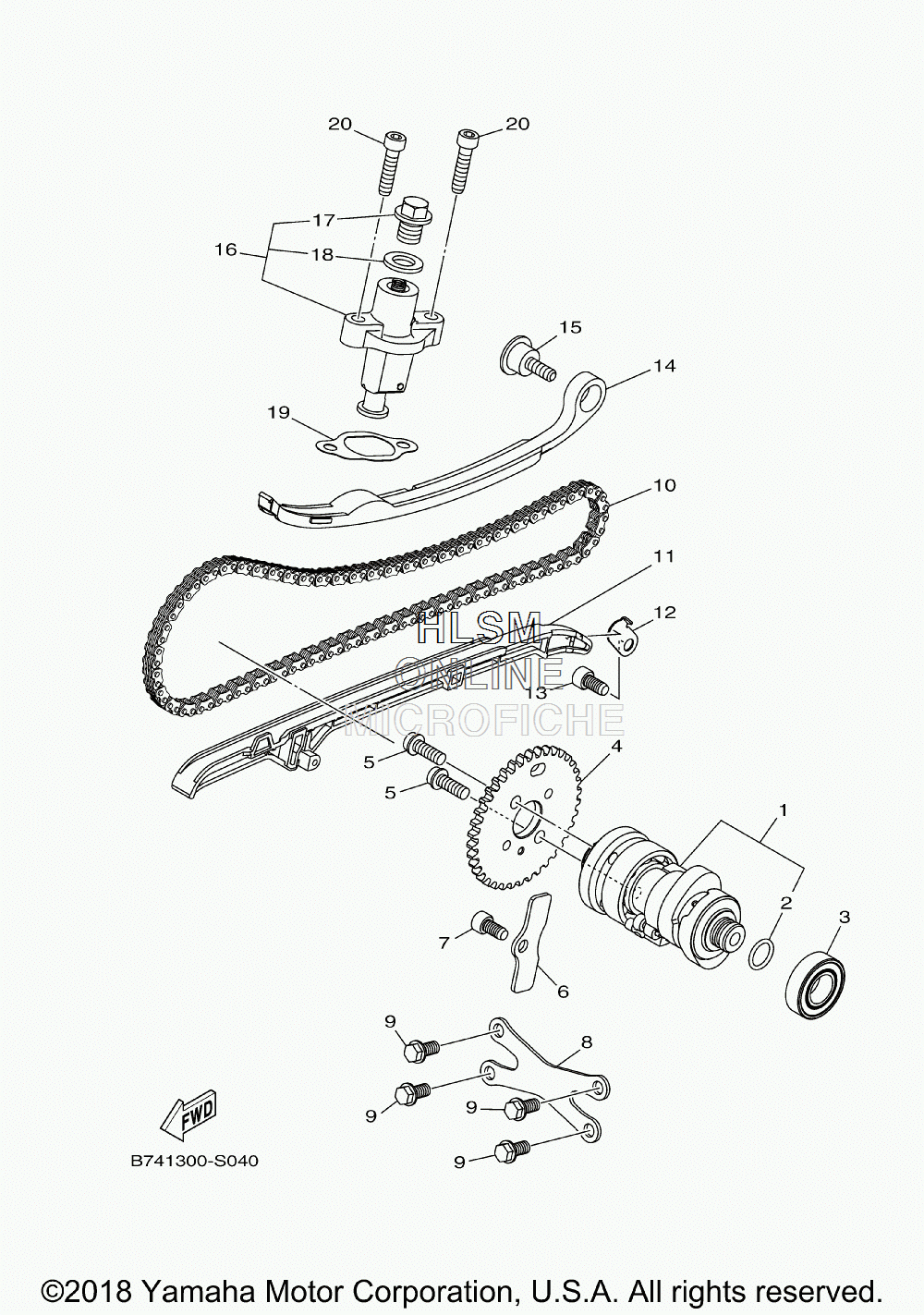

CAMSHAFT W/ CHAIN для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-E2170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
293210-12801-00 ...O-RING...O-RING
-
393306-002XH-00 BEARINGBEARING
-
4B74-E2176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
590110-06405-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6B74-E112F-00-00 PLATE 2PLATE 2
-
790110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
8B74-E111F-00-00 PLATEPLATE
-
995022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1094568-H8110-00 CHAINCHAIN
-
11B74-E2231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
12B74-E2233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
1390110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
14B74-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
151DB-E2228-00-00 BOLTBOLT
-
1631G-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1731G-12222-00-00 ...PLUG...PLUG
-
1831G-12214-00-00 ...GASKET...GASKET
-
19B74-E2213-00-00 CASE, CHAIN TENSIONERCASE, CHAIN TENSIONER
-
2091312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
