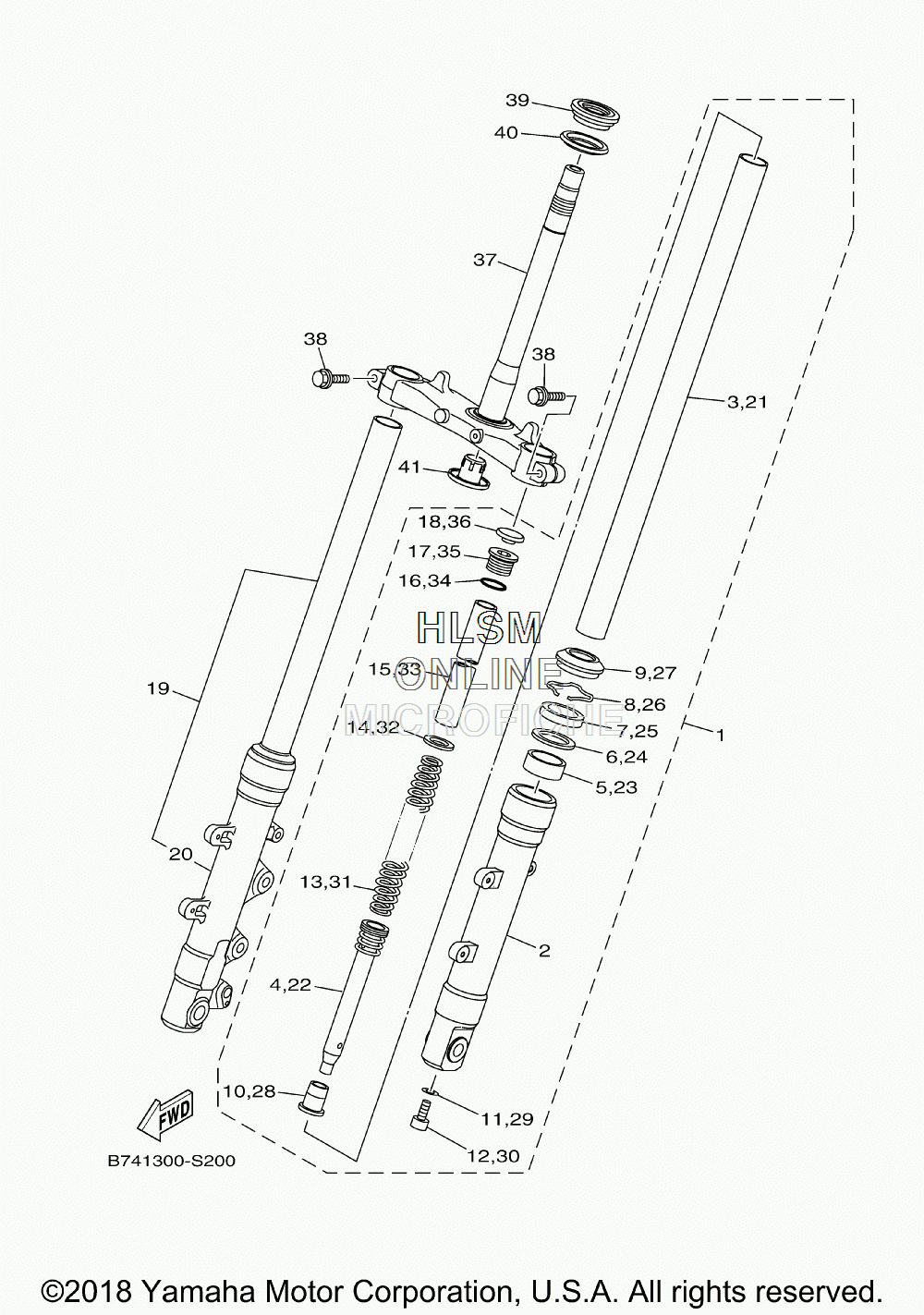

SUSPENSION - FRONT FORK для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-F3102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
2B74-F3126-00-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
3B74-F3110-00-00 ......INNER TUBE COMP.1......INNER TUBE COMP.1
-
4B74-F3170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
54HC-23125-20-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
622W-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
75BP-F3145-00-00 ...OIL SEAL...OIL SEAL
-
822W-F3156-L0-00 ...RING, SNAP...RING, SNAP
-
95BP-F3144-00-00 ...SEAL, DUST...SEAL, DUST
-
102CM-F3166-00-00 ...SPACER, OIL LOCK...SPACER, OIL LOCK
-
112BU-F3158-00-00 ...GASKET...GASKET
-
1231B-F3181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
13B74-F3141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
142JK-F3149-01-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
15B74-F3118-00-00 ...SPACER...SPACER
-
162JK-F3114-00-00 ...GASKET...GASKET
-
175BP-F3111-10-00 ...BOLT, CAP...BOLT, CAP
-
182N4-23168-00-00 ...PLUG...PLUG
-
19B74-F3103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
20B74-F3136-00-00 ...TUBE, OUTER 2...TUBE, OUTER 2
-
21B74-F3110-00-00 ......INNER TUBE COMP.1......INNER TUBE COMP.1
-
22B74-F3170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
234HC-23125-20-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
2422W-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
255BP-F3145-00-00 ...OIL SEAL...OIL SEAL
-
2622W-F3156-L0-00 ...RING, SNAP...RING, SNAP
-
275BP-F3144-00-00 ...SEAL, DUST...SEAL, DUST
-
282CM-F3166-00-00 ...SPACER, OIL LOCK...SPACER, OIL LOCK
-
292BU-F3158-00-00 ...GASKET...GASKET
-
3031B-F3181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
31B74-F3141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
322JK-F3149-01-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
33B74-F3118-00-00 ...SPACER...SPACER
-
342JK-F3114-00-00 ...GASKET...GASKET
-
355BP-F3111-10-00 ...BOLT, CAP...BOLT, CAP
-
362N4-23168-00-00 ...PLUG...PLUG
-
37B74-F3340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
382JK-F3346-00-00 BOLT 1BOLT 1
-
3993399-99932-00 BEARINGBEARING
-
403FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
41B65-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
