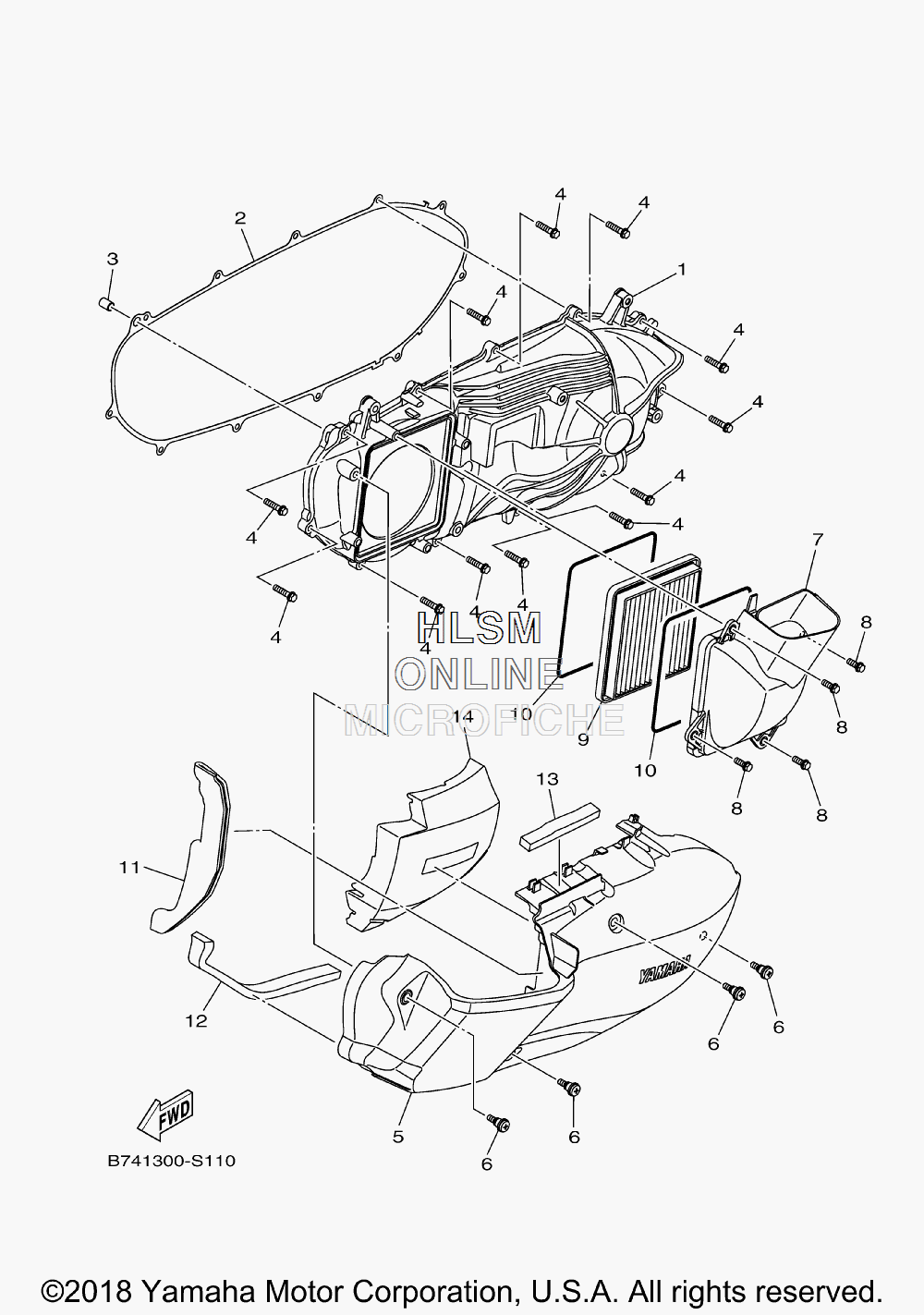

CRANKCASE COVER для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-E5411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
2B74-E5451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
391810-14809-00 PIN, DOWELPIN, DOWEL
-
495022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
5B74-E5431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
62DP-E5481-00-00 BOLT 1BOLT 1
-
7B74-E5471-00-00 DUCT, AIRDUCT, AIR
-
895027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
9B74-E5407-00-00 ELEMENT 1ELEMENT 1
-
10B74-E5474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
1190520-10837-00 DAMPER, PLATEDAMPER, PLATE
-
1290520-20821-00 DAMPER, PLATEDAMPER, PLATE
-
1390520-10835-00 DAMPER, PLATEDAMPER, PLATE
-
14B74-15338-00-00 DAMPER 5DAMPER 5
