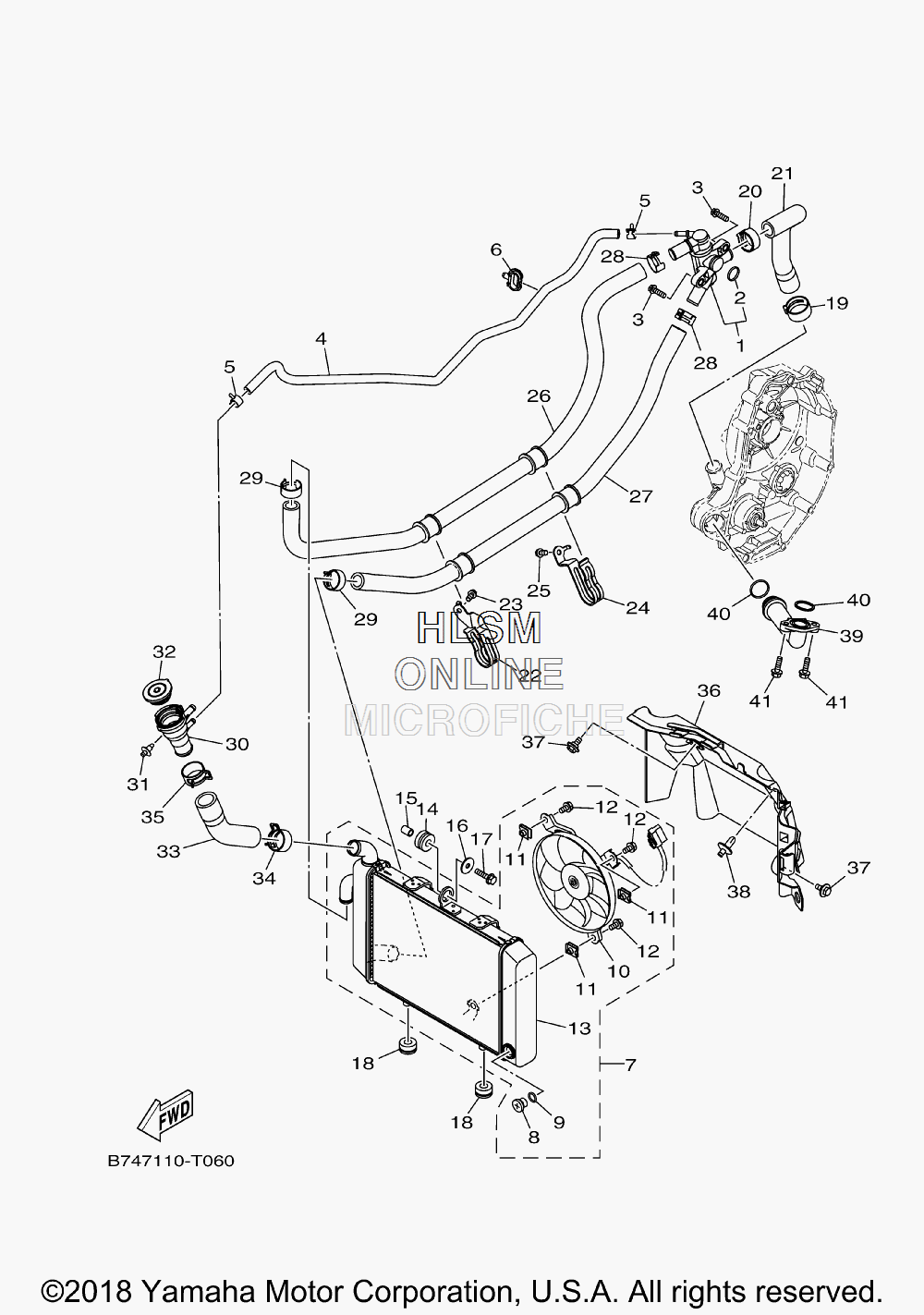

RADIATOR W/ HOSES для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
252S-12439-00-00 ...O-RING...O-RING
-
395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
4B74-E2576-00-00 HOSE 1HOSE 1
-
590467-10038-00 CLIPCLIP
-
690464-10802-00 CLAMPCLAMP
-
7B74-E240A-00-00 RADIATOR ASSYRADIATOR ASSY
-
85ST-E2615-00-00 ...COCK, DRAIN...COCK, DRAIN
-
95ST-E2843-00-00 ...O-RING...O-RING
-
10B74-E2405-00-00 ...BLOWER ASSY...BLOWER ASSY
-
111WD-E2671-00-00 ...NUT 1...NUT 1
-
125GJ-12675-00-00 ...BOLT, BLOWER HOLDING...BOLT, BLOWER HOLDING
-
13B74-E2461-00-00 ...RADIATOR COMP...RADIATOR COMP
-
1490480-15483-00 GROMMETGROMMET
-
1590387-064W3-00 COLLARCOLLAR
-
1690201-06033-00 WASHER, PLATEWASHER, PLATE
-
1795827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1890480-14818-00 GROMMETGROMMET
-
1990467-22002-00 CLIPCLIP
-
2090467-24800-00 CLIPCLIP
-
21B74-E2481-00-00 PIPE 1PIPE 1
-
22B74-F1823-00-00 CLAMP, HOSECLAMP, HOSE
-
2395022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
24B74-F2591-00-00 CLAMP, HOSECLAMP, HOSE
-
2595022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
26B74-E2482-00-00 PIPE 2PIPE 2
-
27B74-E2483-00-00 PIPE 3PIPE 3
-
2890467-20805-00 CLIPCLIP
-
2990467-21801-00 CLIPCLIP
-
30B74-E2591-00-00 SUPPORT, FILLER NECKSUPPORT, FILLER NECK
-
3190269-07007-00 RIVETRIVET
-
32B65-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
33B74-E2484-00-00 PIPE 4PIPE 4
-
3490467-250A1-00 CLIPCLIP
-
3590467-26131-00 CLIPCLIP
-
36B74-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
3790109-06887-00 BOLTBOLT
-
3890269-06816-00 RIVETRIVET
-
39B74-E2446-00-00 JOINTJOINT
-
4093210-22800-00 O-RINGO-RING
-
4195827-06020-00 BOLT, FLANGEBOLT, FLANGE
