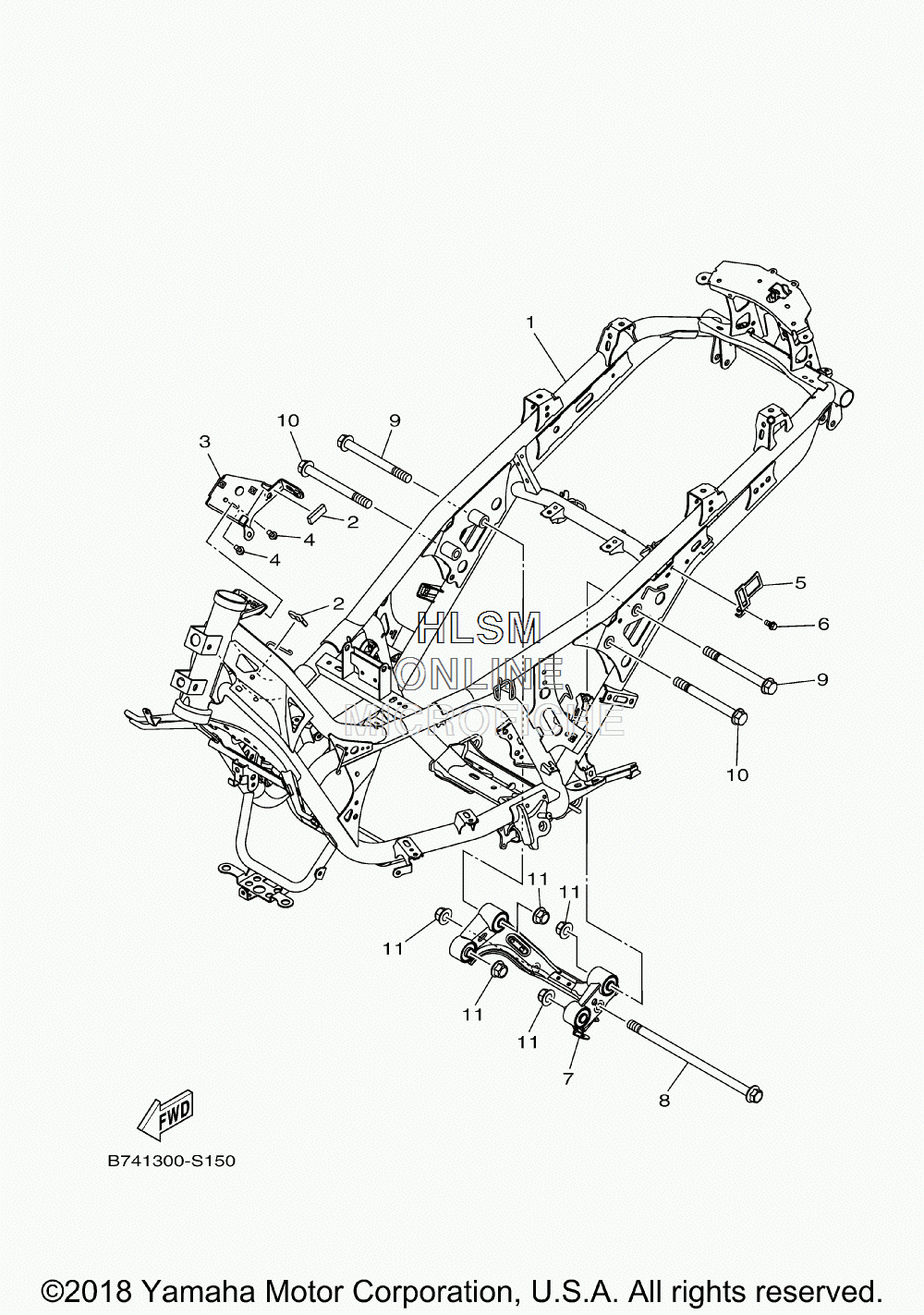

FRAME для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-F1110-20-00 FRAME COMP.FRAME COMP.
-
290520-04015-00 DAMPER, PLATEDAMPER, PLATE
-
3B74-H251P-00-00 BRACKET, MAIN SWITCHBRACKET, MAIN SWITCH
-
495022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5B74-F149S-00-00 BRACKET 5BRACKET 5
-
695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
7B74-F1400-01-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
8B74-F2141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
990105-12806-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-12805-00 BOLT, FLANGEBOLT, FLANGE
-
1195602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
