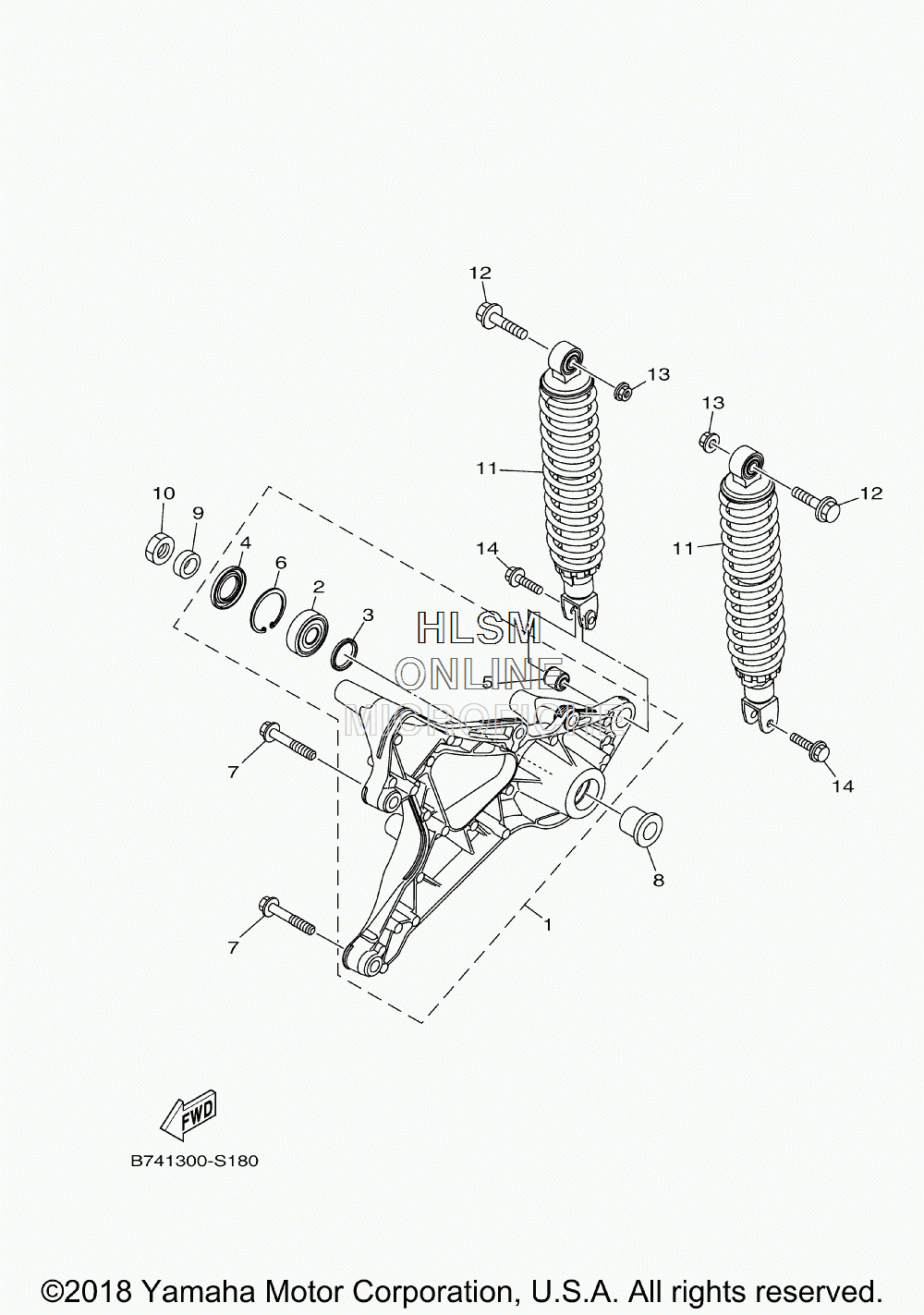

SUSPENSION - REAR ARM W/ SHOCK для Yamaha XMAX - 2018 года выпуска`
-
№АртикулНазвание
-
1B74-F2100-00-00 REAR ARM ASSYREAR ARM ASSY
-
293306-303YV-00 ...BEARING...BEARING
-
393106-28801-00 ...OIL SEAL...OIL SEAL
-
493106-28813-00 ...OIL SEAL...OIL SEAL
-
55MX-F2216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
699009-47500-00 ...CIRCLIP...CIRCLIP
-
795812-10060-00 BOLT, FLANGEBOLT, FLANGE
-
8B74-F5183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
990387-17807-00 COLLARCOLLAR
-
1090185-16800-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
11B74-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1295817-10040-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1495817-08030-00 BOLT, FLANGEBOLT, FLANGE
