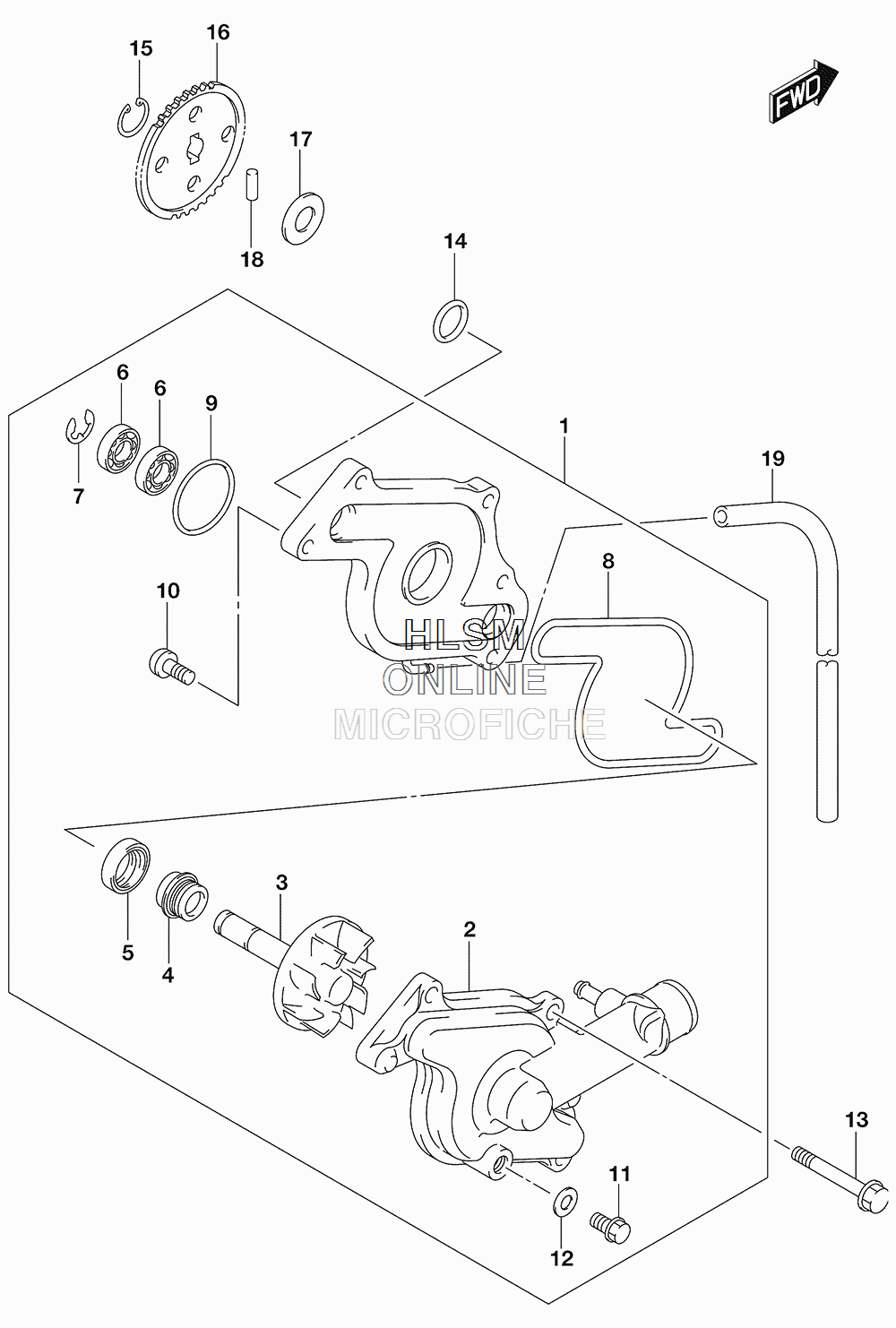

WATER PUMP для Suzuki SFV650SA L5 - 2015 года выпуска

№

Артикул

Название
1

17400-19F50 PUMP ASSY, WATER

PUMP ASSY, WATER
2

17411-19F50 CASE, WATER PUMP

CASE, WATER PUMP
3

17491-19F40 SHAFT, IMPELLER

SHAFT, IMPELLER
4

17470-02F10 SEAL, WATER PUMP SHAFT MECH

SEAL, WATER PUMP SHAFT MECH
5

09283-10004 OIL SEAL (10X21X5)

OIL SEAL (10X21X5)
6

09262-10014 BEARING (10X26X8)

BEARING (10X26X8)
7

08332-1108A E RING

E RING
8

17418-19F00 O RING

O RING
9

17435-33400 O RING

O RING
10

02112-0616B SCREW

SCREW
11

17415-20920 BOLT, DRAIN

BOLT, DRAIN
12

09168-08016 GASKET (8.2X14X1)

GASKET (8.2X14X1)
13

09103-06216 BOLT (6X55)

BOLT (6X55)
14

09280-22001 O RING (D:2.4,ID:21.8)

O RING (D:2.4,ID:21.8)
15

08331-31109 CIRCLIP

CIRCLIP
16

17461-19F00 GEAR, WATER PUMP DRIVEN (NT:34)

GEAR, WATER PUMP DRIVEN (NT:34)
17

09181-10158 SHIM (10X18X0.5)

SHIM (10X18X0.5)
18

09261-04002 ROLLER (4X13.8)

ROLLER (4X13.8)
19

09352-35653-600 HOSE (3.5X6.5X600) (L:600->320)

HOSE (3.5X6.5X600) (L:600->320)
