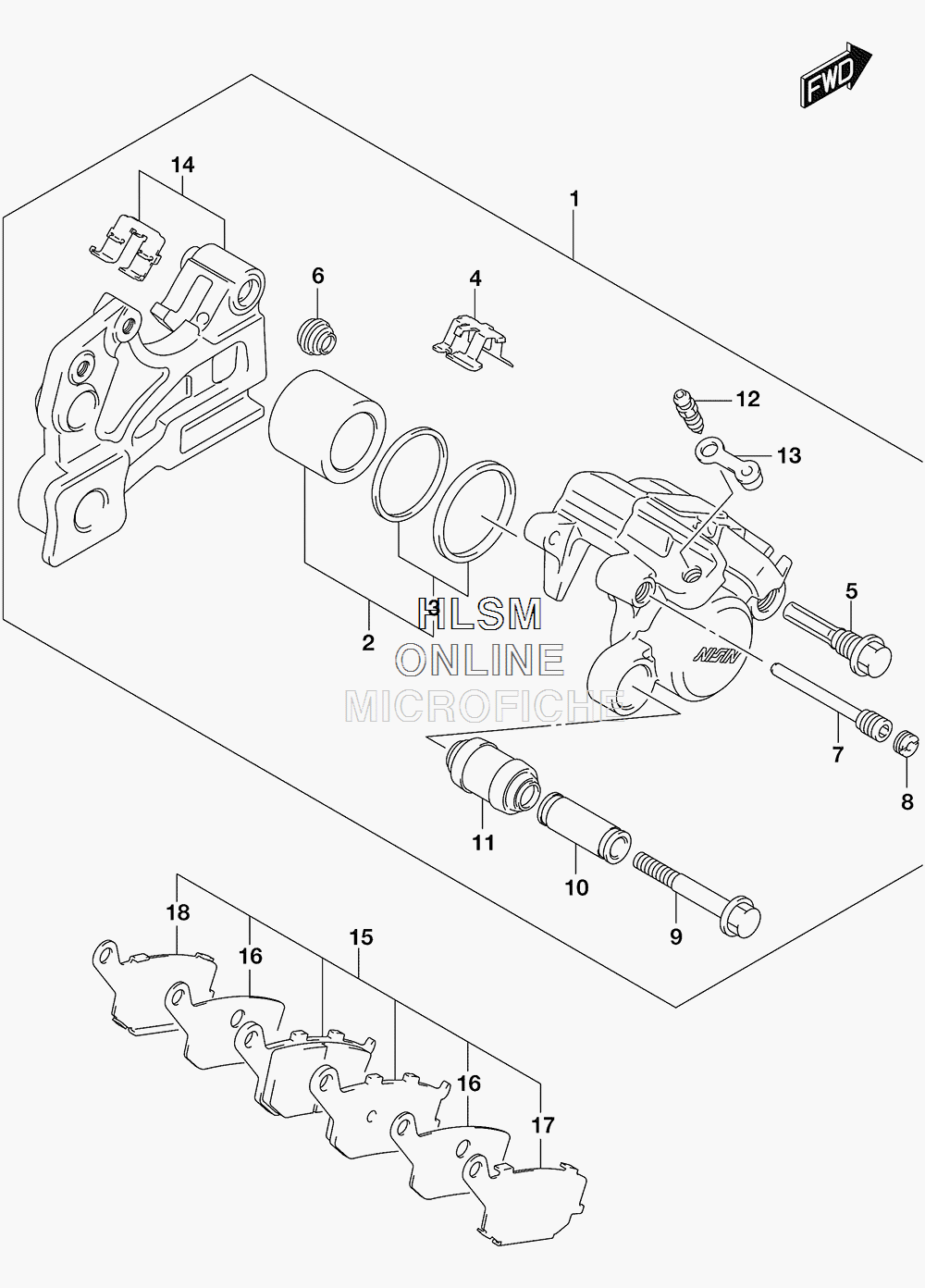

BRAKE - REAR CALIPER для Suzuki SFV650SA L5 - 2015 года выпуска`
-
№АртикулНазвание
-
169100-17G21-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
269100-04810 PISTON SETPISTON SET
-
369100-04820 SEAL SET, PISTONSEAL SET, PISTON
-
469115-06G00 PAD, SPRINGPAD, SPRING
-
569105-04F00 BOLTBOLT
-
659303-14500 BOOTBOOT
-
769141-40F00 PIN, PADPIN, PAD
-
859146-21E10 PLUG, PINPLUG, PIN
-
969182-04F00 BOLTBOLT
-
1069185-04F00 SLEEVESLEEVE
-
1169186-04F00 BOOTBOOT
-
1259121-01A00 BLEEDER, SLEEVEBLEEDER, SLEEVE
-
1359122-01A00 CAP, BLEEDERCAP, BLEEDER
-
1469150-17G20 BRACKETBRACKET
-
1569100-16852 PAD AND RETAINER SETPAD AND RETAINER SET
-
1669132-06G00 INSULATORINSULATOR
-
1769133-16G00 RETAINERRETAINER
-
1869134-16G00 RETAINERRETAINER
