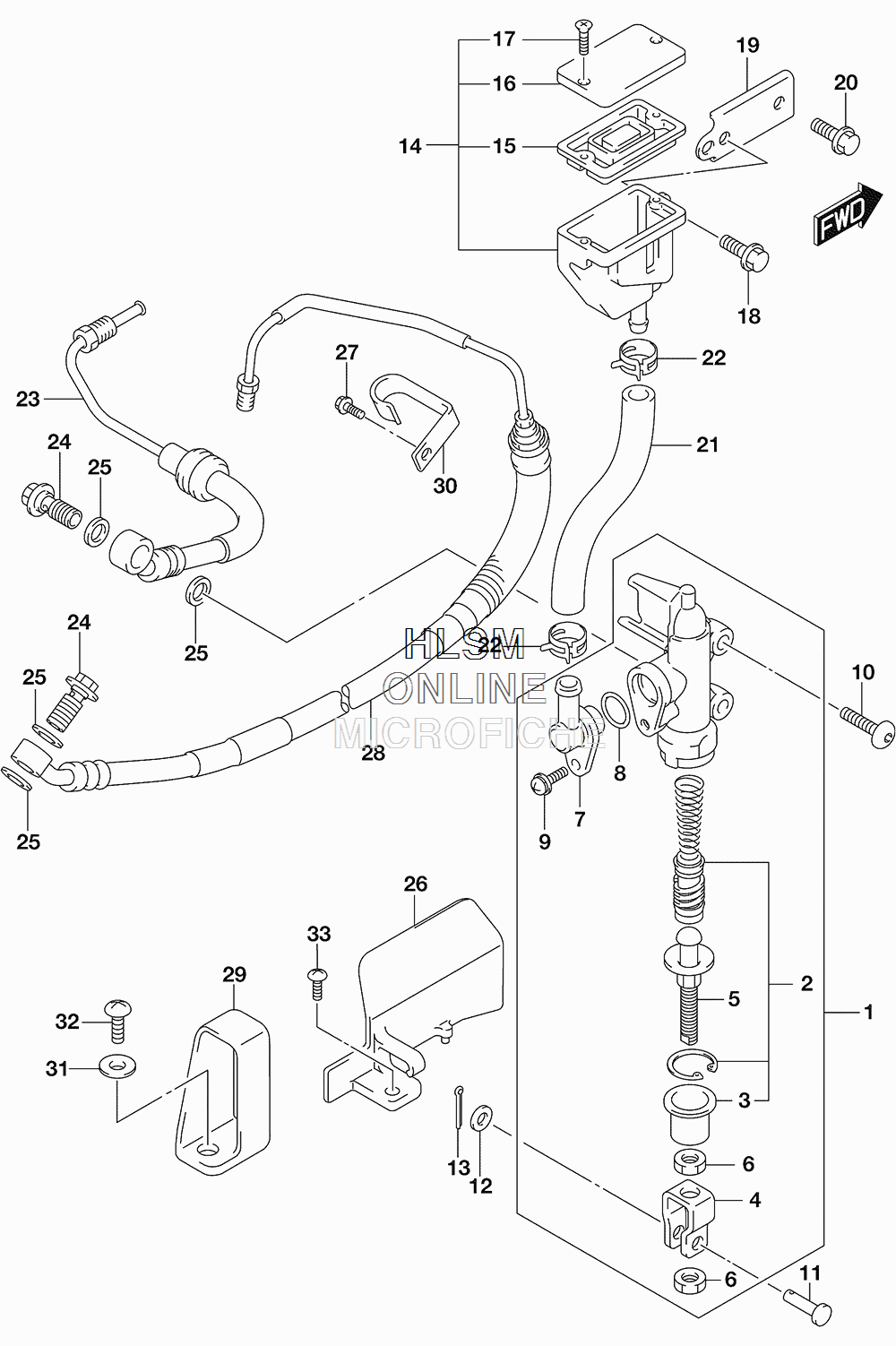

BRAKE - REAR MASTER CYLINDER для Suzuki SFV650SA L5 - 2015 года выпуска`
-
№АртикулНазвание
-
169600-16G00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-34820 PISTON/CUP SETPISTON/CUP SET
-
369691-00A00 BOOTBOOT
-
469692-27A30 YOKEYOKE
-
569670-48B00 ROD, PUSHROD, PUSH
-
669693-05A00 NUTNUT
-
769672-05A00 CONNECTORCONNECTOR
-
869686-34200 O RINGO RING
-
902112-7412A SCREWSCREW
-
1009139-06028 SCREW (6X20)SCREW (6X20)
-
1109200-06068 PIN (6X18.2)PIN (6X18.2)
-
1208322-0106B WASHERWASHER
-
1304111-2015A COTTER PINCOTTER PIN
-
1469740-01D02 TANK ASSY, REAR RESERVOIRTANK ASSY, REAR RESERVOIR
-
1559667-04700 DIAPHRAGMDIAPHRAGM
-
1659669-05D00 CAPCAP
-
1769689-04A00 SCREWSCREW
-
1809103-06222 BOLT (6X12)BOLT (6X12)
-
1969750-16G10 BRACKET, RR RESERVOIR TANKBRACKET, RR RESERVOIR TANK
-
2001550-0616A BOLTBOLT
-
2169731-16G20 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
2209401-13417 CLIPCLIP
-
2369200-17G00 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
2409360-10062 UNIONUNION
-
2509161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2661196-06G00 GUIDE, RR BRAKE HOSEGUIDE, RR BRAKE HOSE
-
2701547-0612A BOLTBOLT
-
2869400-17G00 HOSE ASSY, REAR BRAKE NO.2HOSE ASSY, REAR BRAKE NO.2
-
2969243-16G00 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
3069266-17G00 CLAMP, REAR BRAKE HOSE NO.2CLAMP, REAR BRAKE HOSE NO.2
-
3109169-06041 WASHERWASHER
-
3202142-0616A SCREWSCREW
-
3302142-0510A SCREWSCREW
