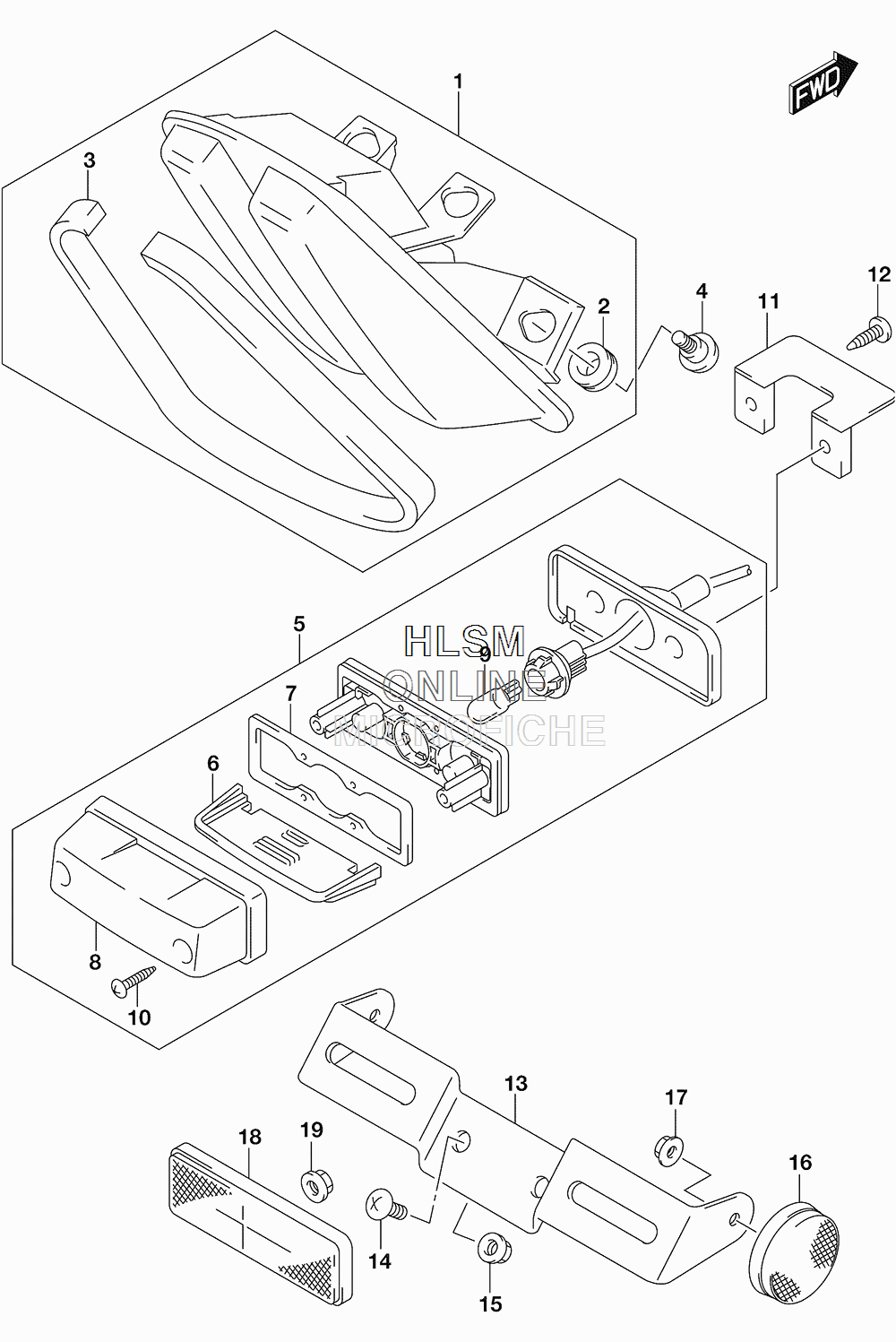

TAILLIGHT ASSY. для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
135710-16G31 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
209320-10049 CUSHIONCUSHION
-
345519-16G00 CUSHION, SEAT TAIL COVERCUSHION, SEAT TAIL COVER
-
409139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
535910-16G11 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
635912-16G01 LENSLENS
-
735913-16G00 GASKETGASKET
-
835917-16G00 COVERCOVER
-
909471-12216 BULB (12V5W)BULB (12V5W)
-
1003211-0416A SCREWSCREW
-
1135926-16G00 BRACKET, LICENSEBRACKET, LICENSE
-
1203541-0520B SCREWSCREW
-
1335927-17G30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1402142-0616B SCREWSCREW
-
1508316-1006B NUTNUT
-
1635970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1708316-1005B NUTNUT
-
1835970-07F01 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1908316-1005B NUTNUT
