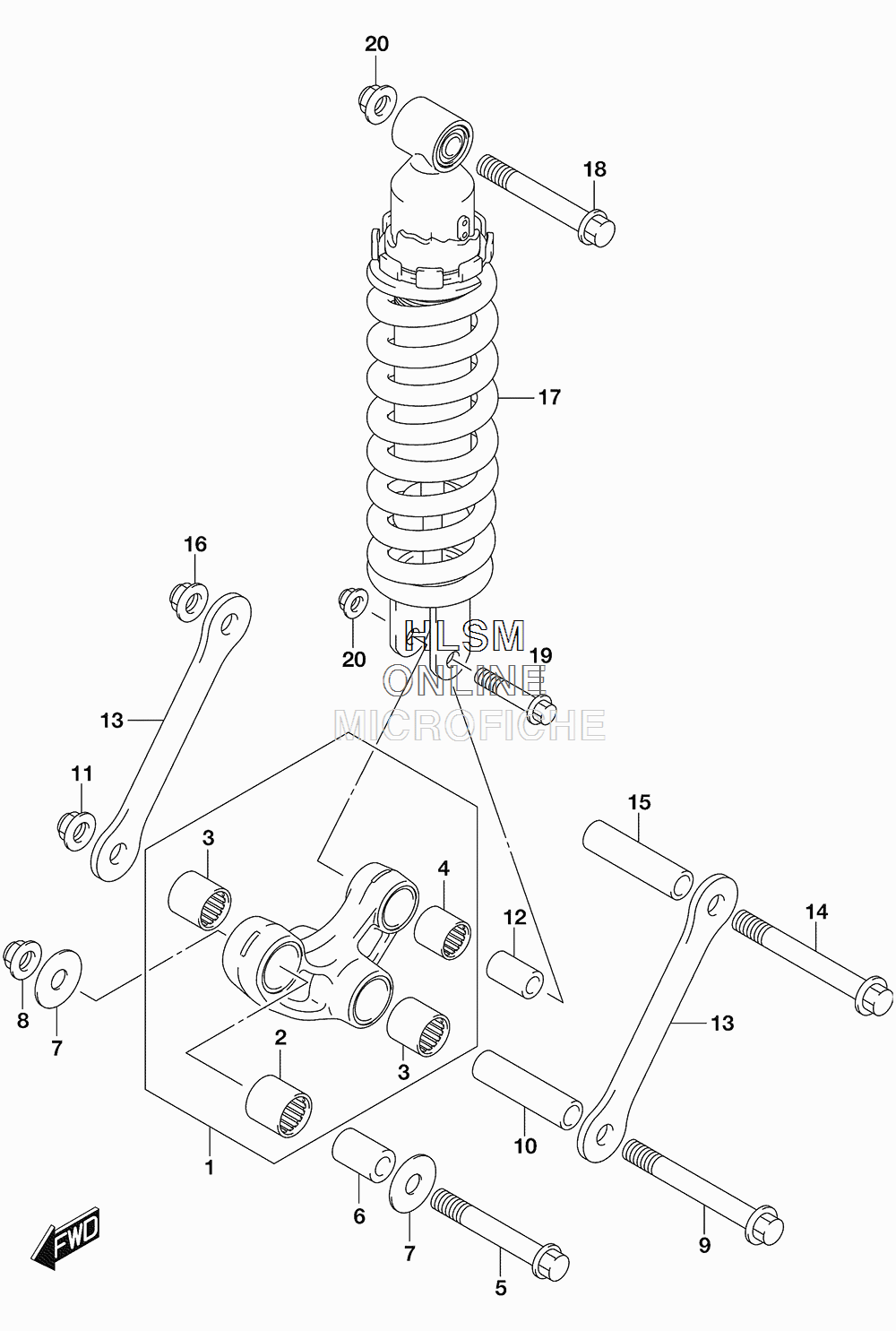

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
162600-17860 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 BEARING (20X27X30)BEARING (20X27X30)
-
309263-17039 BEARING (17X24X20)BEARING (17X24X20)
-
409263-17034 BEARING (17X24X26)BEARING (17X24X26)
-
562658-19F00 BOLT, FRONTBOLT, FRONT
-
662684-12C00 SPACER, FRONT (12X78)SPACER, FRONT (12X78)
-
709160-12037 WASHER (12X34X1)WASHER (12X34X1)
-
808319-3112A NUTNUT
-
909103-12034 BOLT (12X96)BOLT (12X96)
-
1062626-17G00 SPACER, CENTERSPACER, CENTER
-
1108319-3112A NUTNUT
-
1262684-40A10 SPACER, REARSPACER, REAR
-
1362641-17G00 ROD, REAR CUSHIONROD, REAR CUSHION
-
1409103-12034 BOLT (12X96)BOLT (12X96)
-
1562626-17G00 SPACER, ROD (12X17X68)SPACER, ROD (12X17X68)
-
1608319-3112A NUTNUT
-
1762100-17G90-28W ABSORBER ASSY, REAR SHOCK (WHITE)ABSORBER ASSY, REAR SHOCK (WHITE)
-
1809103-10033 BOLT (10X70)BOLT (10X70)
-
1909103-10126 BOLT (10X48)BOLT (10X48)
-
2009159-10115 NUTNUT
