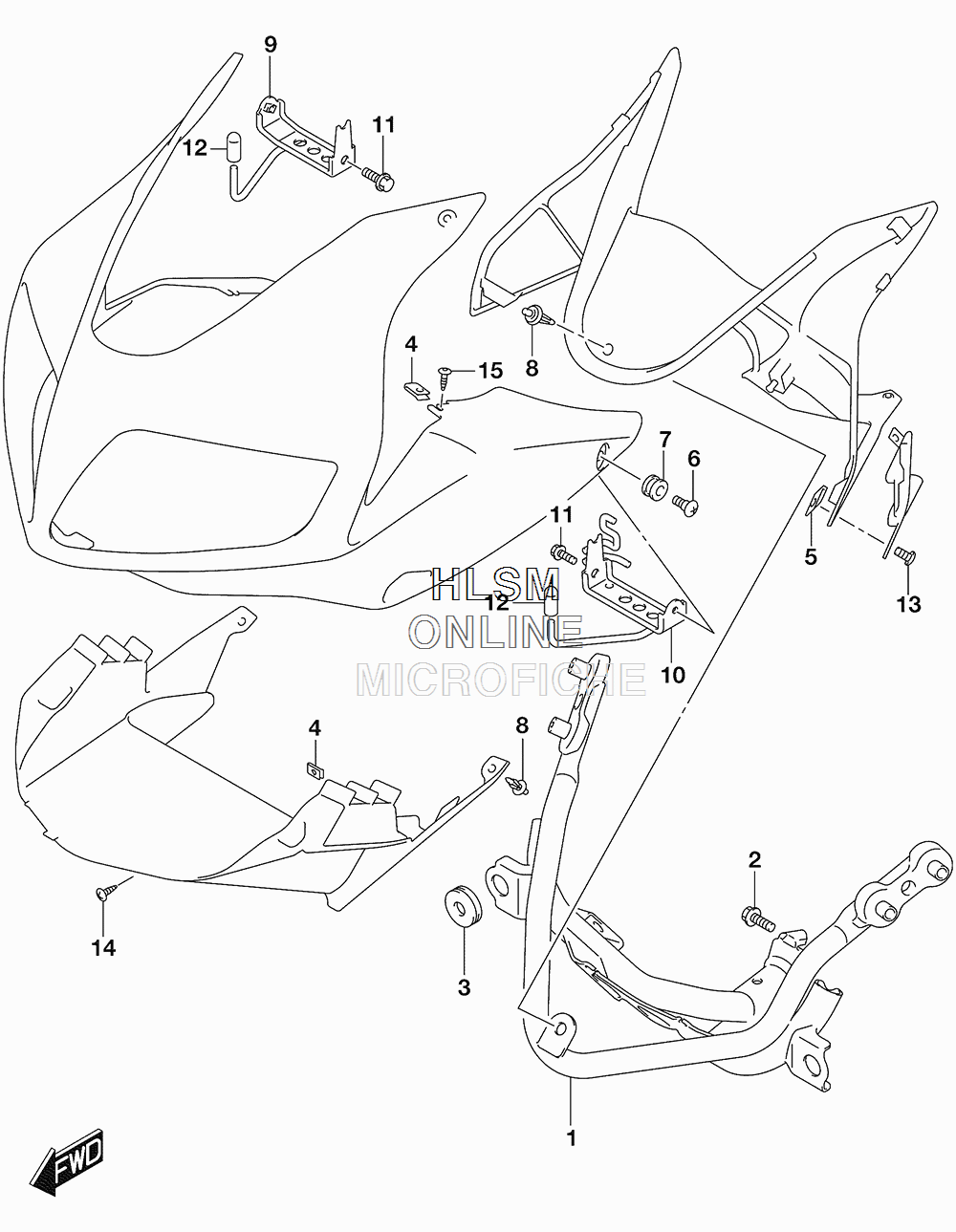

COWLING INSTALLATION PARTS для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
194510-16G01 BRACE, COWLINGBRACE, COWLING
-
201550-0820B BOLTBOLT
-
309320-08028 CUSHIONCUSHION
-
494484-24F00 NUTNUT
-
509148-05038 NUTNUT
-
609139-06126 SCREW (6X20)SCREW (6X20)
-
709320-09016 CUSHIONCUSHION
-
809409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
994530-16G00 BRACKET, SIDE RIGHT HANDBRACKET, SIDE RIGHT HAND
-
1094540-16G10 BRACKET, SIDE LEFT HANDBRACKET, SIDE LEFT HAND
-
1101550-0612B BOLTBOLT
-
1209251-04003 CAPCAP
-
1309132-05053 SCREW (5X16)SCREW (5X16)
-
1403241-0512B SCREWSCREW
-
1509139-05064 SCREW (5X13)SCREW (5X13)
