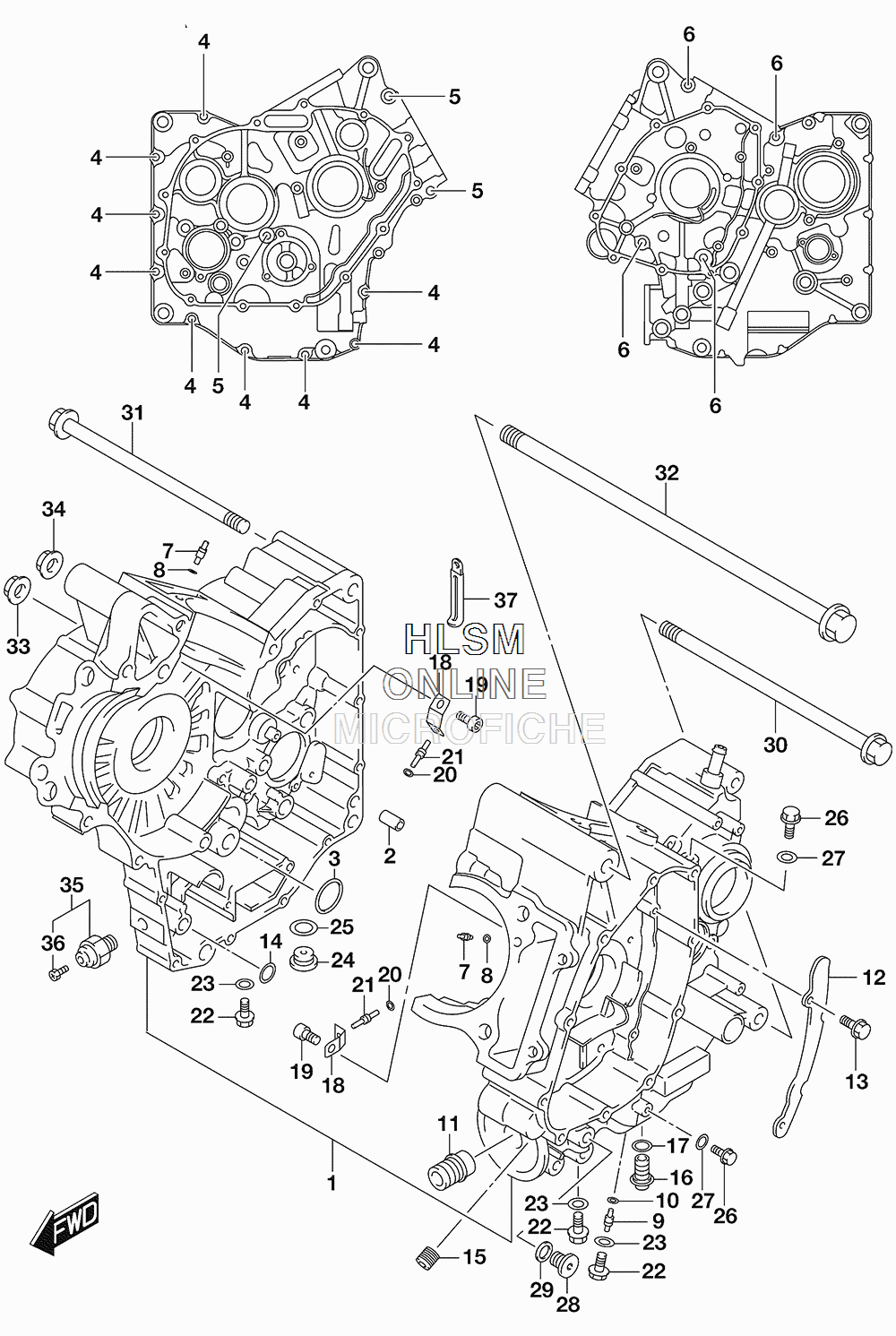

CRANKCASE для Suzuki SFV650SA L5 - 2015 года выпуска

№

Артикул

Название
1

11301-20883 CRANKCASE SET

CRANKCASE SET
2

09206-11007 PIN (8.4X11X20)

PIN (8.4X11X20)
3

09280-15007 O RING (D:2.4,ID:15.8)

O RING (D:2.4,ID:15.8)
4

01547-0650A BOLT

BOLT
5

07120-0855A BOLT

BOLT
6

07120-0880A BOLT

BOLT
7

09493-28010 JET OIL GALLERY CYLINDER (14)

JET OIL GALLERY CYLINDER (14)
8

09280-04004 O RING (D:1.2,ID:4)

O RING (D:1.2,ID:4)
9

09493-28010 JET OIL GALLERY MISSION (14)

JET OIL GALLERY MISSION (14)
10

09280-04004 O RING (D:1.2,ID:4)

O RING (D:1.2,ID:4)
11

16591-06B01 UNION, OIL FILTER STAND

UNION, OIL FILTER STAND
12

11323-19F00 PLATE, OIL SEPARATOR

PLATE, OIL SEPARATOR
13

01547-0612A BOLT

BOLT
14

09280-12009 O RING (D:1.9,ID:12.6)

O RING (D:1.9,ID:12.6)
15

11329-17G00 JET, OIL GALLERY (3.6)

JET, OIL GALLERY (3.6)
16

09247-12011 PLUG (12X20) (OIL DRAIN)

PLUG (12X20) (OIL DRAIN)
17

09168-12002 GASKET (12.1X16.2X3.7)

GASKET (12.1X16.2X3.7)
18

16438-19F00 PLATE, PISTON COOLING JET

PLATE, PISTON COOLING JET
19

09106-06075 BOLT (6X12)

BOLT (6X12)
20

09280-04004 O RING (D:1.2,ID:4)

O RING (D:1.2,ID:4)
21

09493-26007 JET, PISTON COOLING (13)

JET, PISTON COOLING (13)
22

01550-0812A BOLT

BOLT
23

09168-08016 GASKET (8.2X14X1)

GASKET (8.2X14X1)
24

09248-16012 PLUG (16X8)

PLUG (16X8)
25

09168-16002 GASKET (16X22X2)

GASKET (16X22X2)
26

01547-0610A BOLT

BOLT
27

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
28

09247-12006 PLUG (12X10)

PLUG (12X10)
29

09168-12017 GASKET (12X17X1)

GASKET (12X17X1)
30

09103-10137 BOLT (10X255)

BOLT (10X255)
31

09103-10205 BOLT (10X225)

BOLT (10X225)
32

09103-12054 BOLT (12X310)

BOLT (12X310)
33

09159-10115 NUT

NUT
34

09159-12054 NUT

NUT
35

37820-33D10 SWITCH ASSY, OIL PRESSURE

SWITCH ASSY, OIL PRESSURE
36

37822-33D00 BOLT

BOLT
37

09404-06429 CLAMP (L:45)

CLAMP (L:45)
