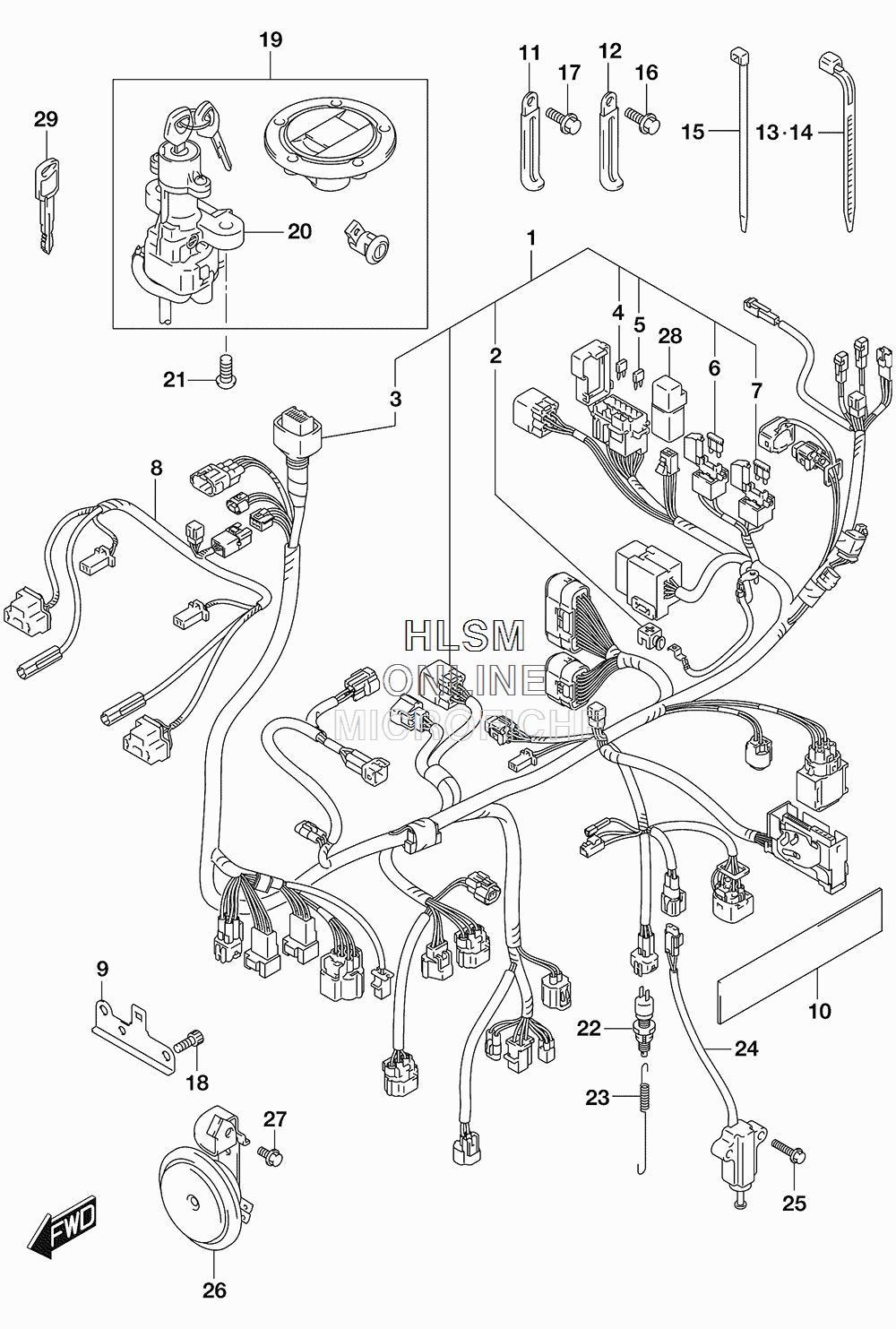

ELECTRICAL - WIRING HARNESS для Suzuki SFV650SA L5 - 2015 года выпуска`
-
№АртикулНазвание
-
136610-17GU0 HARNESS, WIRING, NO.1HARNESS, WIRING, NO.1
-
233624-16G00 CAP, BATTERY PLUSCAP, BATTERY PLUS
-
336618-33E00 COVER, SPEEDOMETER COUPLERCOVER, SPEEDOMETER COUPLER
-
409481-10501 FUSE (10A)FUSE (10A)
-
509481-15501 FUSE (15A)FUSE (15A)
-
609481-25103 FUSE (25A)FUSE (25A)
-
709481-40101 FUSE (40A)FUSE (40A)
-
836620-16G10 HARNESS, WIRING, NO.2HARNESS, WIRING, NO.2
-
936687-17G10 HOLDER, COUPLERHOLDER, COUPLER
-
1033652-26E00 PROTECTOR (20X90X1.0)PROTECTOR (20X90X1.0)
-
1109404-06429 CLAMP (L:45)CLAMP (L:45)
-
1209404-06433 CLAMP (L:80)CLAMP (L:80)
-
1309407-11401 CLAMP (L:95)CLAMP (L:95)
-
1409407-18402 CLAMP (L:165)CLAMP (L:165)
-
1509407-14407 CLAMP (L:145)CLAMP (L:145)
-
1601550-0612B BOLTBOLT
-
1701550-0610A BOLTBOLT
-
1807130-0610B BOLTBOLT
-
1937000-16840 LOCK SETLOCK SET
-
2037100-16G00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
2109139-08016 BOLT (8X20)BOLT (8X20)
-
2237740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2309443-06016 SPRINGSPRING
-
2437840-16G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2501550-0625A BOLTBOLT
-
2638500-17G11 HORN ASSYHORN ASSY
-
2701550-0612B BOLTBOLT
-
2838740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2937146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
