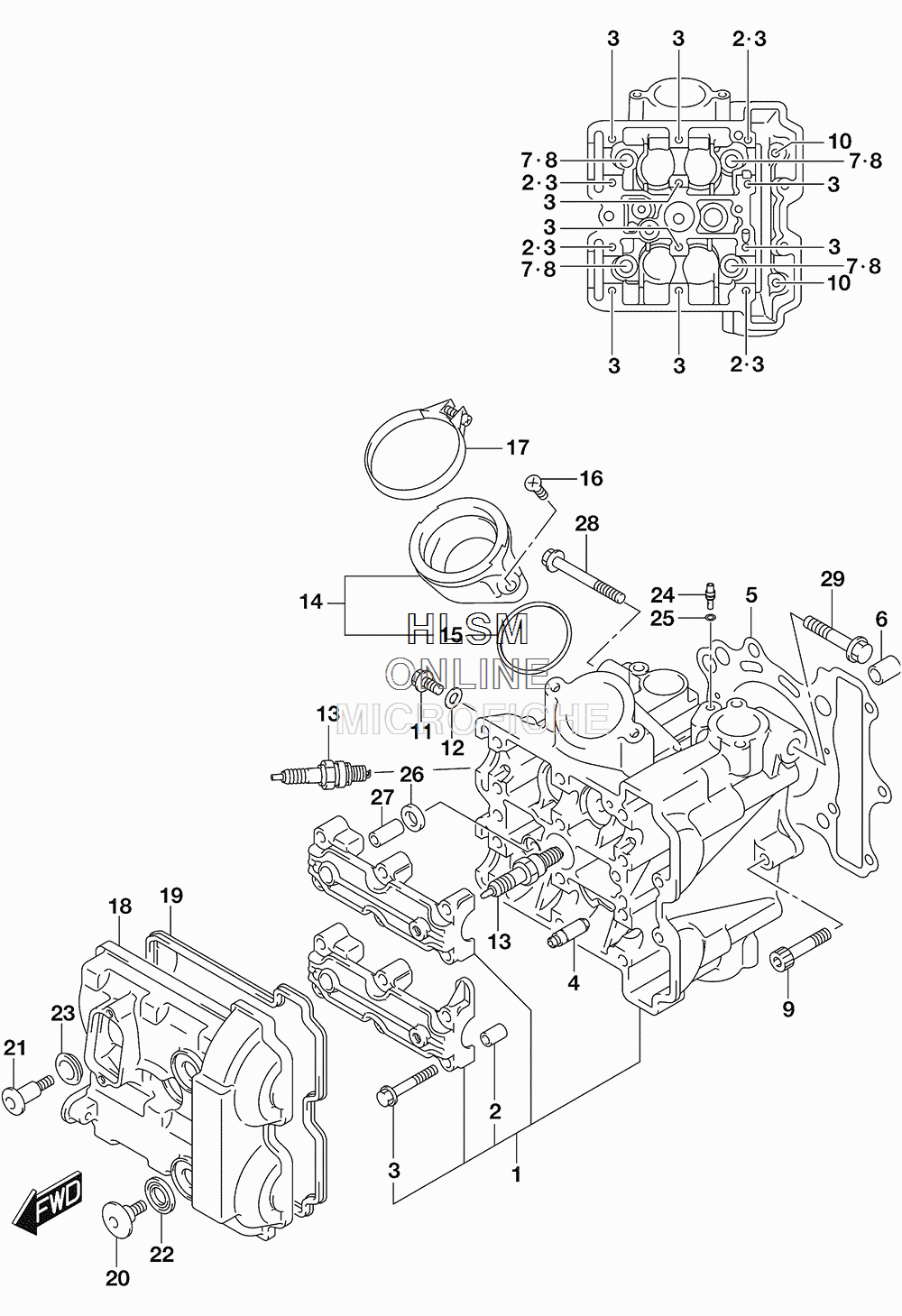

CYLINDER HEAD (FRONT) для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
111101-17G20 HEAD ASSY, CYLINDER FRONTHEAD ASSY, CYLINDER FRONT
-
209206-08001 PIN (8X11)PIN (8X11)
-
309103-06266 BOLT (6X40)BOLT (6X40)
-
411115-18D72 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
511141-20F00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
604211-13189 PINPIN
-
709160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
-
809103-10272 BOLT (10X160)BOLT (10X160)
-
907120-0640A BOLTBOLT
-
1009103-06103 BOLT (6X70)BOLT (6X70)
-
1109103-06222 BOLT (6X12)BOLT (6X12)
-
1209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1309482-00456 SPARK PLUG (CR8E) (NGK)SPARK PLUG (CR8E) (NGK)
-
1309482-00457 SPARK PLUG (U24ESR-N) (DENSO)SPARK PLUG (U24ESR-N) (DENSO)
-
1309482-00458 SPARK PLUG (CR9E) (OPT NGK)SPARK PLUG (CR9E) (OPT NGK)
-
1309482-00459 SPARK PLUG (U27ESR-N) (OPT DENSO)SPARK PLUG (U27ESR-N) (OPT DENSO)
-
1309482-00516 SPARK PLUG (CR7E) (OPT NGK)SPARK PLUG (CR7E) (OPT NGK)
-
1309482-00515 SPARK PLUG (U22ESR-N) (OPT DENSO)SPARK PLUG (U22ESR-N) (OPT DENSO)
-
1413101-17G10 PIPE ASSY, INTAKE FRONTPIPE ASSY, INTAKE FRONT
-
1509280-46006 O RING (D:2.4,ID:47X42)O RING (D:2.4,ID:47X42)
-
1602122-0616A SCREWSCREW
-
1709402-62208 CLAMPCLAMP
-
1811171-17G10 COVER, CYLINDER HEAD FRONTCOVER, CYLINDER HEAD FRONT
-
1911173-19F01 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
2009106-07009 BOLT (7X17.5)BOLT (7X17.5)
-
2109106-07010 BOLT (7X31)BOLT (7X31)
-
2211191-27E00 WASHERWASHER
-
2311192-13E00 CUSHION, HEAD COVER BOLTCUSHION, HEAD COVER BOLT
-
2409493-80005 JET, OIL GALL CYL HEAD (8)JET, OIL GALL CYL HEAD (8)
-
2509280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2611182-35F00 GASKET, 2ND AIR PASSAGEGASKET, 2ND AIR PASSAGE
-
2709206-08007 PIN (6.2X8X16)PIN (6.2X8X16)
-
2809103-10244 BOLT (10X105)BOLT (10X105)
-
2901550-10707 BOLTBOLT
