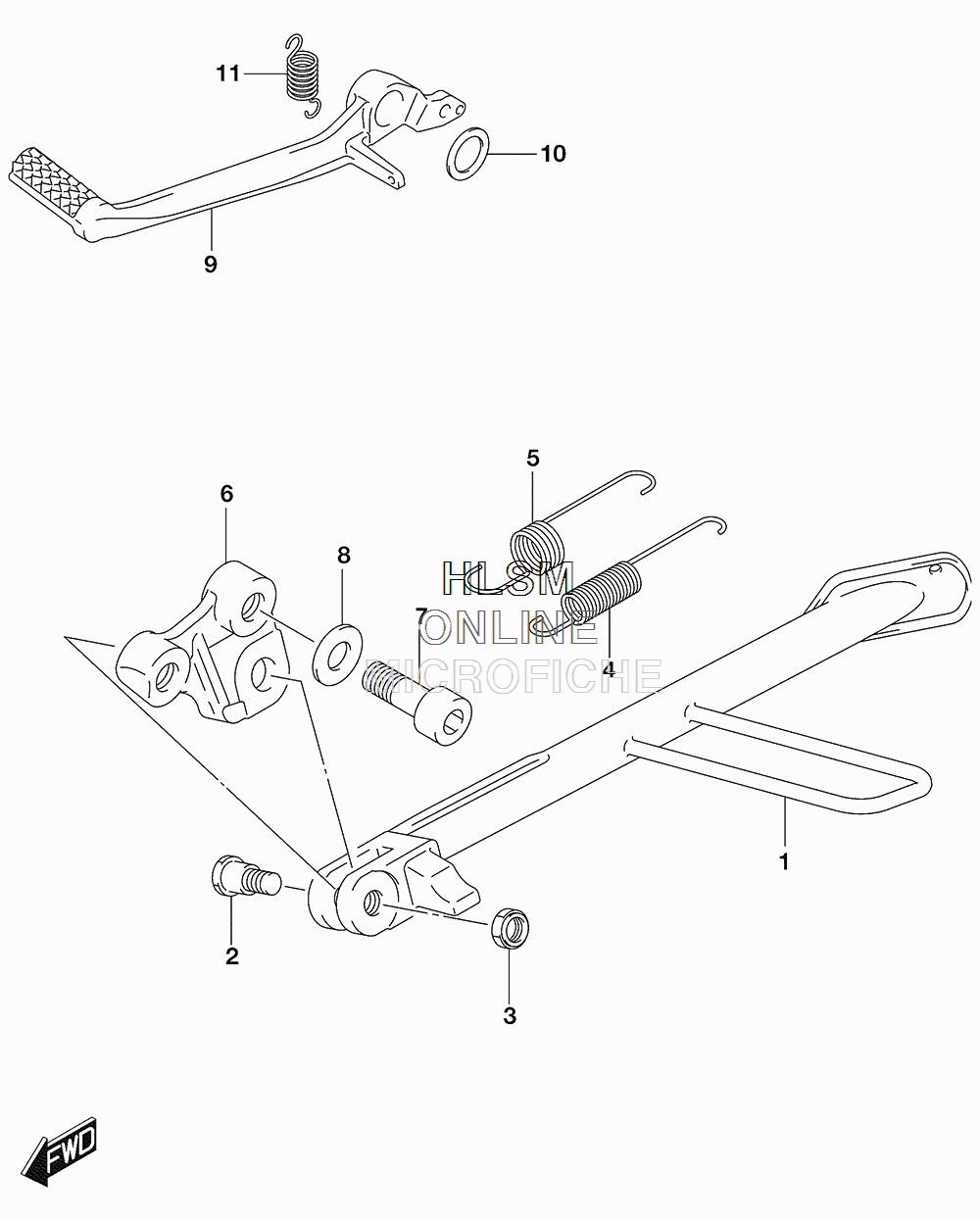

BRAKE PEDAL W/ STAND для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
142310-17G10 STAND, PROPSTAND, PROP
-
209111-10027 BOLT (10X34)BOLT (10X34)
-
342321-03FK0 NUT, PROP STANDNUT, PROP STAND
-
409443-14069 SPRINGSPRING
-
509443-19012 SPRINGSPRING
-
642330-16G00 BRACKET, PROP STANDBRACKET, PROP STAND
-
709106-12003 BOLT (12X35)BOLT (12X35)
-
809160-12061 WASHER (12.5X24X2.6)WASHER (12.5X24X2.6)
-
943111-16G00 PEDAL, BRAKEPEDAL, BRAKE
-
1009160-18022 WASHER (18X24X1)WASHER (18X24X1)
-
1109443-13035 SPRINGSPRING
