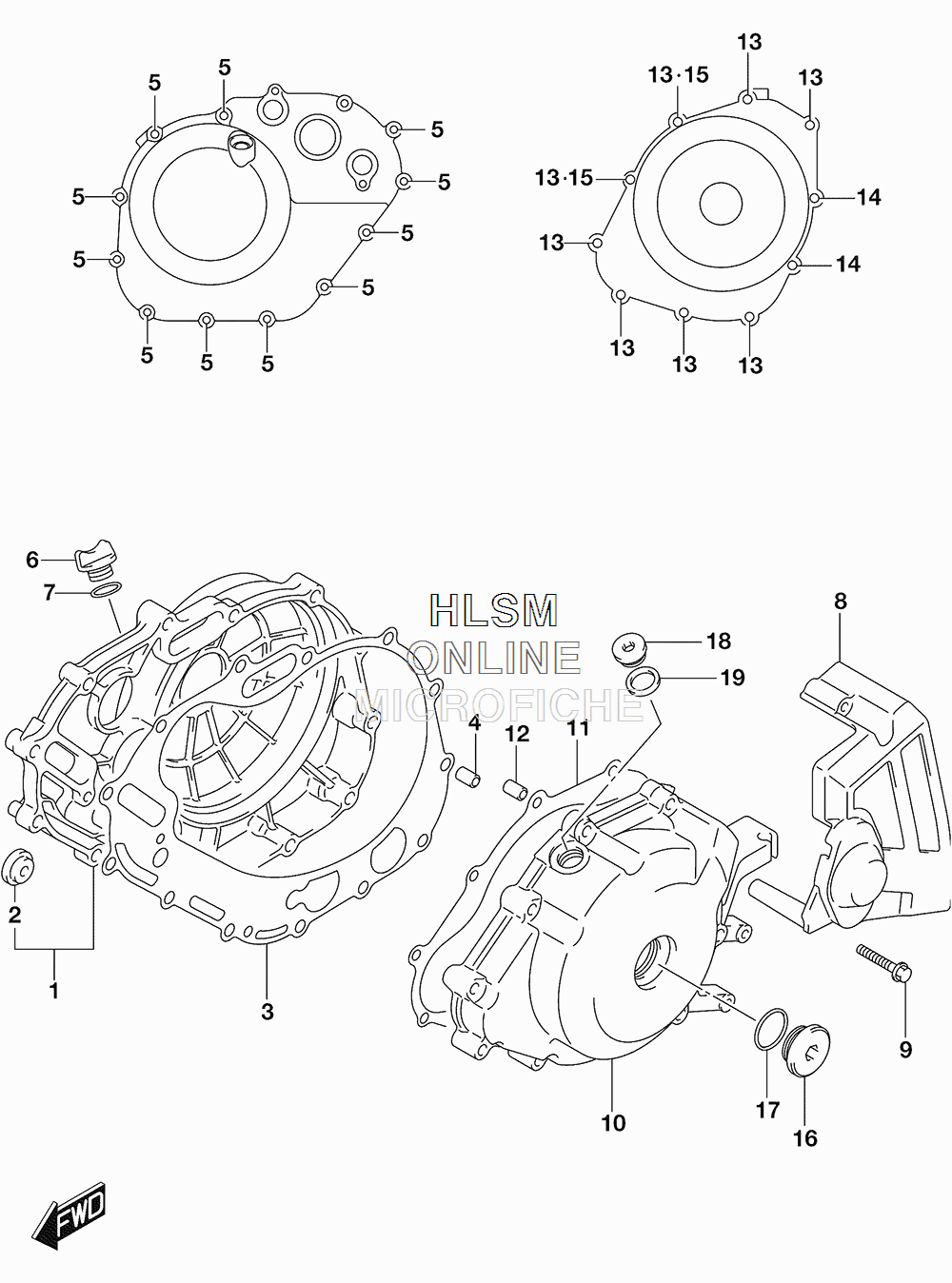

CRANKCASE COVER для Suzuki SFV650SA L5 - 2015 года выпуска

№

Артикул

Название
1

11340-17G00 COVER, CLUTCH

COVER, CLUTCH
2

11971-33210 LENS, OIL LEVEL CHECK

LENS, OIL LEVEL CHECK
3

11482-44H00 GASKET, CLUTCH COVER

GASKET, CLUTCH COVER
4

04211-09149 PIN

PIN
5

09103-06214 BOLT (6X35)

BOLT (6X35)
6

11971-25D00 PLUG, OIL FILLER

PLUG, OIL FILLER
7

09280-17003 O RING (D:3.1,ID:16.8)

O RING (D:3.1,ID:16.8)
8

11361-17G00 COVER, ENGINE SPROCKET

COVER, ENGINE SPROCKET
9

09103-06224 BOLT (6X45)

BOLT (6X45)
10

11351-19F50 COVER, MAGNETO

COVER, MAGNETO
11

11483-19F00 GASKET, MAGNETO COVER

GASKET, MAGNETO COVER
12

04211-09149 PIN

PIN
13

09103-06214 BOLT (6X35)

BOLT (6X35)
14

09103-06239 BOLT (6X65)

BOLT (6X65)
15

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
16

09259-26011 PLUG (26X9)

PLUG (26X9)
17

09280-22008 O RING (D:3.1,ID:22.7)

O RING (D:3.1,ID:22.7)
18

09248-16012 PLUG (16X8)

PLUG (16X8)
19

09168-16002 GASKET (16X22X2)

GASKET (16X22X2)
