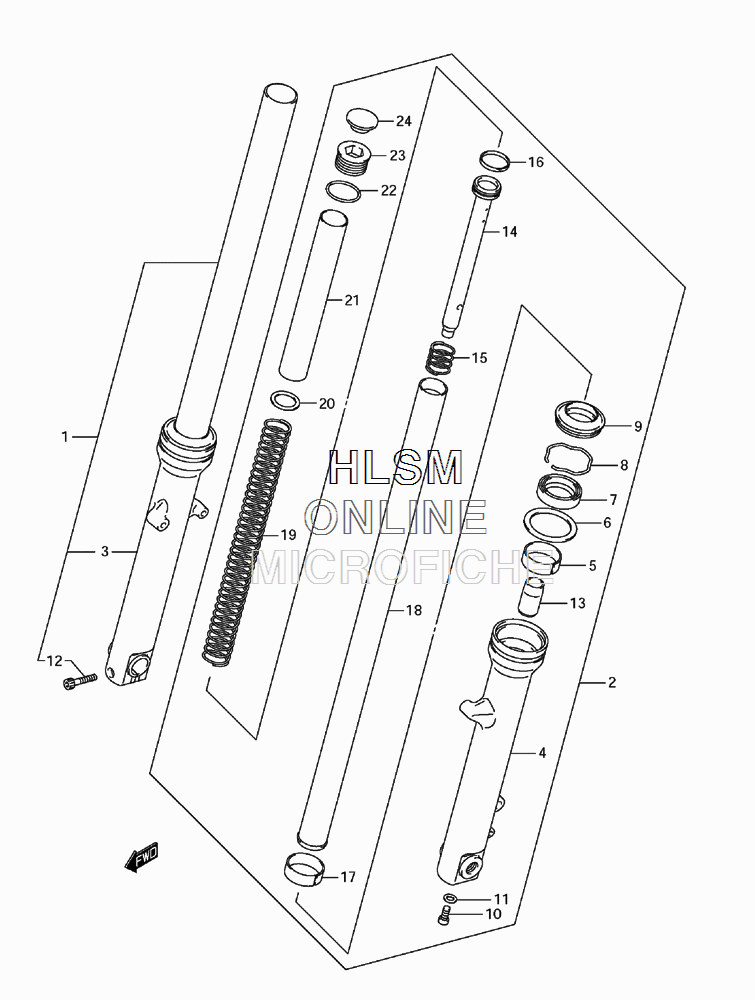

SUSPENSION - FRONT FORK для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
151103-26G10 DAMPER ASSY, FRONT FORK RIGHT HAND (INC 3-24)DAMPER ASSY, FRONT FORK RIGHT HAND (INC 3-24)
-
251104-26G10 DAMPER ASSY, FRONT FORK LEFT HAND (INC 3-24)DAMPER ASSY, FRONT FORK LEFT HAND (INC 3-24)
-
351130-26G10 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
451140-26G10 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
551152-25D00 BUSH, GUIDEBUSH, GUIDE
-
651158-03B30 SPACER, SEALSPACER, SEAL
-
751153-03B30 SEAL, OILSEAL, OIL
-
851156-03B30 RING, STOPPERRING, STOPPER
-
951173-25D00 SEAL, DUSTSEAL, DUST
-
1051147-48130 BOLTBOLT
-
1151148-36011 GASKETGASKET
-
1207130-08357 BOLTBOLT
-
1351195-25D00 PIECE, OIL LOCKPIECE, OIL LOCK
-
1451146-25D00 CYLINDERCYLINDER
-
1551177-25D00 SPRING, REBOUNDSPRING, REBOUND
-
1651196-25D00 RING, PISTONRING, PISTON
-
1751121-03B30 BUSH, SLIDEBUSH, SLIDE
-
1851110-25D00 TUBE, INNERTUBE, INNER
-
1951171-26G00 SPRING, MAINSPRING, MAIN
-
2051192-25D00 JOINT, SPRINGJOINT, SPRING
-
2151176-25D00 SPACER, SPRINGSPACER, SPRING
-
2251117-25D00 O RINGO RING
-
2351189-25D00 BOLT, FORKBOLT, FORK
-
2451351-03D00 CAP, FORKCAP, FORK
