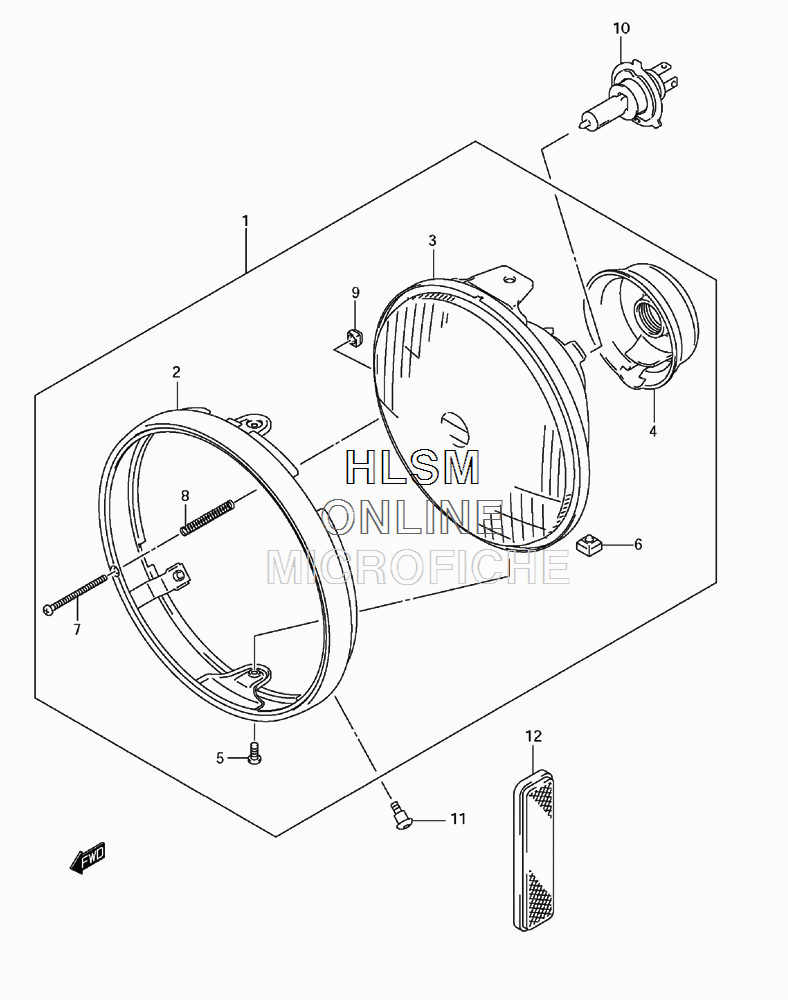

HEADLAMP для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
135100-26G00-999 HEADLAMP ASSY (INC 2-9)HEADLAMP ASSY (INC 2-9)
-
235111-26G00 RIMRIM
-
335121-26G00 UNIT, LAMPUNIT, LAMP
-
435173-38A00 COVER, SOCKETCOVER, SOCKET
-
502112-0510A SCREWSCREW
-
635135-45900 NUTNUT
-
735151-26G00 SCREW (4X45)SCREW (4X45)
-
835154-35300 SPRINGSPRING
-
935152-45600 NUTNUT
-
1009471-12060 BULB (12V60/55W)BULB (12V60/55W)
-
1109139-05081 SCREW (5X12)SCREW (5X12)
-
1235950-22H10 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
