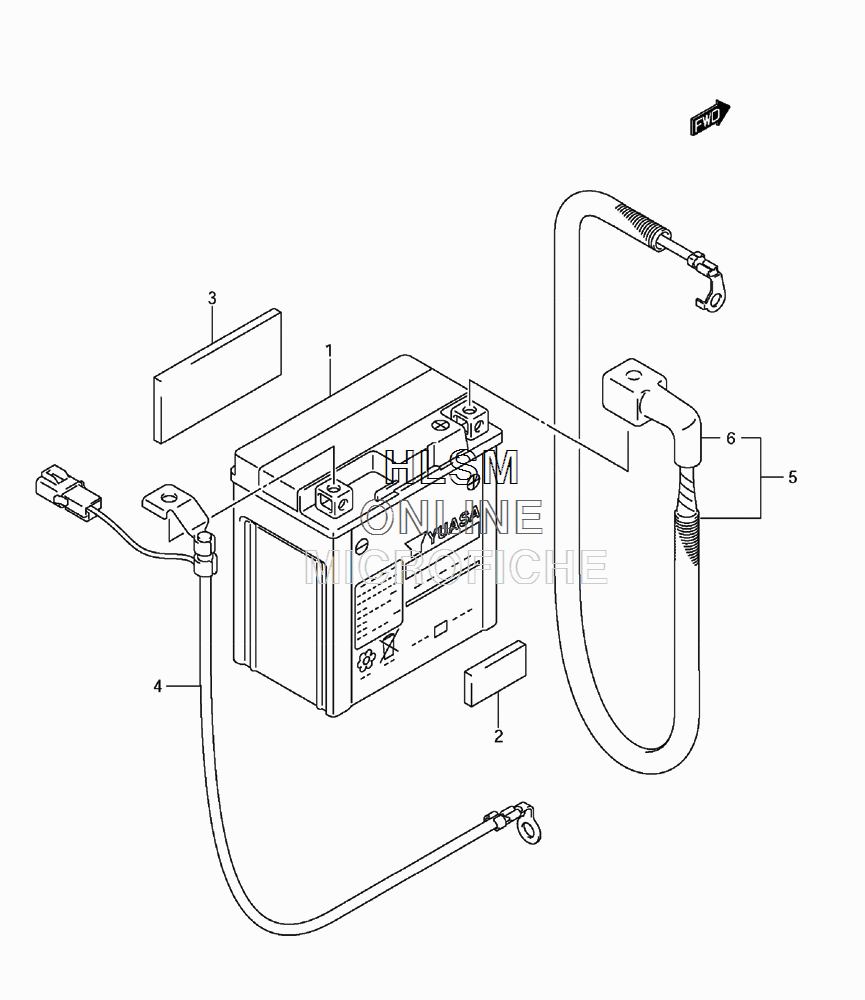

BATTERY для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
133610-15D20 BATTERY ASSY (12V,6AH)BATTERY ASSY (12V,6AH)
-
233652-24D00 PROTECTOR (100X70X3)PROTECTOR (100X70X3)
-
333651-37000 PROTECTOR (170X95X3)PROTECTOR (170X95X3)
-
433860-26G00 WIRE, BATTERY MINUS LEADWIRE, BATTERY MINUS LEAD
-
533820-26G10 WIRE, BATTERY PLUS LEAD (INC 6)WIRE, BATTERY PLUS LEAD (INC 6)
-
633624-43500 CAP, BATTERY PLUSCAP, BATTERY PLUS
