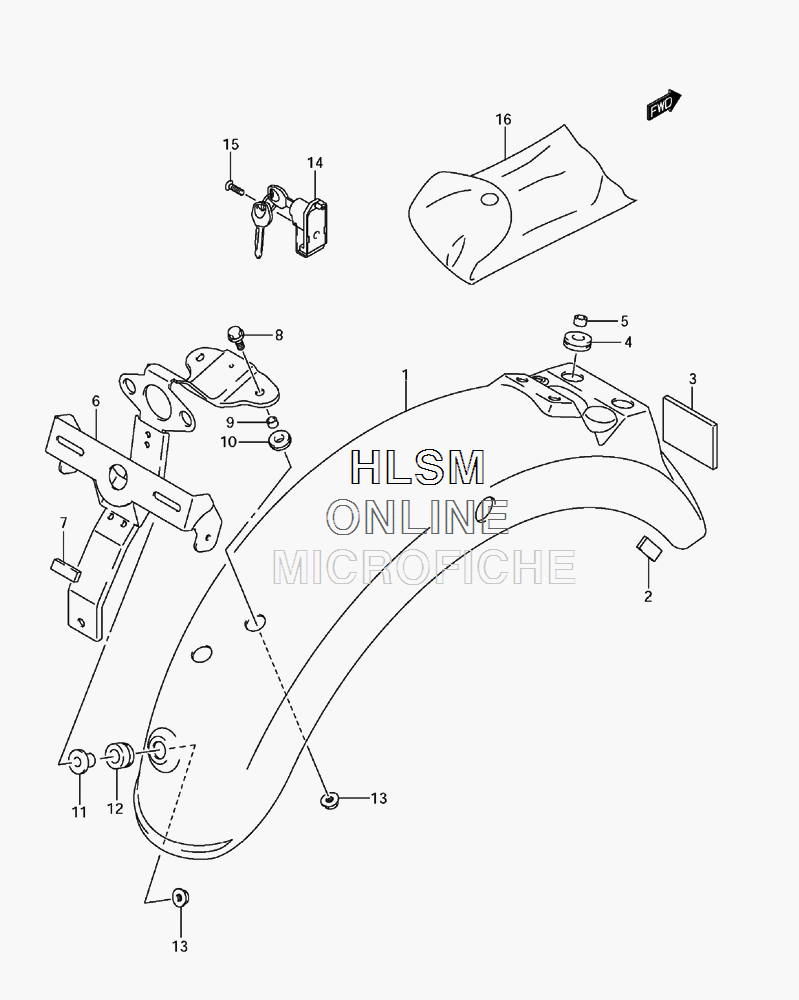

FENDER - REAR для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
163111-26G30-YHL FENDER, REAR (RED)FENDER, REAR (RED)
-
263191-26G00 CUSHIONCUSHION
-
363192-26G00 CUSHION, REARCUSHION, REAR
-
409320-13005 CUSHIONCUSHION
-
509180-08199 SPACERSPACER
-
663210-26G10-291 BRACE, TAIL LAMP (BLACK)BRACE, TAIL LAMP (BLACK)
-
763211-26G00 CUSHIONCUSHION
-
801550-0625B BOLTBOLT
-
909180-06079 SPACER, UPPERSPACER, UPPER
-
1009320-10053 CUSHION, UPPERCUSHION, UPPER
-
1109180-06319 SPACER, LOWERSPACER, LOWER
-
1209320-10501 CUSHION, LOWERCUSHION, LOWER
-
1308316-1006B NUTNUT
-
1495700-42820 LOCK SET, HELMETLOCK SET, HELMET
-
1502122-0620B SCREWSCREW
-
1609800-26820 TOOL SETTOOL SET
