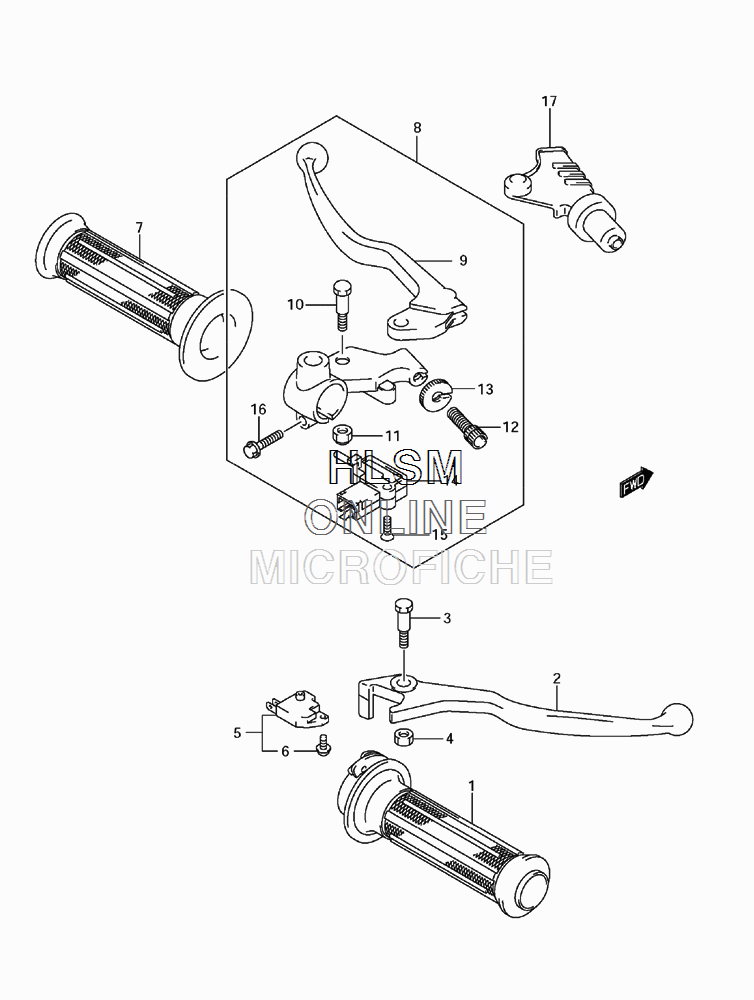

HANDLEBAR - LEVERS для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
157110-29G01-291 GRIP, THROTTLE (BLACK)GRIP, THROTTLE (BLACK)
-
257421-14F00 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
357431-04F00 BOLT, PIVOTBOLT, PIVOT
-
457433-09F00 NUT, PIVOTNUT, PIVOT
-
557460-17C11 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
657465-17C00 SCREWSCREW
-
757211-22D01-291 GRIP, LEFT HAND (BLACK)GRIP, LEFT HAND (BLACK)
-
857500-25D00 LEVER ASSY, CLUTCH (INC 9-16)LEVER ASSY, CLUTCH (INC 9-16)
-
957621-33E01 LEVER, CLUTCHLEVER, CLUTCH
-
1057431-45C01 BOLT, PIVOTBOLT, PIVOT
-
1108319-2106B NUT, PIVOTNUT, PIVOT
-
1257441-45C00 ADJUSTER, CABLEADJUSTER, CABLE
-
1357442-45C00 NUT, LOCKNUT, LOCK
-
1457560-05A00 SWITCH ASSY, CLUTCHSWITCH ASSY, CLUTCH
-
1502122-0320A SCREWSCREW
-
1601547-0620B BOLTBOLT
-
1757661-33E00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
