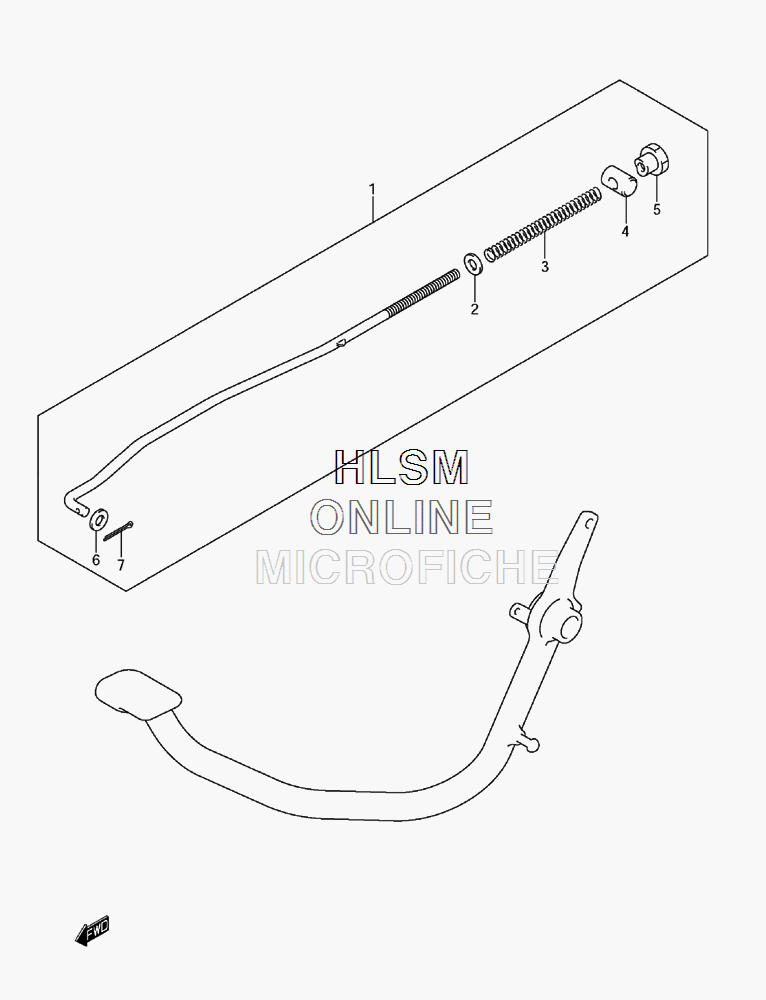

REAR BRAKE ROD для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
143300-26G00 ROD ASSY, REAR BRAKE (INC 2-7)ROD ASSY, REAR BRAKE (INC 2-7)
-
208322-0106B WASHERWASHER
-
309440-09004 SPRINGSPRING
-
409209-11002 PINPIN
-
509150-06010 NUTNUT
-
608322-0105B WASHERWASHER
-
704111-2020A PINPIN
