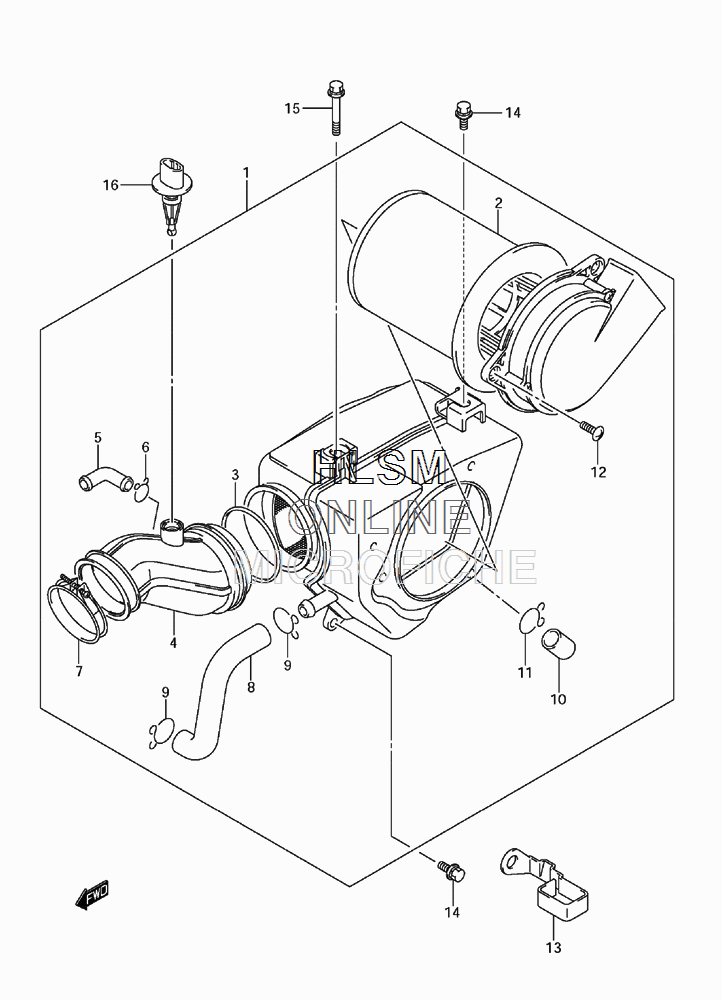

AIR CLEANER для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
113700-26GA1 CLEANER ASSY, AIR (INC 2-12)CLEANER ASSY, AIR (INC 2-12)
-
213780-38301 FILTERFILTER
-
313826-38300 CLAMPCLAMP
-
413881-26GA0 TUBE, OUTLETTUBE, OUTLET
-
513858-14D20 JOINTJOINT
-
609401-14101 CLIPCLIP
-
713826-26GA0 CLAMPCLAMP
-
813853-38300 TUBE, BREATHERTUBE, BREATHER
-
909401-16401 CLIPCLIP
-
1013859-41B10 PLUGPLUG
-
1109401-14101 CLIPCLIP
-
1202142-0512A SCREWSCREW
-
1313827-38300 CLAMPCLAMP
-
1401580-0616A BOLTBOLT
-
1501580-0640A BOLTBOLT
-
1613650-52G00 SENSOR, INLET AIR TEMPSENSOR, INLET AIR TEMP
