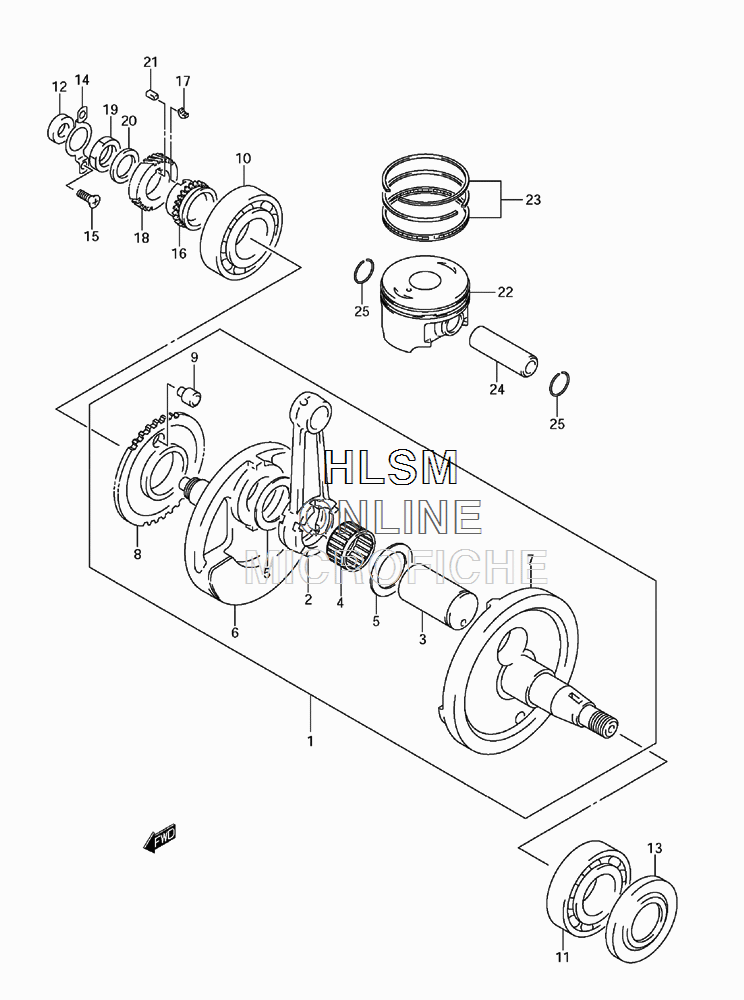

CRANKSHAFT W/ PISTON для Suzuki TU250X K9 - 2009 года выпуска

№

Артикул

Название
1

12200-26G11 CRANKSHAFT ASSY (INC 2-9)

CRANKSHAFT ASSY (INC 2-9)
2

12161-38201 CONNROD

CONNROD
3

12211-38211 PIN, CRANK

PIN, CRANK
4

09263-31012-0B0 BEARING, CRANK PIN

BEARING, CRANK PIN
5

09160-31002 WASHER

WASHER
6

12221-26G10 CRANKSHAFT, RIGHT HAND

CRANKSHAFT, RIGHT HAND
7

12261-26G10 CRANKSHAFT, LEFT HAND

CRANKSHAFT, LEFT HAND
8

12661-38202 GEAR, CRANK BALANCER DRIVE

GEAR, CRANK BALANCER DRIVE
9

09209-12006 PIN

PIN
10

09262-30077 BEARING, CRANKSHAFT RIGHT HAND

BEARING, CRANKSHAFT RIGHT HAND
11

09262-35028 BEARING, CRANKSHAFT LEFT HAND

BEARING, CRANKSHAFT LEFT HAND
12

09282-14001 SEAL, CRANKSHAFT OIL RIGHT HAND

SEAL, CRANKSHAFT OIL RIGHT HAND
13

12521-38300 WASHER

WASHER
14

12548-38200 RETAINER

RETAINER
15

02122-0510B SCREW

SCREW
16

12731-26G00 SPROCKET, CAM CHAIN DRIVE

SPROCKET, CAM CHAIN DRIVE
17

12749-32400 SPROCKET, KEY

SPROCKET, KEY
18

21111-38200 GEAR, PRIMARY DRIVE

GEAR, PRIMARY DRIVE
19

09140-20008 NUT

NUT
20

09164-20003 WASHER

WASHER
21

09421-07002 KEY

KEY
22

12111-26G00-0F0 PISTON

PISTON
23

12140-49280 RING SET, PISTON

RING SET, PISTON
24

12151-15501 PIN

PIN
25

09381-18002 CIRCLIP

CIRCLIP
