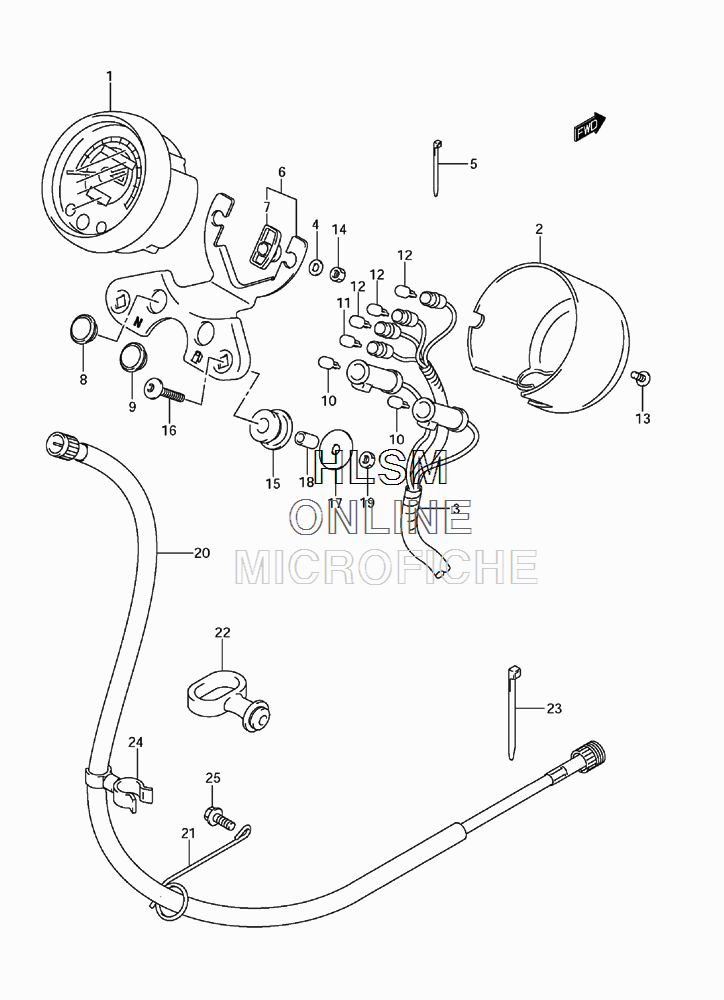

SPEEDOMETER для Suzuki TU250X K9 - 2009 года выпуска

№

Артикул

Название
1

34110-26G50 SPEEDOMETER

SPEEDOMETER
2

34111-25D00 COVER, UNDER

COVER, UNDER
3

34170-26G30 CORD ASSY

CORD ASSY
4

34181-45C10 WASHER

WASHER
5

34192-92E00 BAND

BAND
6

34950-26G30 BRACKET ASSY (INC 7)

BRACKET ASSY (INC 7)
7

34191-25D00 CUSHION, DAMPER

CUSHION, DAMPER
8

36321-13G00 LENS (GREEN)

LENS (GREEN)
9

36331-13GA0 LENS (ORANGE)

LENS (ORANGE)
10

09471-12028 BULB (12V,3.4W)

BULB (12V,3.4W)
11

09471-12103 BULB (12V3.4W)

BULB (12V3.4W)
12

09471-12108 BULB (12V1.7W)

BULB (12V1.7W)
13

03541-14128 SCREW

SCREW
14

08310-11058 NUT

NUT
15

34956-31001 CUSHION, SPEEDOMETER

CUSHION, SPEEDOMETER
16

09107-06003 BOLT (6X30)

BOLT (6X30)
17

09160-06136 WASHER (6.5X28X1.6)

WASHER (6.5X28X1.6)
18

09180-06294 SPACER (6.5X10X15.7)

SPACER (6.5X10X15.7)
19

08310-0006B NUT

NUT
20

34910-26G01 CABLE ASSY, SPEEDOMETER

CABLE ASSY, SPEEDOMETER
21

34938-37000 GUIDE, METER CABLE

GUIDE, METER CABLE
22

58621-21204 GUIDE, METER CABLE

GUIDE, METER CABLE
23

09407-14407 CLAMP (L:145)

CLAMP (L:145)
24

09408-00119 CLAMP, CABLE AND BRAKE HOSE

CLAMP, CABLE AND BRAKE HOSE
25

01550-0612B BOLT, CABLE GUIDE

BOLT, CABLE GUIDE
