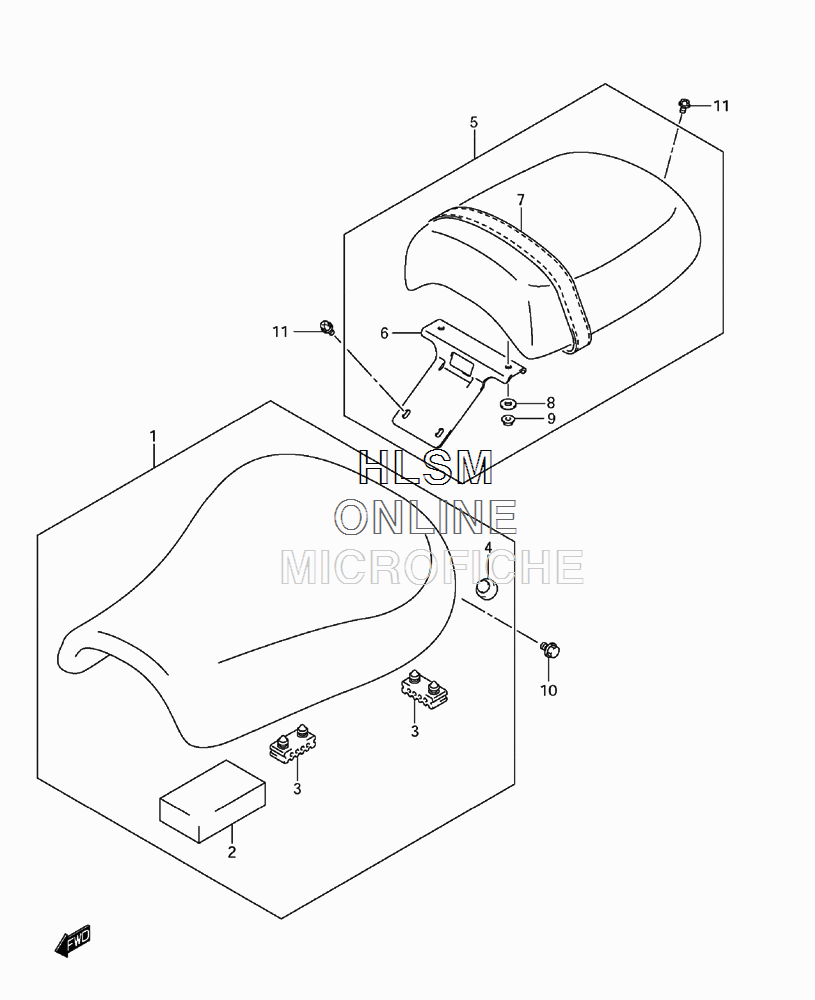

SEAT для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
145100-26G10-58P SEAT ASSY (BLACK) (INC 2-4)SEAT ASSY (BLACK) (INC 2-4)
-
245149-26G00 CUSHION, TOOLCUSHION, TOOL
-
345149-31300 CUSHION, FRONTCUSHION, FRONT
-
409321-10012 CUSHION, REARCUSHION, REAR
-
545300-26G00-9MG SEAT ASSY, PILLION (INC 6-9)SEAT ASSY, PILLION (INC 6-9)
-
645316-26G00 PLATE, FRONTPLATE, FRONT
-
745381-26G00 BAND, SEAT GRIPBAND, SEAT GRIP
-
809160-06084 WASHERWASHER
-
908316-1006B NUTNUT
-
1001550-0812B BOLTBOLT
-
1102162-0612B BOLTBOLT
