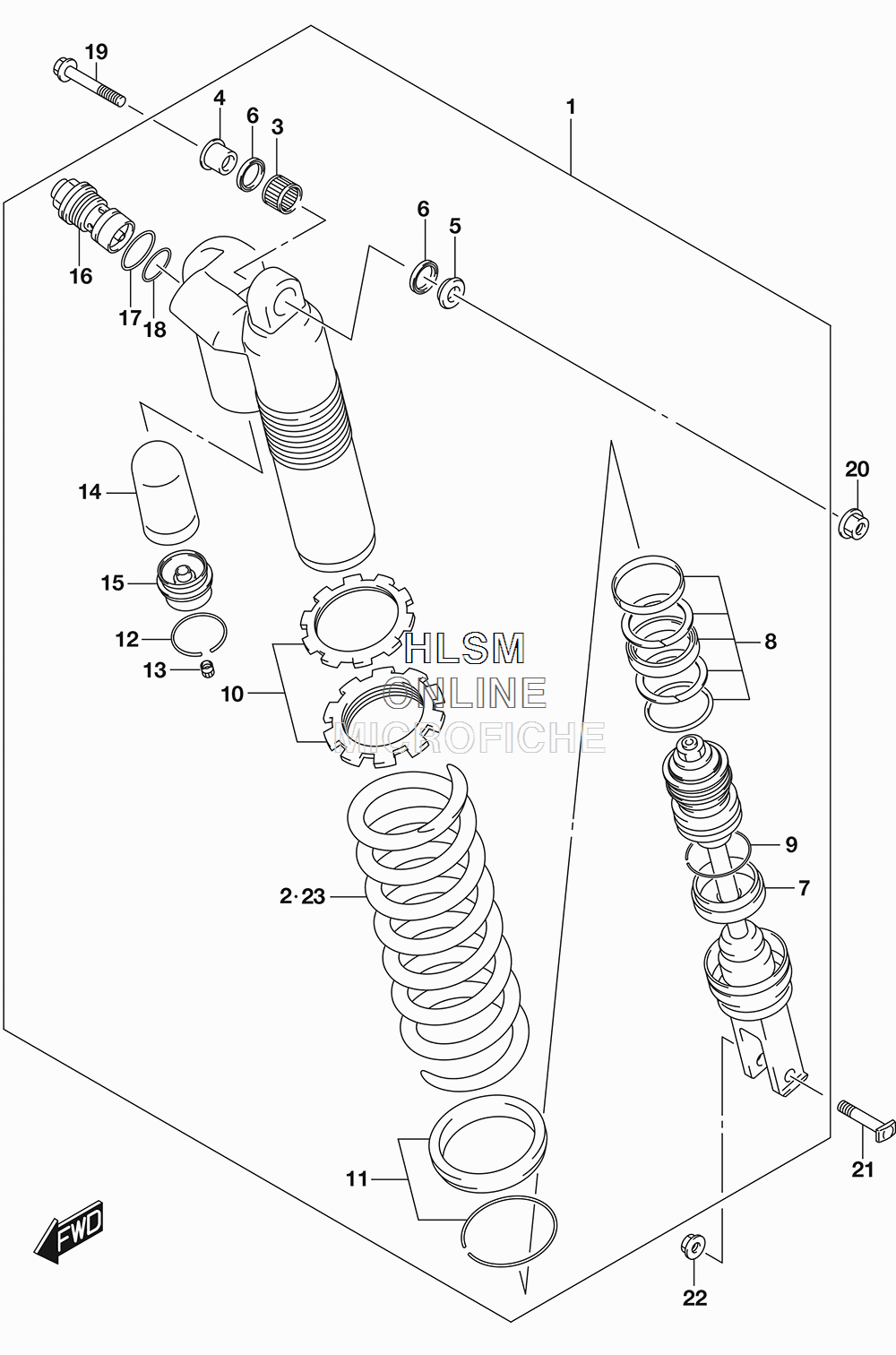

SUSPENSION - SHOCKS REAR для Suzuki RM-X450ZL7 - 2017 года выпуска

№

Артикул

Название
1

62100-02J40-019 ABSORBER ASSY, REAR SHOCK (019 - BLACK)

ABSORBER ASSY, REAR SHOCK (019 - BLACK)
2

62211-37FL0 ...SPRING (K=5.5)

...SPRING (K=5.5)
3

09263-16033 ...BEARING (16X22X12)

...BEARING (16X22X12)
4

62684-36F00 ...SPACER, BEARING (RH)

...SPACER, BEARING (RH)
5

62685-36F00 ...SPACER, BEARING (LH)

...SPACER, BEARING (LH)
6

09284-16005 ...OIL SEAL (16X22X2.5) (RH)

...OIL SEAL (16X22X2.5) (RH)
7

62120-02J00 ...ROD, PISTON

...ROD, PISTON
8

62150-36EB0 ...O RING SET

...O RING SET
9

62279-36E80 ...RING, STOPPER

...RING, STOPPER
10

62190-36F00 ...ADJUSTER SET

...ADJUSTER SET
11

62220-36F00 ...SPRING SEAT SET

...SPRING SEAT SET
12

62278-36E00 ...RING, STOPPER

...RING, STOPPER
13

52194-46686 ...CAP, AIR VALVE

...CAP, AIR VALVE
14

62273-36E00 ...BLADDER

...BLADDER
15

62275-28H30 ...CAP, CHAMBER

...CAP, CHAMBER
16

62130-02J00 ...BOLT, PLUG

...BOLT, PLUG
17

62131-28E00 ...O RING

...O RING
18

51174-36EB0 ...O RING

...O RING
19

62311-28H00 BOLT

BOLT
20

09159-10115 NUT

NUT
21

62221-37F30 BOLT

BOLT
22

09159-10067 NUT

NUT
23-1

62211-37FJ0 SPRING (K=5.1) (SOFT) (OPT)

SPRING (K=5.1) (SOFT) (OPT)
23-2

62211-37FK0 SPRING (K=5.3) (SOFT) (OPT)

SPRING (K=5.3) (SOFT) (OPT)
23-3

62211-35G30 SPRING (K=5.7) (HARD) (OPT)

SPRING (K=5.7) (HARD) (OPT)
23-4

62211-35G40 SPRING (K=5.9) (HARD) (OPT)

SPRING (K=5.9) (HARD) (OPT)
