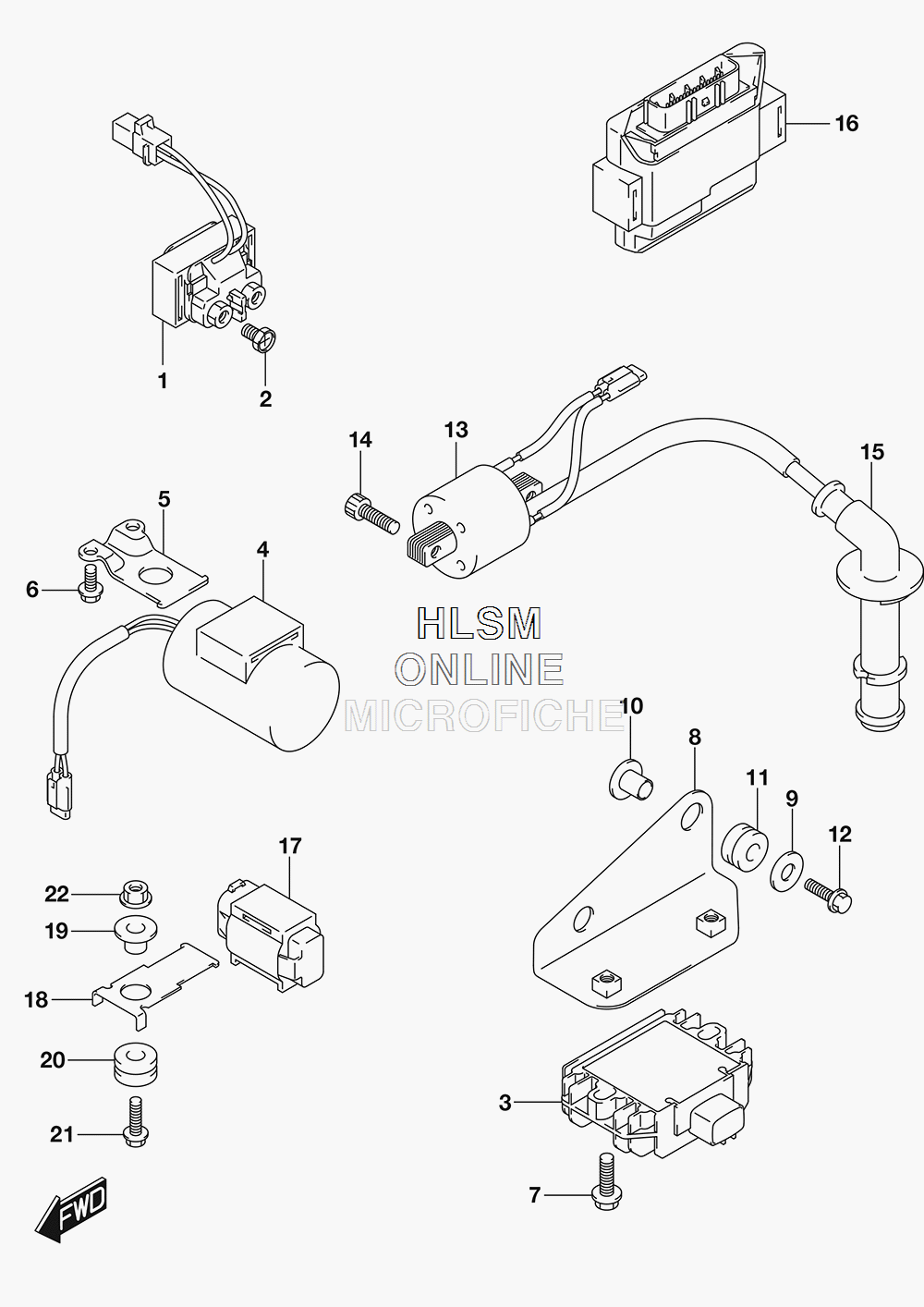

ELECTRICAL для Suzuki RM-X450ZL7 - 2017 года выпуска

№

Артикул

Название
1

31800-03H00 RELAY ASSY, STARTING MOTOR

RELAY ASSY, STARTING MOTOR
2

09128-06013 SCREW (6X8)

SCREW (6X8)
3

32800-05G11 RECTIFIER ASSY

RECTIFIER ASSY
4

33640-28H00 CONDENSER ASSY

CONDENSER ASSY
5

33641-28H00 BRACKET, CONDENSER

BRACKET, CONDENSER
6

09103-06188 BOLT (6X10)

BOLT (6X10)
7

02162-0620C BOLT

BOLT
8

32830-02J00 BRACKET, RECT FTG

BRACKET, RECT FTG
9

09160-06109 WASHER (6.5X18X1.6)

WASHER (6.5X18X1.6)
10

09180-06325 SPACER (6.2X8.4X6.9)

SPACER (6.2X8.4X6.9)
11

09320-08066 CUSHION

CUSHION
12

02162-0620C SCREW

SCREW
13

33410-35G10 COIL ASSY, IGNITION

COIL ASSY, IGNITION
14

07130-0620A BOLT

BOLT
15

33510-28H00 CAP ASSY, SPARK PLUG

CAP ASSY, SPARK PLUG
16

32920-02J30 CONTROL UNIT, FI

CONTROL UNIT, FI
17

33960-06G10 SENSOR ASSY, FUEL CUT

SENSOR ASSY, FUEL CUT
18

33961-28H10 BRACKET, FUEL CUT SENSOR

BRACKET, FUEL CUT SENSOR
19

09180-06331 SPACER (6.2X8.4X10.9)

SPACER (6.2X8.4X10.9)
20

09320-08501 CUSHION

CUSHION
21

01547-0620A BOLT

BOLT
22

08316-1006A NUT

NUT
