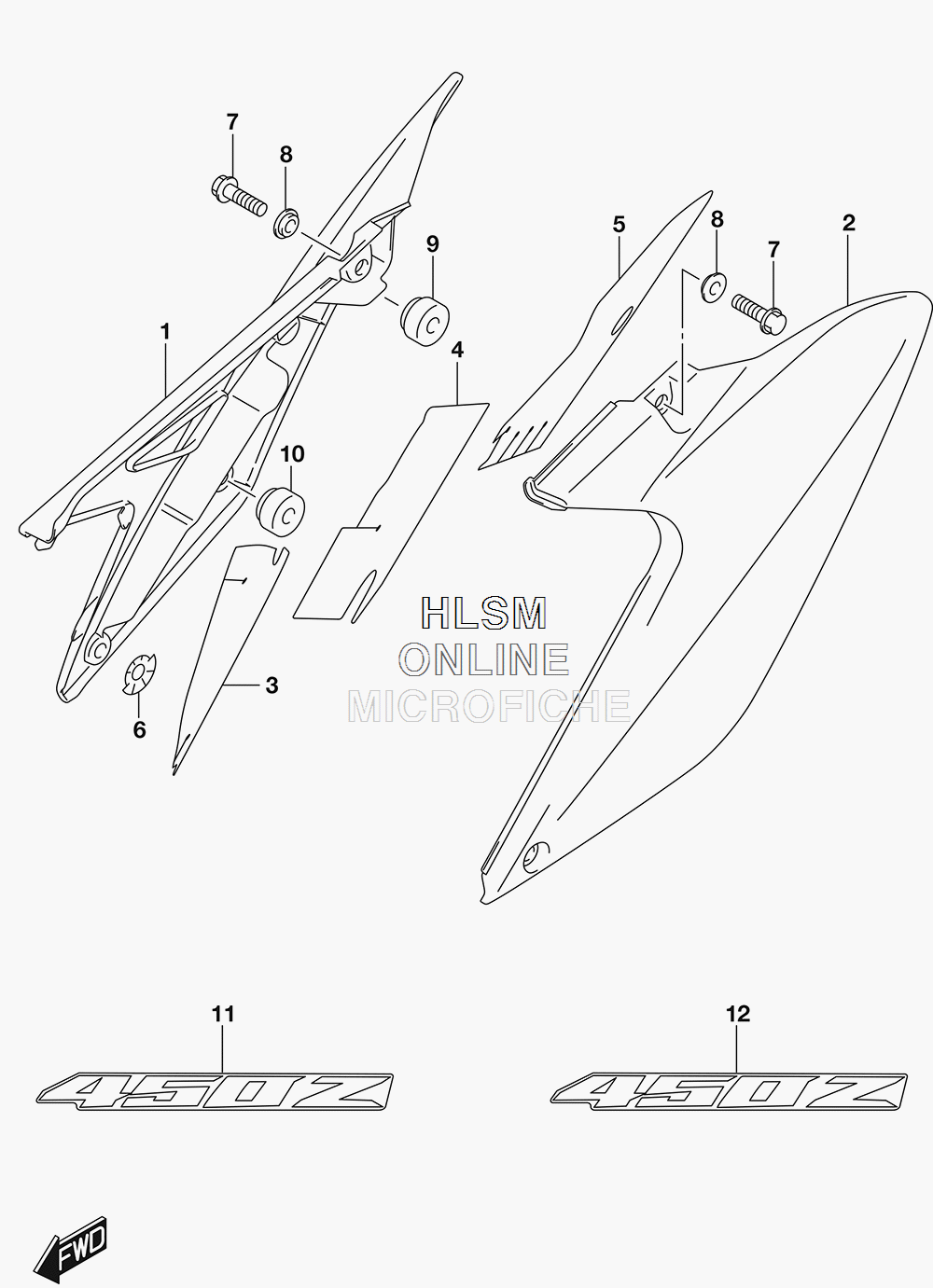

SIDE COVER для Suzuki RM-X450ZL7 - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-02J00-019 COVER, FRAME (RH) (019 - BLACK)
    COVER, FRAME (RH) (019 - BLACK)
  • 2
    47211-02J00-019 COVER, FRAME (LH) (019 - BLACK)
    COVER, FRAME (LH) (019 - BLACK)
  • 3
    47166-02J00 SHIELD, COVER NO.1 (RH)
    SHIELD, COVER NO.1 (RH)
  • 4
    47167-02J00 SHIELD, COVER NO.2 (RH)
    SHIELD, COVER NO.2 (RH)
  • 5
    47168-02J00 SHIELD, COVER NO.3 (RH)
    SHIELD, COVER NO.3 (RH)
  • 6
    47169-02J00 SHIELD, COVER NO.4 (RH)
    SHIELD, COVER NO.4 (RH)
  • 7
    01547-0620A BOLT
    BOLT
  • 8
    47191-02J00 WASHER
    WASHER
  • 9
    47161-08G00 CUSHION, (RH)
    CUSHION, (RH)
  • 10
    09321-10040 CUSHION (RH)
    CUSHION (RH)
  • 11
    68135-02J00-NN3 TAPE, FRAME COVER (RH) (NN3 - BLACK/ORANGE/YELLOW)
    TAPE, FRAME COVER (RH) (NN3 - BLACK/ORANGE/YELLOW)
  • 12
    68145-02J00-NN3 TAPE, FRAME COVER (LH) (NN3 - BLACK/ORANGE/YELLOW)
    TAPE, FRAME COVER (LH) (NN3 - BLACK/ORANGE/YELLOW)
