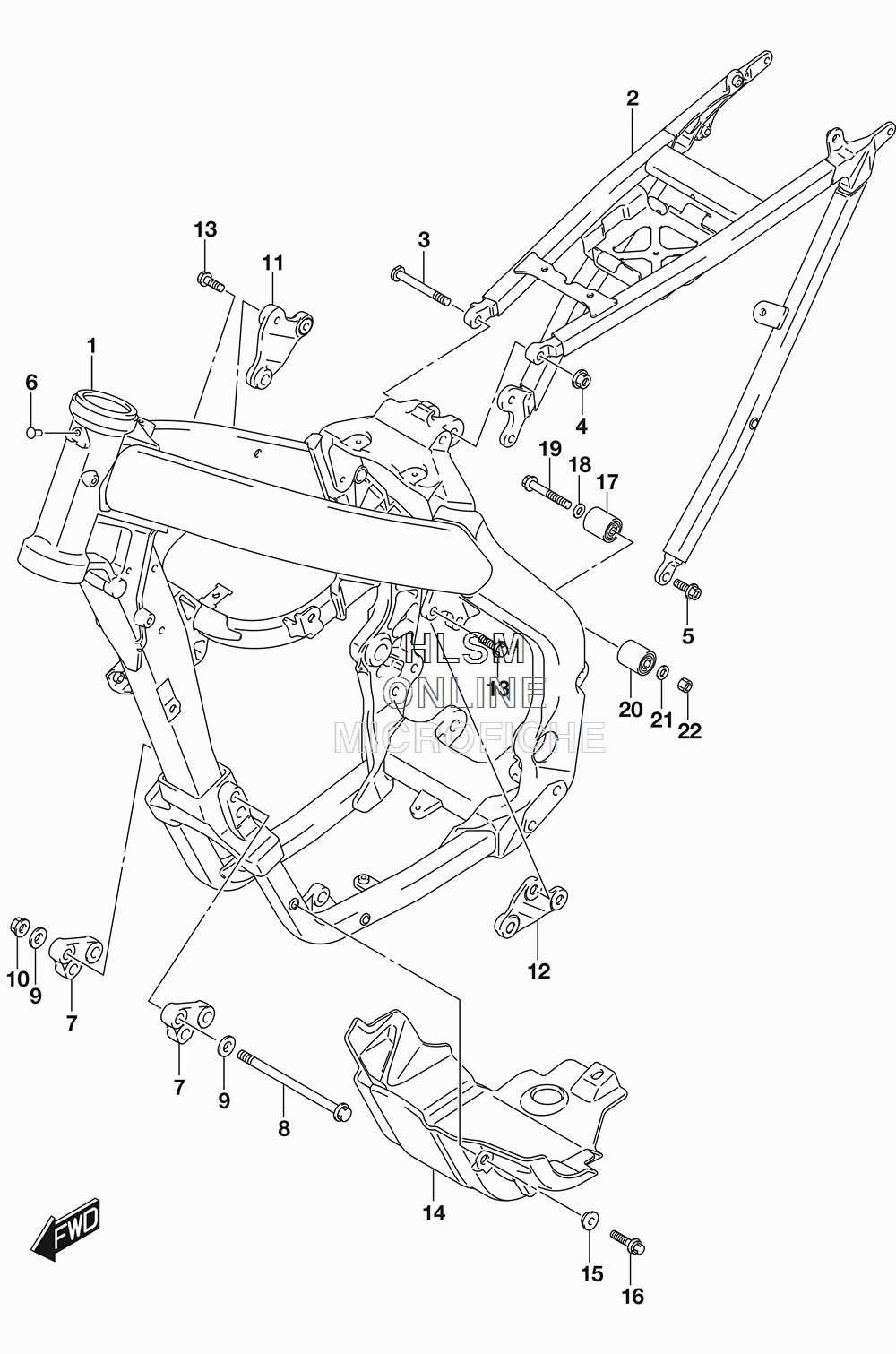

FRAME для Suzuki RM-X450ZL7 - 2017 года выпуска

№

Артикул

Название
1

41100-02J00 FRAME

FRAME
2

41200-02J00 RAIL, SEAT

RAIL, SEAT
3

41311-28H20 BOLT, UPPER

BOLT, UPPER
4

08319-3108A NUT

NUT
5

09103-08426 BOLT (8X20) (LOWER)

BOLT (8X20) (LOWER)
6

09250-05009 CAP (OD:10)

CAP (OD:10)
7

41991-02J00 BRACKET, ENGINE MOUNT FRONT

BRACKET, ENGINE MOUNT FRONT
8

09103-10388 BOLT (10X120) (FRONT)

BOLT (10X120) (FRONT)
9

09160-10039 WASHER (10.5X22X2.3)

WASHER (10.5X22X2.3)
10

09159-10115 NUT

NUT
11

41993-28H10 BRACKET, ENGINE MOUNT UPPER RIGHT

BRACKET, ENGINE MOUNT UPPER RIGHT
12

41994-02J10 BRACKET, ENGINE MOUNT UPPER LEFT

BRACKET, ENGINE MOUNT UPPER LEFT
13

09103-08404 BOLT (8X21) (UPPER)

BOLT (8X21) (UPPER)
14

42511-02J00 PROTECTOR, FRONT

PROTECTOR, FRONT
15

42514-02J00 WASHER

WASHER
16

09116-06177 BOLT (6X25)

BOLT (6X25)
17

43910-37F00 ROLLER, CHAIN UPPER

ROLLER, CHAIN UPPER
18

09181-08167 SHIM (8X16X1)

SHIM (8X16X1)
19

09103-08207 BOLT (8X45)

BOLT (8X45)
20

43910-35G00 ROLLER, CHAIN LOWER

ROLLER, CHAIN LOWER
21

09181-08111 SHIM (8X12X1)

SHIM (8X12X1)
22

08319-2108A NUT

NUT
