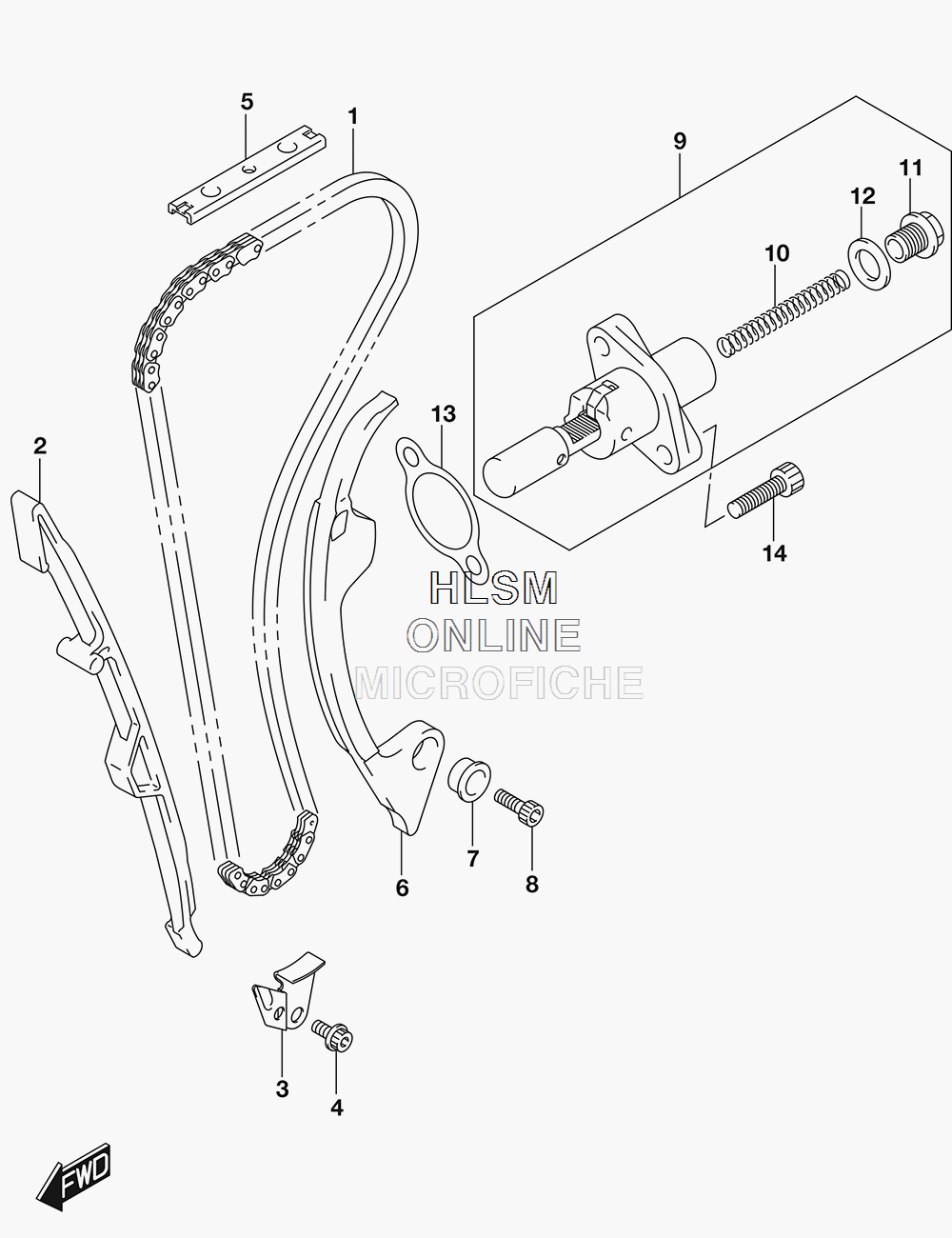

CAM CHAIN ASSY. W/ TENSIONER для Suzuki RM-X450ZL7 - 2017 года выпуска
-
№АртикулНазвание
-
112760-35G00 CHAIN, CAM SHAFT DRIVE (82RH2010-124M)CHAIN, CAM SHAFT DRIVE (82RH2010-124M)
-
212771-28H00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312773-28H10 RETAINER CAM CHAIN GUIDE NO.1RETAINER CAM CHAIN GUIDE NO.1
-
407120-0610A BOLTBOLT
-
512782-35G00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
612811-02J00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
712812-35G00 SPACERSPACER
-
807130-0616A BOLTBOLT
-
912830-35G10 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
1012831-39F00 ...SPRING...SPRING
-
1112833-05A00 ...PLUG...PLUG
-
1212837-24F10 ...GASKET...GASKET
-
1312837-24A10 GASKET, ADJUSTERGASKET, ADJUSTER
-
1407130-0625A BOLTBOLT
