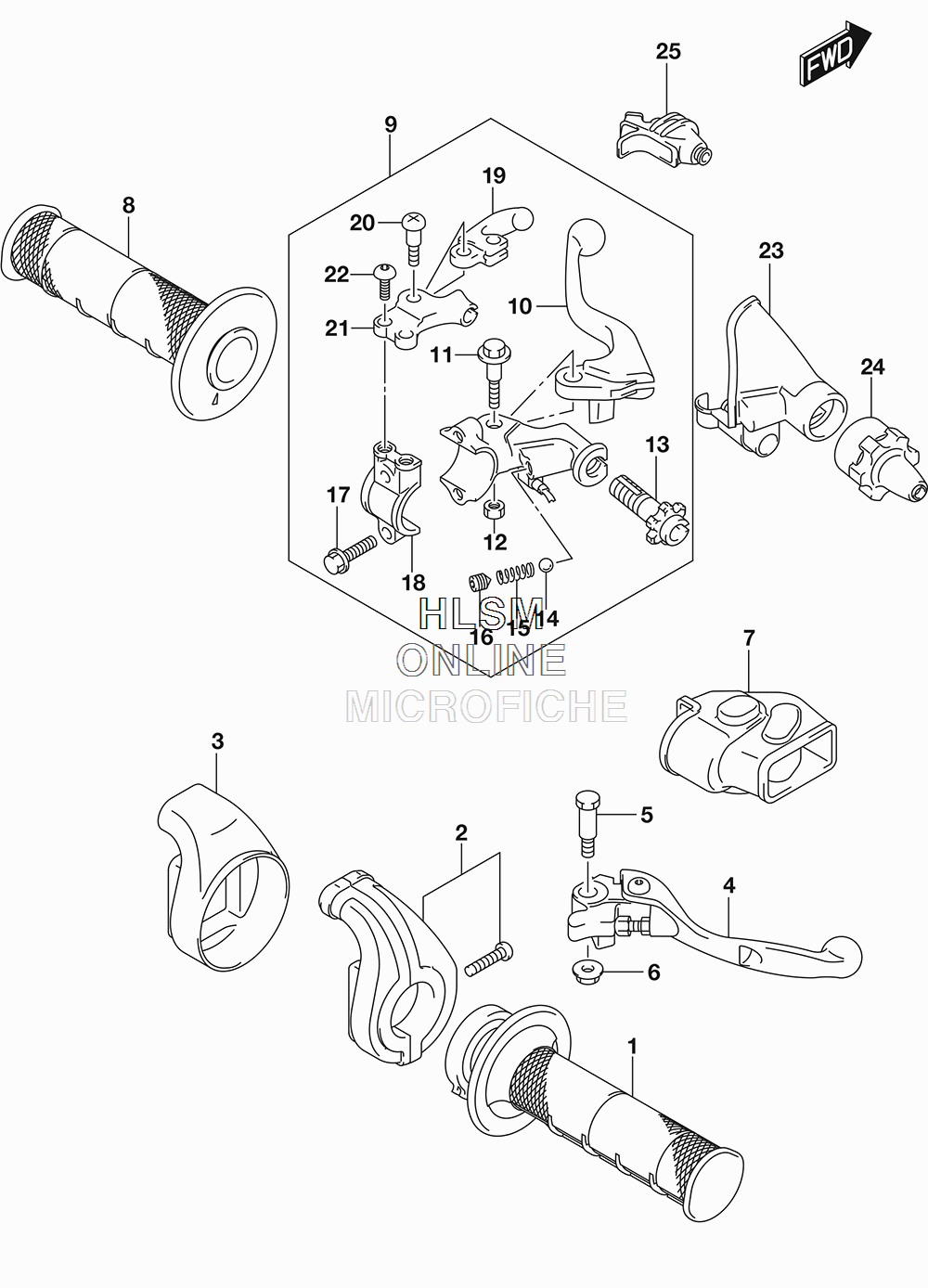

HANDLE LEVER для Suzuki RM-X450ZL7 - 2017 года выпуска`
-
№АртикулНазвание
-
157110-28H00 GRIP, THROTTLEGRIP, THROTTLE
-
257100-10H00 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
357129-35G00 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
457310-37F00 LEVER, BRAKELEVER, BRAKE
-
557431-14500 BOLT, PIVOTBOLT, PIVOT
-
608316-1006B NUTNUT
-
757343-35G00 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
857211-28H00 GRIP (LH)GRIP (LH)
-
957500-02J00 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1057620-02J00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1157431-35G00 ...BOLT, PIVOT...BOLT, PIVOT
-
1208319-2105A ...NUT...NUT
-
1357441-45G00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
1406111-06003 ...BALL...BALL
-
1509440-04003 ...SPRING...SPRING
-
1609134-06009 ...SCREW (6X8)...SCREW (6X8)
-
1757513-29F10 ...BOLT, BRACKET...BOLT, BRACKET
-
1857512-35G00 ...HOLDER...HOLDER
-
1957515-35G00 ...LEVER, HOT START...LEVER, HOT START
-
2057517-35G00 ...SCREW...SCREW
-
2157514-35G00 ...HOLDER, LEVER...HOLDER, LEVER
-
2209139-05083 ...SCREW (5X12)...SCREW (5X12)
-
2357341-02J00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
-
2457342-37F00 COVER, CLUTCH ADJUSTERCOVER, CLUTCH ADJUSTER
-
2557516-35G00 COVER, HOT STARTER LEVERCOVER, HOT STARTER LEVER
