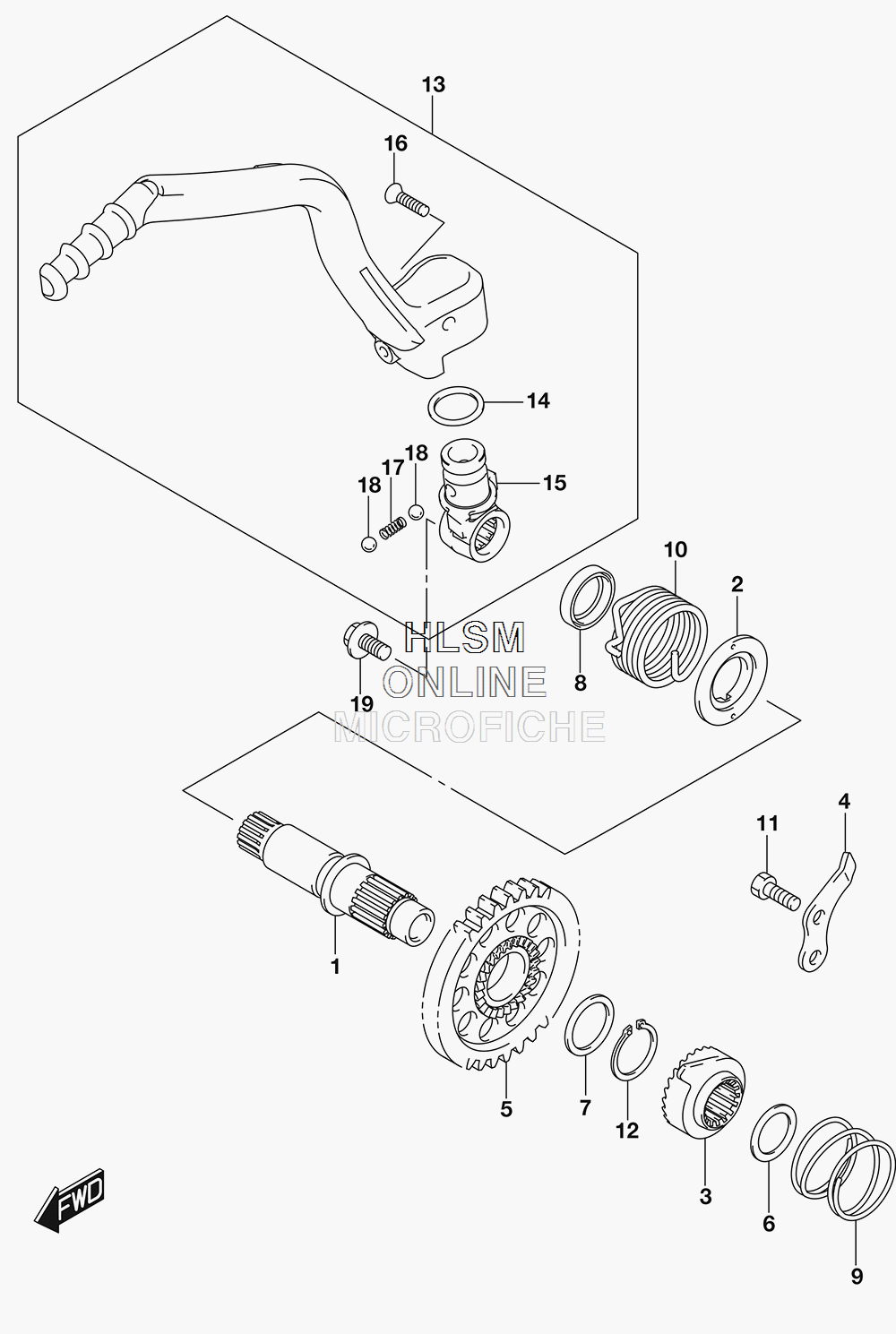

KICK STARTER для Suzuki RM-X450ZL7 - 2017 года выпуска

№

Артикул

Название
1

26211-28H00 SHAFT, KICK STARTER

SHAFT, KICK STARTER
2

26221-35G00 GUIDE, KICK STARTER SFT SPRING

GUIDE, KICK STARTER SFT SPRING
3

26231-28H00 STARTER, KICK

STARTER, KICK
4

26232-28H00 GUIDE, KICK STARTER

GUIDE, KICK STARTER
5

26240-35G00 GEAR, KICK STARTER DRIVE (NT:32)

GEAR, KICK STARTER DRIVE (NT:32)
6

09181-17130 SHIM (17X24X0.5)

SHIM (17X24X0.5)
7

09181-20139 SHIM (20X26X1)

SHIM (20X26X1)
8

09283-20031 OIL SEAL (20X27X5)

OIL SEAL (20X27X5)
9

09440-32002 SPRING

SPRING
10

09448-38007 SPRING

SPRING
11

01500-0612A BOLT

BOLT
12

08331-3120A CIRCLIP

CIRCLIP
13

26300-28H20 LEVER ASSY, KICK STARTER

LEVER ASSY, KICK STARTER
14

26313-28E20 ...O RING, KICK STARTER LEVER

...O RING, KICK STARTER LEVER
15

26331-28H20 ...JOINT, KICK STARTER LEVER

...JOINT, KICK STARTER LEVER
16

09127-06016 ...SCREW (6X27.5)

...SCREW (6X27.5)
17

09440-05031 ...SPRING

...SPRING
18

06111-07004 ...BALL

...BALL
19

09103-08522 BOLT (8X14)

BOLT (8X14)
