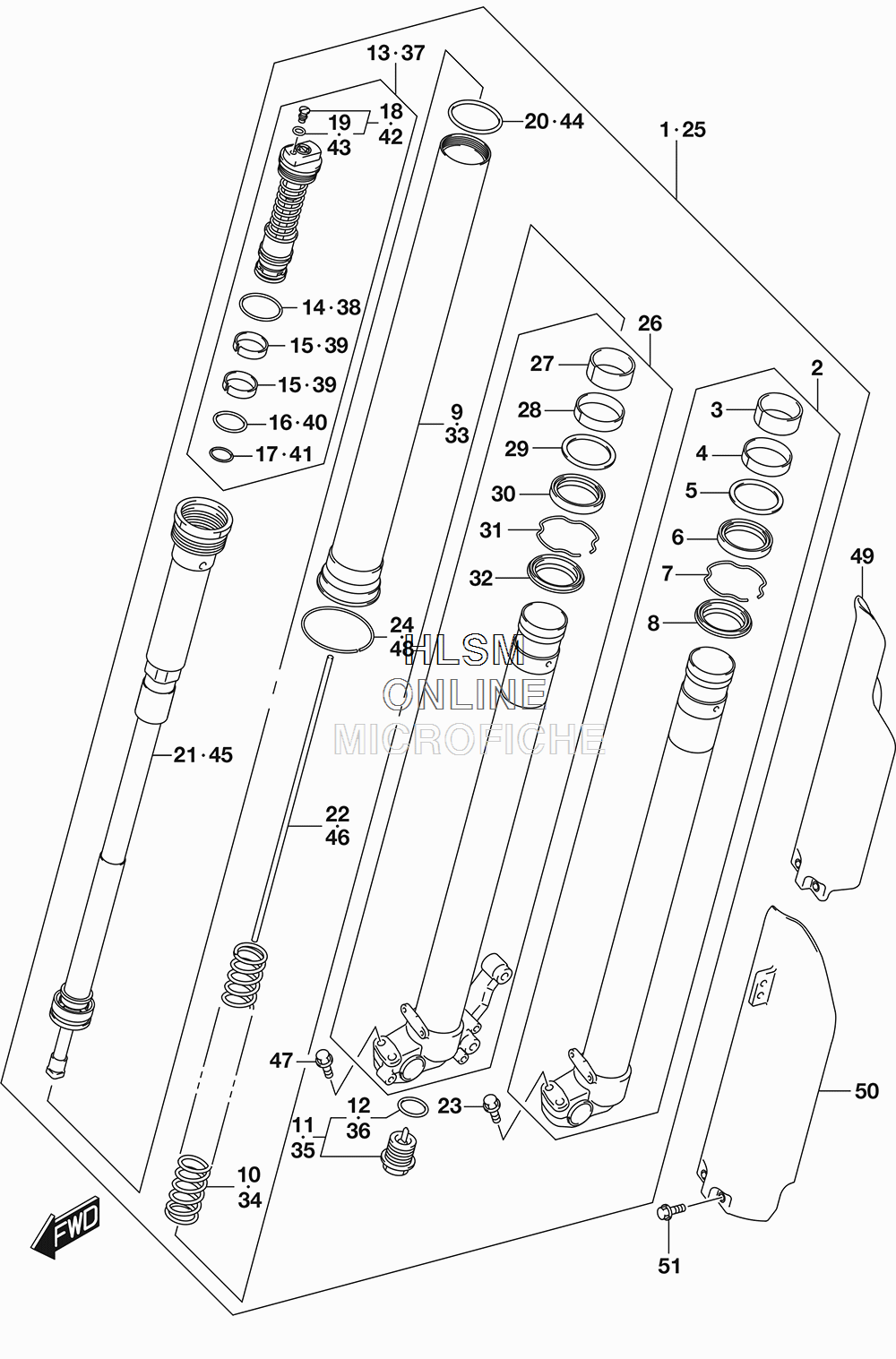

SUSPENSION - FRONT FORK DAMPER для Suzuki RM-X450ZL7 - 2017 года выпуска
-
№АртикулНазвание
-
151103-02J10 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251110-28H10 ...TUBE, INNER (RH)...TUBE, INNER (RH)
-
351121-28H10 ......BUSH, GUIDE......BUSH, GUIDE
-
451167-28H10 ......BUSH, GUIDE......BUSH, GUIDE
-
551158-36F00 ......SPACER, SEAL......SPACER, SEAL
-
651153-37F80 ......SEAL, OIL......SEAL, OIL
-
751156-27C40 ......RING, OIL SEAL STOPPER......RING, OIL SEAL STOPPER
-
851173-37F80 ......SEAL, DUST......SEAL, DUST
-
951130-28H01 ...TUBE, OUTER...TUBE, OUTER
-
10-151171-28H00 ...SPRING, FRONT (K=0.47) (STD)...SPRING, FRONT (K=0.47) (STD)
-
10-251171-28H10 ...SPRING, FRONT (K=0.45) (SOFT) (OPT)...SPRING, FRONT (K=0.45) (SOFT) (OPT)
-
10-351171-28H20 ...SPRING, FRONT (K=0.49) (HARD) (OPT)...SPRING, FRONT (K=0.49) (HARD) (OPT)
-
1151170-37FC0 ...BOLT, CENTER...BOLT, CENTER
-
1251177-36E20 ......O RING......O RING
-
1351351-02J10 ...BOLT, FORK...BOLT, FORK
-
1451117-37F80 ......O RING......O RING
-
1551123-28H10 ......BUSH, FORK BOLT SLIDE......BUSH, FORK BOLT SLIDE
-
1651174-36E40 ......O RING......O RING
-
1751175-37F80 ......O RING......O RING
-
1851357-36F20 ......BOLT, PLUG......BOLT, PLUG
-
1951358-28E30 .......O RING.......O RING
-
2051118-37F80 ...O RING...O RING
-
2151190-02J00 ...ROD, DAMPER...ROD, DAMPER
-
2251191-10H10 ...ROD, PUSH...ROD, PUSH
-
2351328-37F80 ...BOLT...BOLT
-
2451211-37FC0 ...RING STOPPER...RING STOPPER
-
2551104-02J10 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2651120-28H10 ...TUBE, INNER (LH)...TUBE, INNER (LH)
-
2751121-28H10 ......BUSH, GUIDE......BUSH, GUIDE
-
2851167-28H10 ......BUSH, GUIDE......BUSH, GUIDE
-
2951158-36F00 ......SPACER, SEAL......SPACER, SEAL
-
3051153-37F80 ......SEAL, OIL......SEAL, OIL
-
3151156-27C40 ......RING, OIL SEAL STOPPER......RING, OIL SEAL STOPPER
-
3251173-37F80 ......SEAL, DUST......SEAL, DUST
-
3351130-28H01 ...TUBE, OUTER...TUBE, OUTER
-
34-151171-28H00 ...SPRING, FRONT (K=0.47) (STD)...SPRING, FRONT (K=0.47) (STD)
-
34-251171-28H10 ...SPRING, FRONT (K=0.45) (SOFT) (OPT)...SPRING, FRONT (K=0.45) (SOFT) (OPT)
-
34-351171-28H20 ...SPRING, FRONT (K=0.49) (HARD) (OPT)...SPRING, FRONT (K=0.49) (HARD) (OPT)
-
3551170-37FC0 ...BOLT, CENTER...BOLT, CENTER
-
3651177-36E20 ......O RING......O RING
-
3751351-02J10 ...BOLT, FORK...BOLT, FORK
-
3851117-37F80 ......O RING......O RING
-
3951123-28H10 ......BUSH, FORK BOLT SLIDE......BUSH, FORK BOLT SLIDE
-
4051174-36E40 ......O RING......O RING
-
4151175-37F80 ......O RING......O RING
-
4251357-36F20 ......BOLT, PLUG......BOLT, PLUG
-
4351358-28E30 .......O RING.......O RING
-
4451118-37F80 ...O RING...O RING
-
4551190-02J00 ...ROD, DAMPER...ROD, DAMPER
-
4651191-10H10 ...ROD, PUSH...ROD, PUSH
-
4751328-37F80 ...BOLT...BOLT
-
4851211-37FC0 ...RING STOPPER...RING STOPPER
-
4951501-28H70 PROTECTOR, FRONT FORK (RH)PROTECTOR, FRONT FORK (RH)
-
5051510-28H70 PROTECTOR, FRONT FORK (LH)PROTECTOR, FRONT FORK (LH)
-
5109111-06098 BOLT (6X10)BOLT (6X10)
