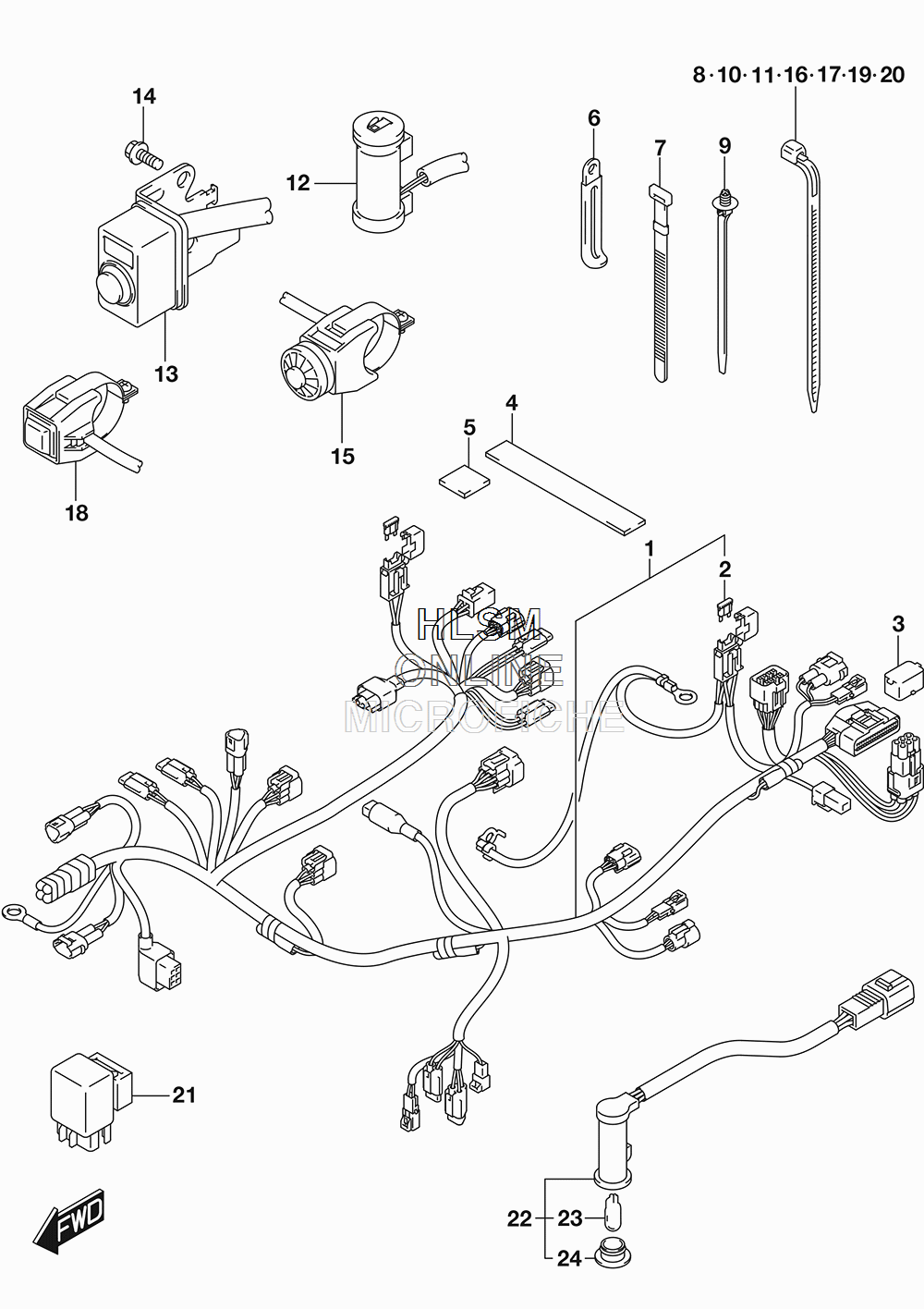

ELECTRICAL - WIRING HARNESS для Suzuki RM-X450ZL7 - 2017 года выпуска`
-
№АртикулНазвание
-
136610-02J20 HARNESS, WIRINGHARNESS, WIRING
-
209481-15101 ...FUSE (15A)...FUSE (15A)
-
336654-06J00 CAP, TSCAP, TS
-
436611-02J00 PROTECTOR (15X100X0.13)PROTECTOR (15X100X0.13)
-
544534-24F00 PROTECTOR (20X20X1)PROTECTOR (20X20X1)
-
609404-06435 CLAMP (L:135)CLAMP (L:135)
-
709407-10403 CLAMP (L:95)CLAMP (L:95)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
-
1009407-18402 CLAMP (L:165)CLAMP (L:165)
-
1109407-25401 CLAMP (L:235)CLAMP (L:235)
-
1236380-02J00 LAMP ASSY, FUELLAMP ASSY, FUEL
-
1337110-02J00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1401547-0612A BOLTBOLT
-
1537310-02J00 SWITCH ASSY, STARTER MOTORSWITCH ASSY, STARTER MOTOR
-
1609407-11401 CLAMP (L:95)CLAMP (L:95)
-
1709407-14403 CLAMP (L:125)CLAMP (L:125)
-
1837820-36E00 SWITCH ASSY, ENGINE STOPSWITCH ASSY, ENGINE STOP
-
1909407-11401 CLAMP (L:95)CLAMP (L:95)
-
2009407-14403 CLAMP (L:125)CLAMP (L:125)
-
2138740-39G00 RELAY ASSY, HEADLAMPRELAY ASSY, HEADLAMP
-
2236380-28H00 LAMP ASSY, FI INDICATOR (OPT)LAMP ASSY, FI INDICATOR (OPT)
-
2309471-12028 ...BULB (12V,3.4W) (OPT)...BULB (12V,3.4W) (OPT)
-
2436321-28H00 ...LENS (RED) (OPT)...LENS (RED) (OPT)
