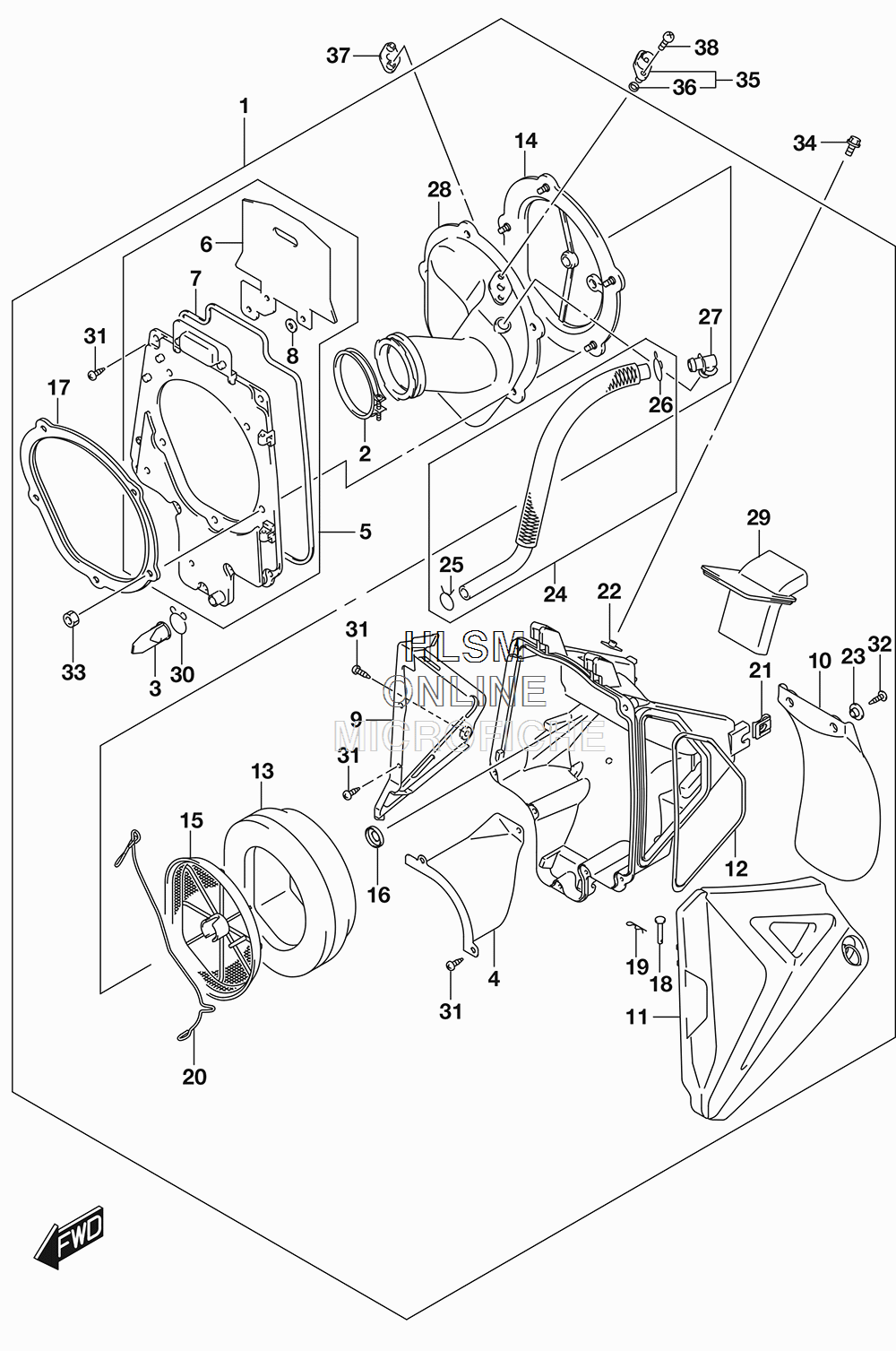

AIR CLEANER для Suzuki RM-X450ZL7 - 2017 года выпуска

№

Артикул

Название
1

13700-02J02-019 CLEANER ASSY, AIR (019 - BLACK)

CLEANER ASSY, AIR (019 - BLACK)
2

13170-25D01 ...CLAMP

...CLAMP
3

13681-19B00 ...CAP, DRAIN

...CAP, DRAIN
4

13719-02J00 ...PLATE, HEAT GUARD

...PLATE, HEAT GUARD
5

13721-02J00 ...CASE, AIR CLEANER FRONT

...CASE, AIR CLEANER FRONT
6

13749-02J00 ......COVER AIR CLEANER

......COVER AIR CLEANER
7

13756-02J00 ......GASKET, CASE

......GASKET, CASE
8

13832-02J00 ......NUT, PUSH

......NUT, PUSH
9

13723-02J00 ...COVER, SIDE RH

...COVER, SIDE RH
10

13738-36E01 ...MUD GUARD

...MUD GUARD
11

13740-02J01-YU1 ...CAP, AIR CLEANER (YU1 - YELLOW)

...CAP, AIR CLEANER (YU1 - YELLOW)
12

13757-02J00 ...GASKET, CASE

...GASKET, CASE
13

13780-02J00 ...FILTER ASSY

...FILTER ASSY
14

13790-02J00 ...BASE, FILTER

...BASE, FILTER
15

13791-02J00 ...HOLDER, FILTER

...HOLDER, FILTER
16

13796-44E00 ...SPACER

...SPACER
17

13797-02J00 ...PLATE, FILTER BASE

...PLATE, FILTER BASE
18

13822-02J00 ...PIN, HINGE

...PIN, HINGE
19

13823-02J00 ...PIN, SNAP

...PIN, SNAP
20

13825-02J00 ...SPRING

...SPRING
21

13835-02J01 ...RECEPTACLE

...RECEPTACLE
22

13836-12D00 ...NUT, AIR CLEANER

...NUT, AIR CLEANER
23

13838-02B00 ...COLLAR

...COLLAR
24

13850-02J00 ...TUBE, BREATHER

...TUBE, BREATHER
25

09401-13301 ......CLIP

......CLIP
26

09401-14101 ......CLIP

......CLIP
27

13858-14D20 ...JOINT, BREATHER TUBE

...JOINT, BREATHER TUBE
28

13881-02J00 ...TUBE, OUTLET

...TUBE, OUTLET
29

13891-02J00 ...TUBE, INLET

...TUBE, INLET
30

09401-17201 ...CLIP

...CLIP
31

03211-0516B ...SCREW

...SCREW
32

03541-0520B ...SCREW

...SCREW
33

08310-00057 ...NUT

...NUT
34

01547-0612A BOLT

BOLT
35

13650-14G10 SENSOR, AIR TEMP

SENSOR, AIR TEMP
36

13655-14G10 ...O RING

...O RING
37

13652-28H00 BRACKET

BRACKET
38

02112-0516A SCREW

SCREW
