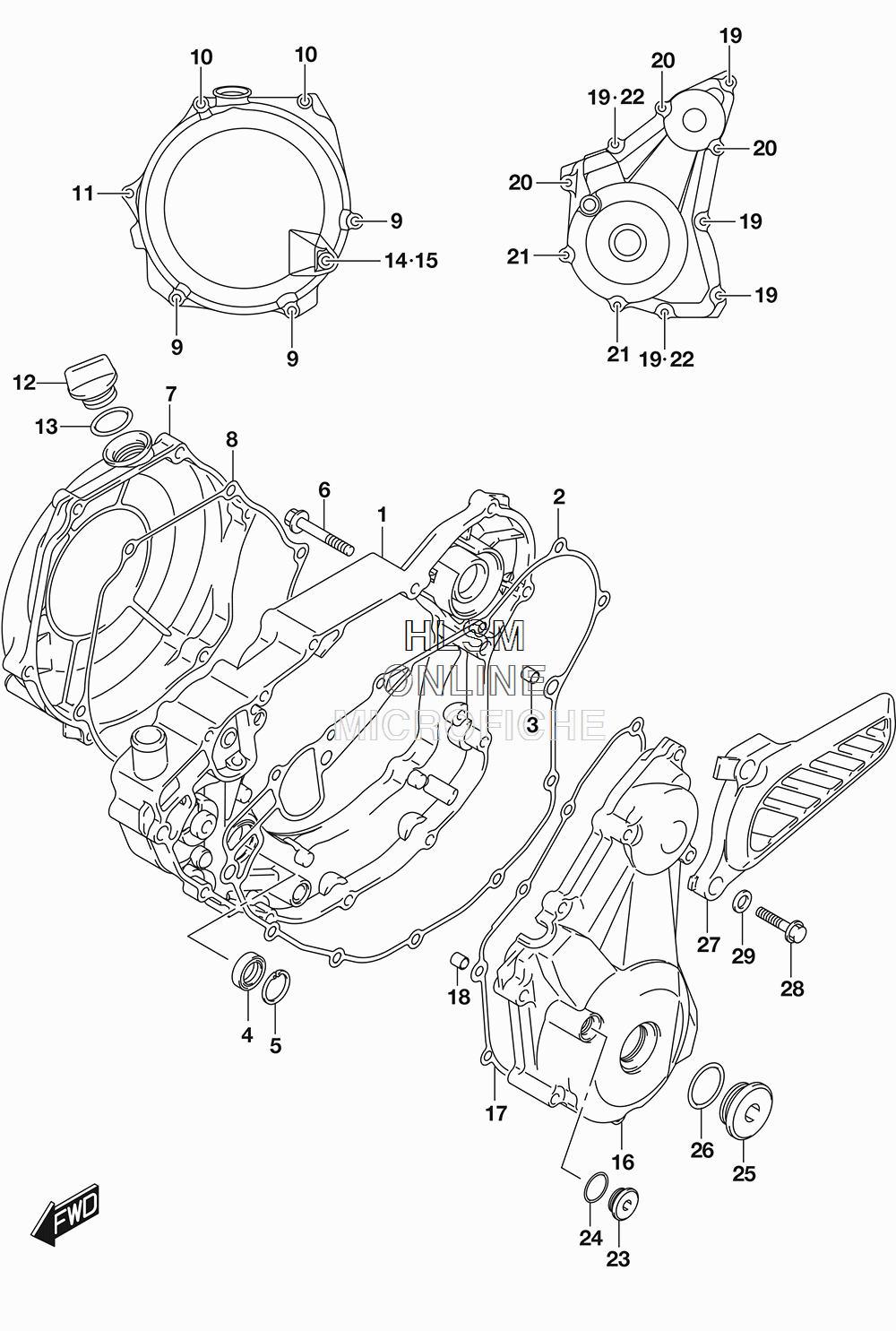

CRANKCASE COVER для Suzuki RM-X450ZL7 - 2017 года выпуска`
-
№АртикулНазвание
-
111340-28H10 COVER, CLUTCH INNERCOVER, CLUTCH INNER
-
211482-28H00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
304211-09149 PINPIN
-
409282-12012 OIL SEAL (12X22X6)OIL SEAL (12X22X6)
-
508331-41249 CIRCLIPCIRCLIP
-
601547-0625A BOLTBOLT
-
711371-02J00 COVER, CLUTCH OUTERCOVER, CLUTCH OUTER
-
811484-28H00 GASKET, CLUTCH COVER OUTERGASKET, CLUTCH COVER OUTER
-
901547-0625A BOLTBOLT
-
1001547-0665A BOLTBOLT
-
1101547-0670A BOLTBOLT
-
1209259-20008-XC0 PLUGPLUG
-
1309280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1409139-06055 SCREW (6X10)SCREW (6X10)
-
1509168-06004 GASKET (6.2X11X1.2)GASKET (6.2X11X1.2)
-
1611351-02J00 COVER, MAGNETOCOVER, MAGNETO
-
1711483-02J00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1804211-09149 PINPIN
-
1901547-0625A BOLTBOLT
-
2001547-0640A BOLTBOLT
-
2101547-0650A BOLTBOLT
-
2209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2309248-12007 PLUG (12X9)PLUG (12X9)
-
2409280-10016 O RING (D:1.9,ID:9.8)O RING (D:1.9,ID:9.8)
-
2509259-26011 PLUG (26X9)PLUG (26X9)
-
2609280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
2711360-02J00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2809103-06297 BOLT (6X30)BOLT (6X30)
-
2908322-0106A WASHERWASHER
